750-538

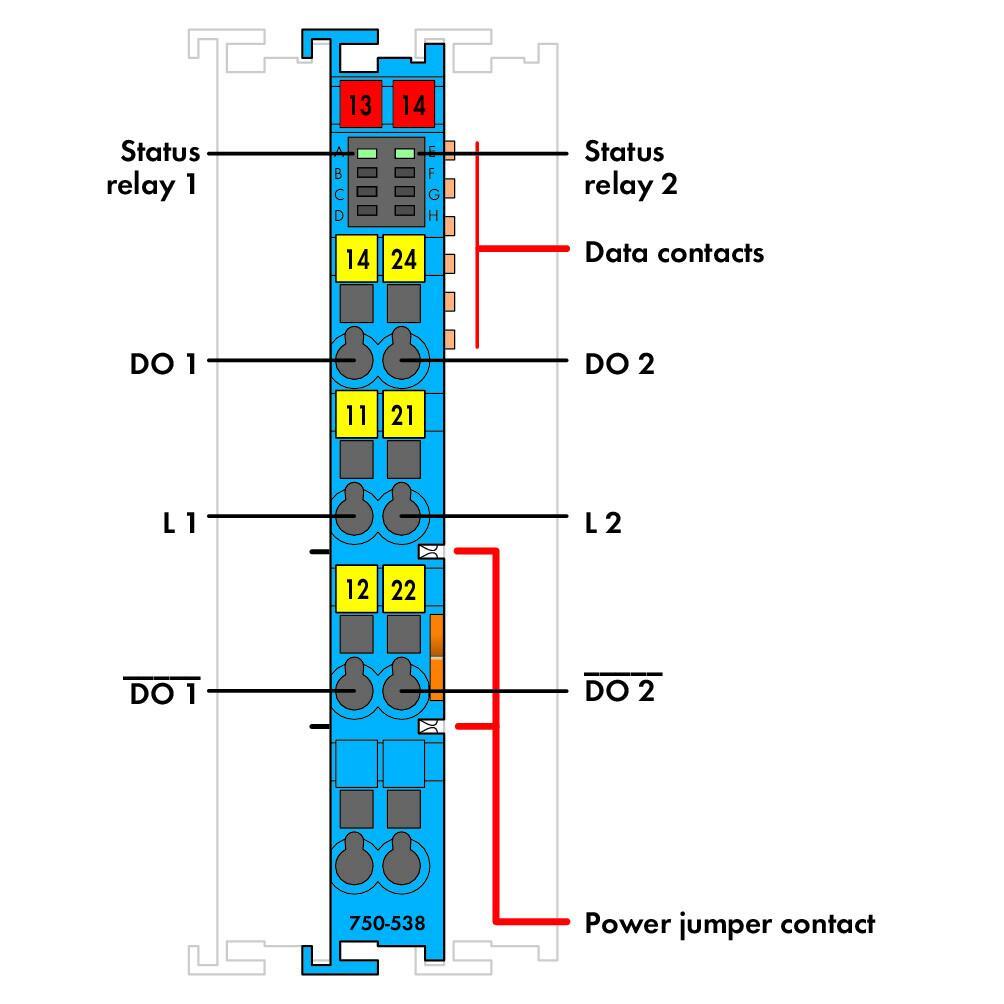

WAGO 750-538 2-channel relay output
Part Number # 750-538
SKU # 2276569
$654.37 / Each
Wago 750-538 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-538 |
| SKU #: | 2276569 |
| Color: | Blue |
| Connection technology: | 8 x CAGE CLAMP® |
| Contact material: | Ag alloy (with gold flash) |
| Country of origin: | DE |
| Depth: | 67.8 mm / 2.669 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Intrinsic safety Ex i: | Yes |
| Isolation: | 300 VAC system/field |
| Load type: | Resistive, inductive, lamp load |
| Marking: | ATEX, IECEx, Underwriters Laboratories Inc. |
| Mechanical switching operations (min.) (at max. resistive load): | 100 x 106 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Number of digital outputs: | 2 |
| Output characteristic: | Potential-free |
| Power consumption Pmax.: | 0.8 W |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching current (max.): | 0.5 A |
| Switching current (min.): | 0.01 mA |
| Switching frequency (max.): | 0.3 Hz |
| Switching power: | 50 VA / 30 W |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 49.100 g |
| Width: | 12 mm / 0.472 inch |
| UNSPSC: | 32151702 |
| UPC: | 04050821694823 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$654.37 / Each
Quantity:
WAGO 750-538 2-channel relay output
Brand: Wago
Part Number: 750-538
Additional Description: WAGO-750-538 2-CHANNEL RELAY OUTPUT; POTENTIAL-FREE; 2 CHANGEOVER CONTACTS; INTRINSICALLY SAFE; BLUE 7500538 CONTACTS; INTRINSICALLY SAFE; BLUE 07500538
Catalog Description: 2-channel relay output; Potential-free; 2 changeover contacts; Intrinsically safe
