Specifications
Brand: Wago
Amperage Rating: 70 mA
Dimensions: 3.937 in H x 0.472 in W x 2.748 in D
Series: 750
Temperature Rating (Degrees F): 0 to 55 deg C
Type: Analog
Voltage Rating: 24 VDC
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Material: Polycarbonate/Polyamide 6.6
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog outputs: 2
Number of outputs: 2
Protection type: IP20
Resolution: 12 bit
Signal type: Electricity
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 50.109 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454393601

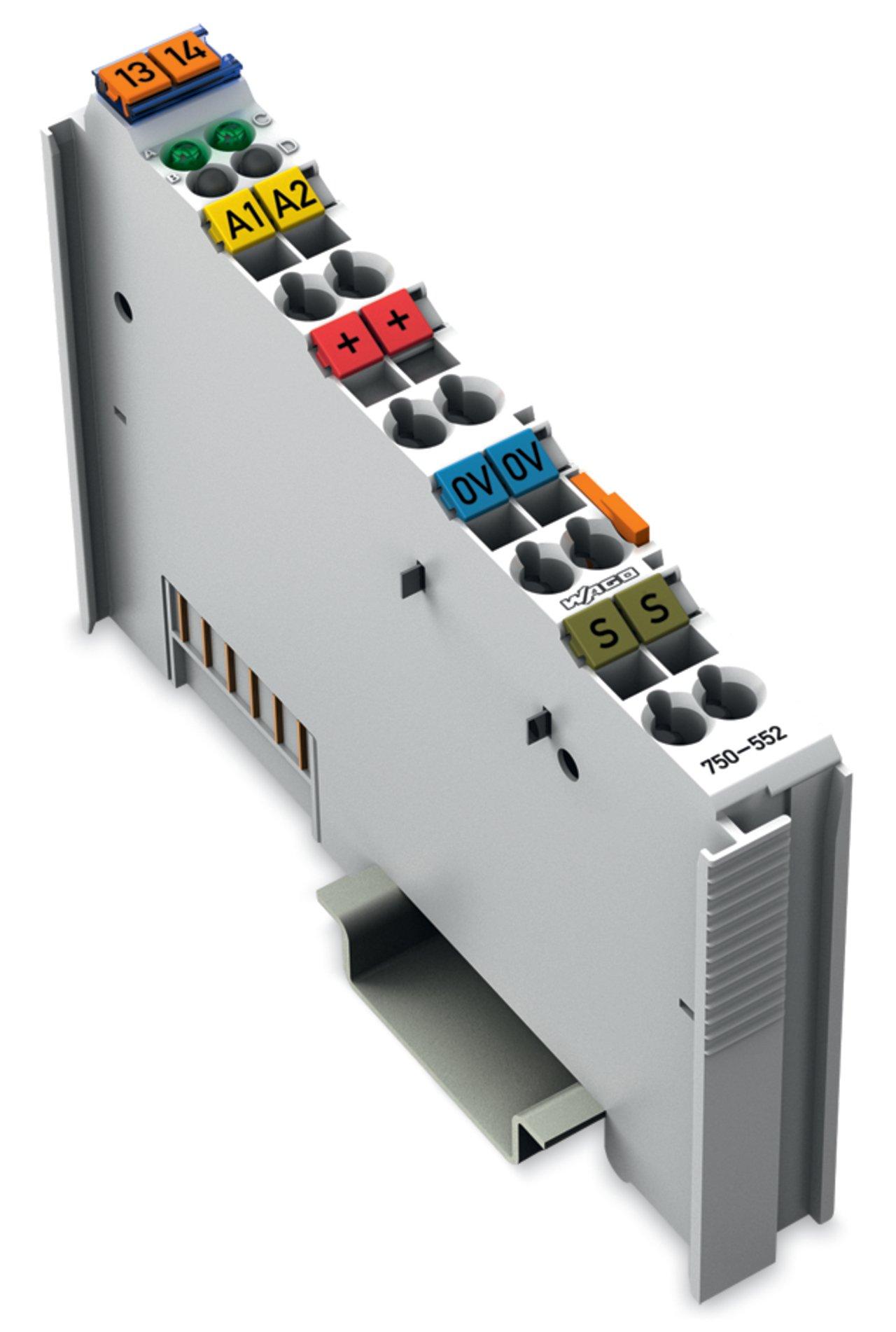

WAGO 750-552 2-channel analog output
Additional Description: WAGO-750-552 2-CHANNEL ANALOG OUTPUT; 0 20 MA; LIGHT GRAY 51180866 51180866
Catalog Description: 2-channel analog output; 0 … 20 mA
Item FeaturesRoHS Compliant
