Part Number # 750-564
SKU # 2376383
Image Disclaimers Message
Brand: Wago
750-564

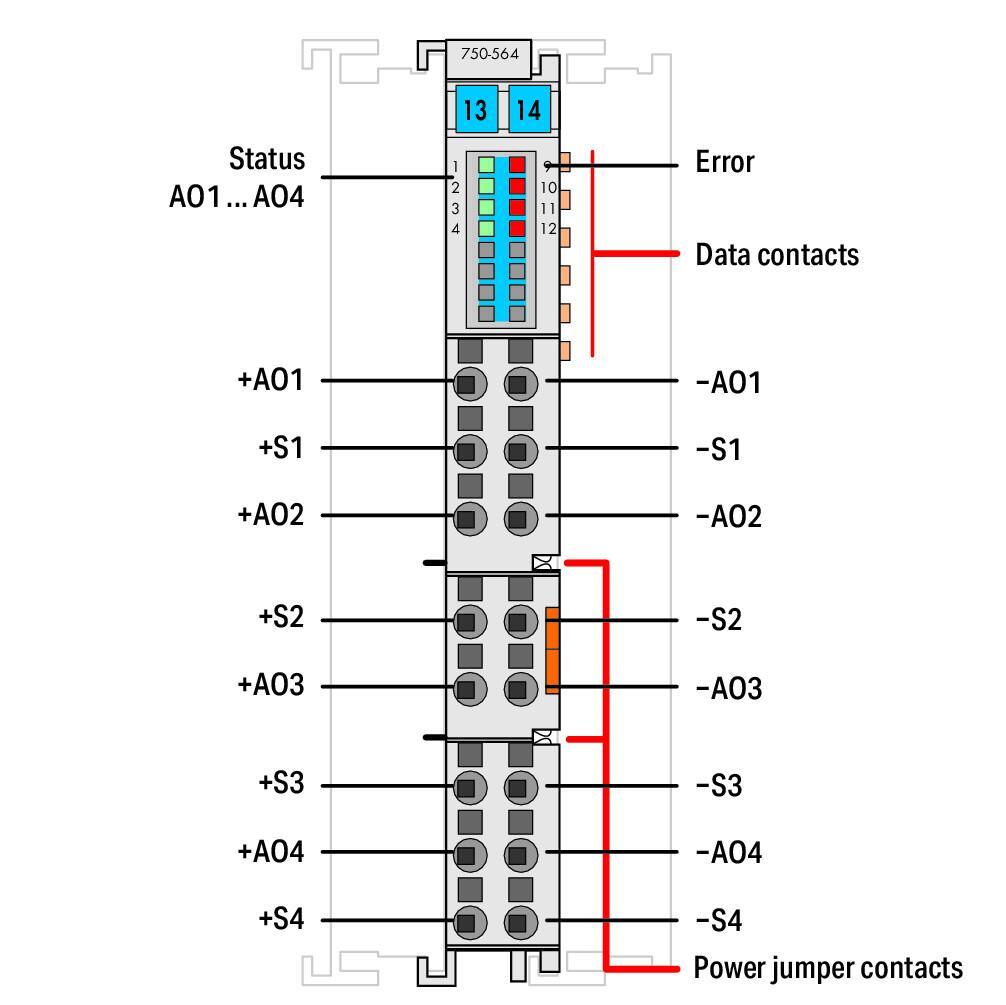

WAGO 750-564 4-channel analog output
Part Number # 750-564
SKU # 2376383
$650.71 / Each
Wago 750-564 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-564 |
| SKU #: | 2376383 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Enclosure Type: | IP20 |
| Type: | 4-Channel |
| Color: | Light gray |
| Connection technology: | 16 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog outputs: | 4 |
| Output type: | Analog |
| Protection type: | IP20 |
| Signal type: | Voltage || Electricity |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of channels (module): | 4 |
| Weight: | 46.685 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143933223 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$650.71 / Each
Quantity:
WAGO 750-564 4-channel analog output
Brand: Wago
Part Number: 750-564
Additional Description: WAGO-750-564 4AO U/I, LIGHT GRAY
Catalog Description: 4-channel analog output; Voltage/Current
750-564 Standards
RoHS Compliant|CE|IP20SKU #2376383Part Number #750-564UNSPSC32151603UPC04055143933223
