Brand: Wago
750-614

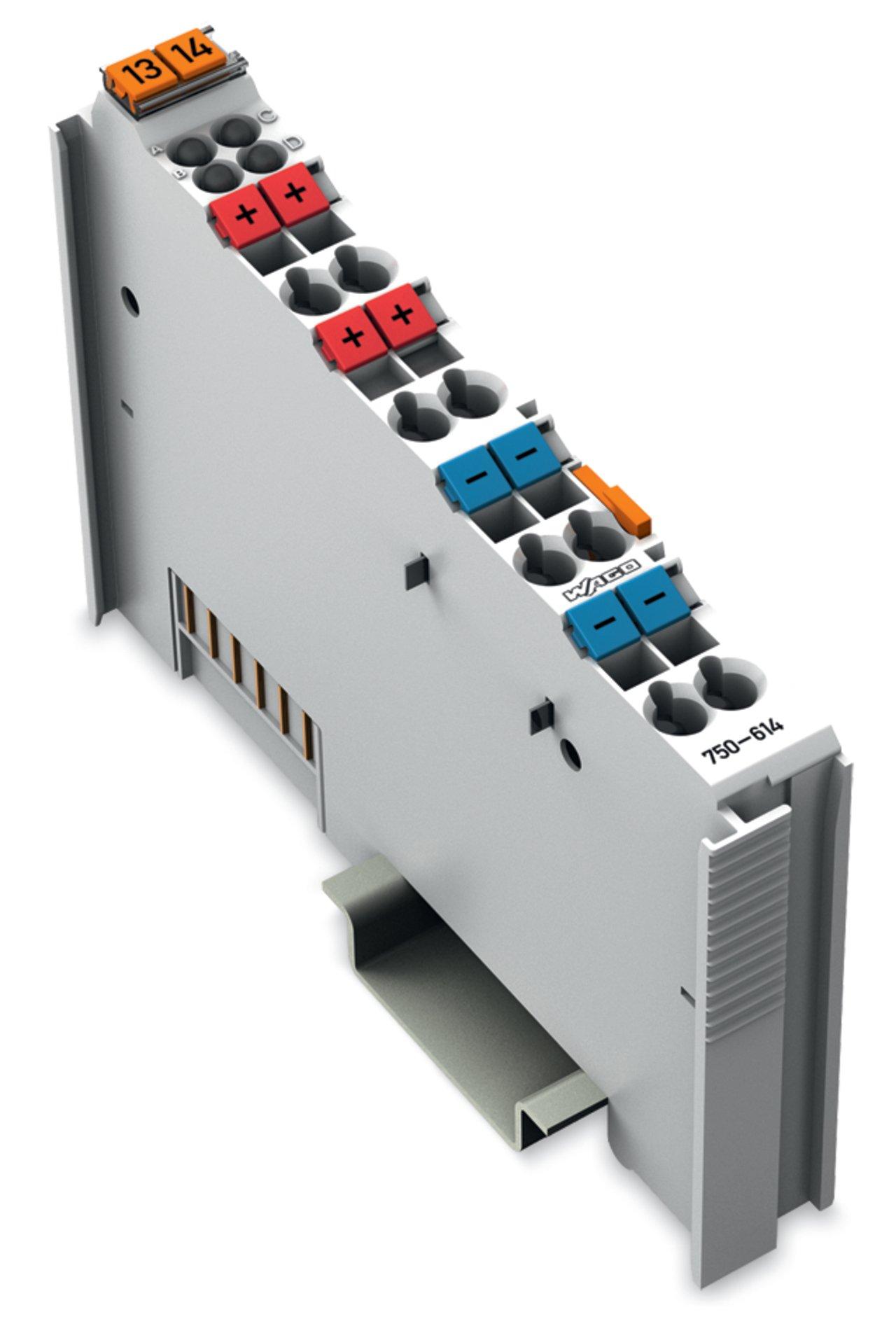

WAGO 750-614 Potential Distribution
Part Number # 750-614
SKU # 2125058
$42.34 / Each
Wago 750-614 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-614 |
| SKU #: | 2125058 |
| Dimensions: | 0.472 in W x 3.937 in D x 2.748 in H |
| Input Voltage: | 230 V AC/DC, 230 VAC/VDC |
| Series: | 750 |
| Temperature Rating (Degrees F): | 0 to 55, 0 to 55 deg C |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE, US |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input current: | 10, 10 A, 10:00 AM |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 43.500 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454393861 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$42.34 / Each
Quantity:
- WAGO Power Supply Module, Series: 750, 230 V AC/DC Input, 10 A Input Current, 0 to 55 deg C, Light Gray, 0.472 in W x 3.937 in D x 2.748 in H
750-614 Item Features
- Field side connection module for multiple tapping of the supply voltage
- This eliminates the need for additional terminal blocks
750-614 Standards
ANSI/ISA 12.12.01|CE Marked|RoHS Compliant|UL ListedSKU #2125058Part Number #750-614UNSPSC32151702UPC04045454393861
