Brand: Wago

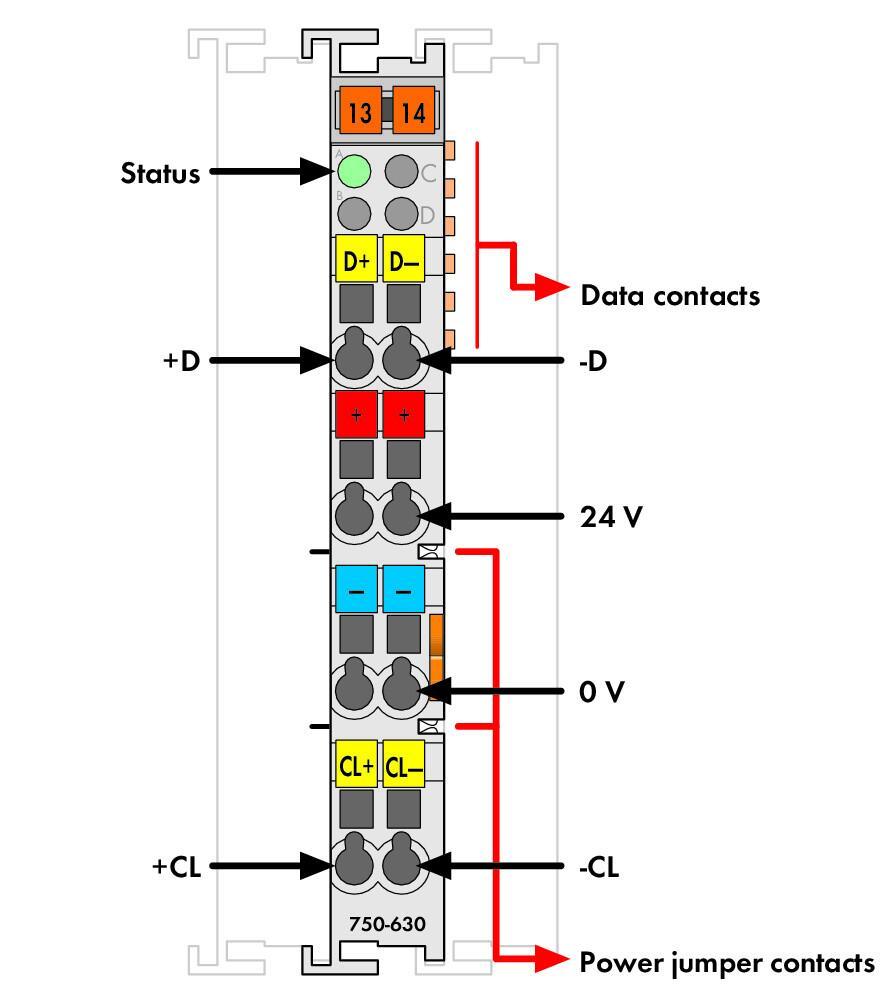

WAGO 750-630 SSI transmitter interface
Image Disclaimers Message
Brand: Wago
WAGO 750-630 SSI transmitter interface
Brand: Wago
WAGO 750-630 SSI transmitter interface
Part #:750-630
SKU #: 2131726
$541.80/EA
Key Features
Part #:750-630
SKU #: 2131726
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Data transmission rate: 125 kHz
Depth: 69.8 mm / 2.748 inch
$541.80/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Data transmission rate: 125 kHz
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Protection type: IP20
Serial input: Data width: 24 bits
Signal type: Differential signal (RS-422)
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage (transmitter): DC 24 V; via power jumper contacts
Vibration resistance: 4g per IEC 60068-2-6
Weight: 51.000 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454879815
WAGO 750-630 SSI transmitter interface
Additional Description: WAGO-750-630 SSI TRANSMITTER INTERFACE; 24 BITS; 125 KHZ; GRAY CODE; LIGHT GRAY 51214821
Catalog Description: SSI transmitter interface; 24 bits; 125 kHz; Gray code
