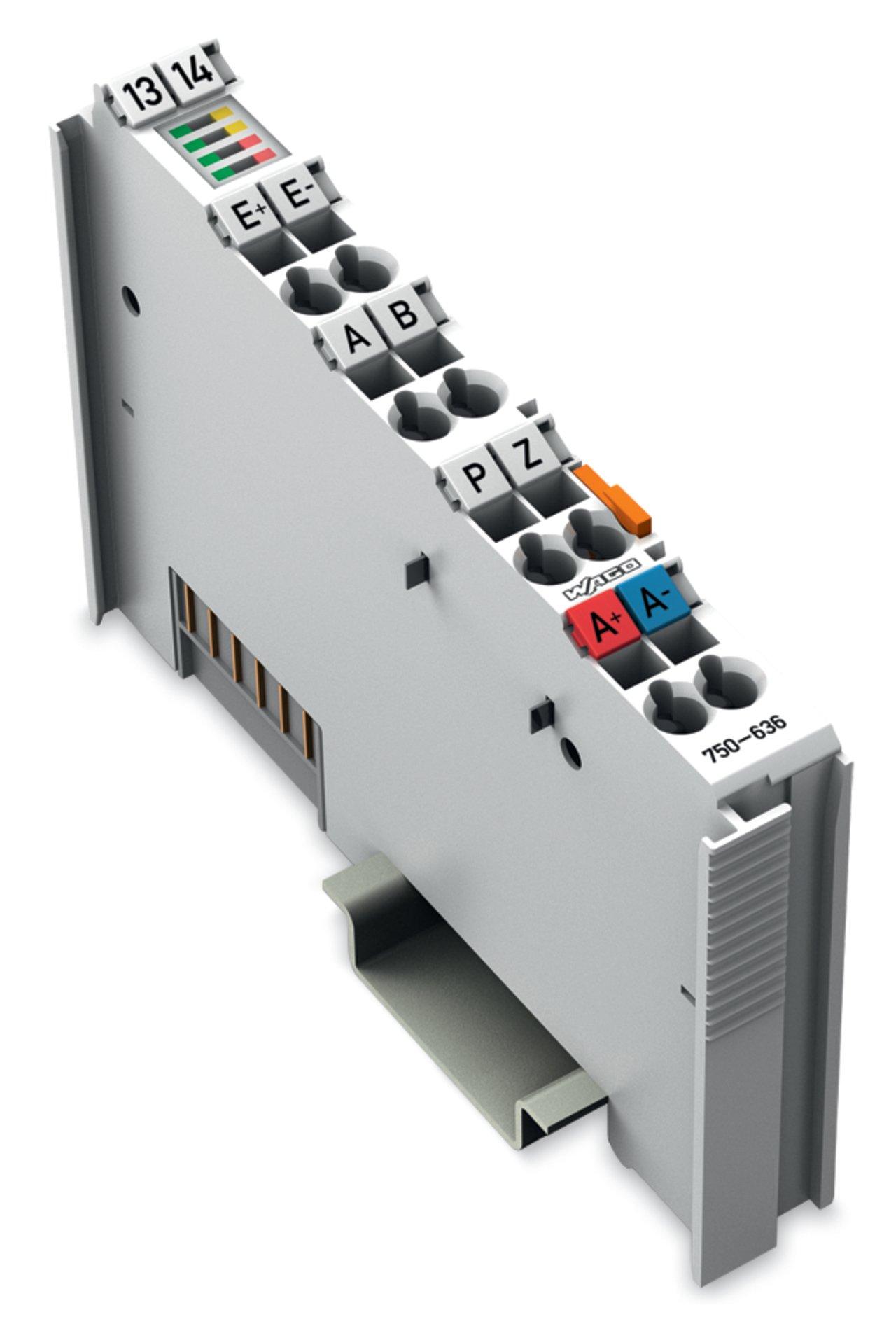

WAGO 750-636 DC Drive Controller
Part Number # 750-636
SKU # 2326195
$604.47 / Each
Wago 750-636 Key Features
Brand: Wago
Part Number # 750-636
SKU #2326195
Amperage Rating: 55 mA
Dimensions: 3.937 in H x 0.472 in W x 2.669 in D
Temperature Rating (Degrees F): 0 to 55 deg C
Type: Single-Channel
Voltage Rating: 5 VDC
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 67.8 mm / 2.669 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Material: Polycarbonate
Motor connection: A+, A-, H-bridge output; short-circuit-protected
Mounting position: Horizontal (standing/lying); vertical
Mounting type: 35 mm DIN Rail, DIN-35 rail
Number of digital inputs: 3
Number of inputs: 3
Number of outputs: 1, 1 channel
Output voltage: 19.2 … 27.5 VDC
Protection type: IP20
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Vibration resistance: Per IEC 60068-2-6
Weight: 54.000 g
Width: 12 mm / 0.472 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454925307
$604.47 / Each
- WAGO, 750-636, DC Drive Controller, Single-Channel, 5 VDC, 55 mA, 3 Inputs, 1 Outputs, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Light Gray, 3.937 in H x 0.472 in W x 2.669 in D Dimensions
750-636 Standards
RoHS Compliant|CE|IP20SKU #2326195Part Number #750-636UNSPSC32151702UPC04045454925307
