Part Number # 750-669/000-003
SKU # 2356843
Image Disclaimers Message
750-669/000-003

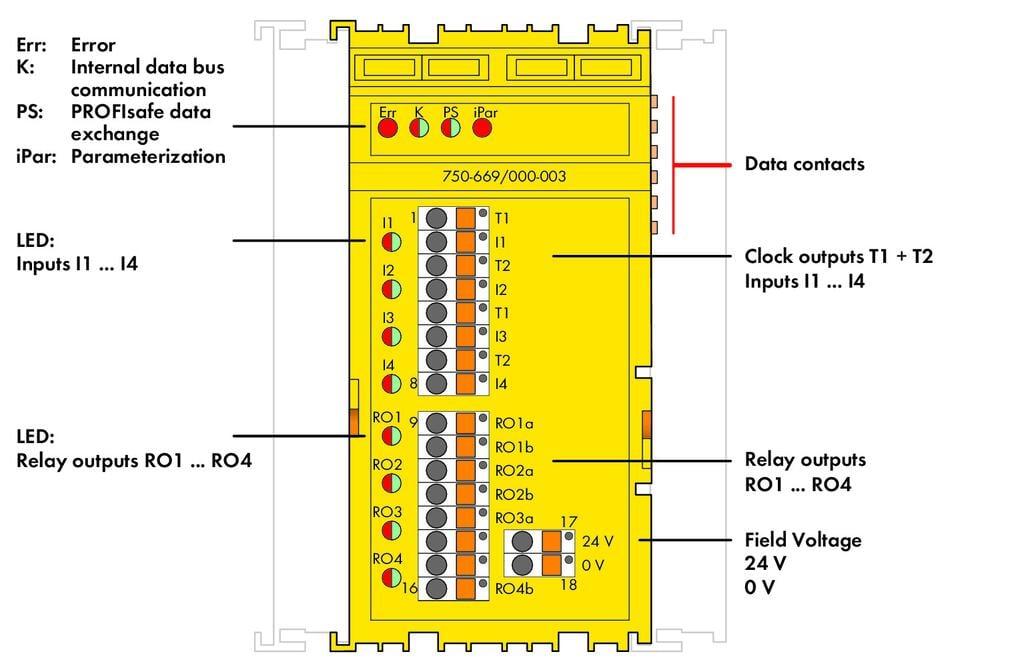

WAGO 750-669/000-003 Fail-safe 4/4 channel digital input/relay output
Part Number # 750-669/000-003
SKU # 2356843
$1214.75 / Each
Typical price:$1276.00 / Each
Wago 750-669/000-003 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-669/000-003 |
| SKU #: | 2356843 |
| Dimensions: | 3.937 in H x 1.89 in W x 2.748 in D |
| Color: | Yellow |
| Connection technology: | 16 x Push-in CAGE CLAMP®, 2 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN-35 rail |
| Number of digital inputs: | 4 |
| Number of digital outputs: | 4 |
| Number of inputs: | 8 |
| Output current (module): | 24 A |
| Output current per channel: | 0.25 |
| Protection type: | IP20 |
| Sensor connection: | 4 x (Fail-safe input with test pulse) |
| Signal type: | Voltage |
| Solid conductor: | 0.5 … 1.5 mm² / 20 … 14 AWG |
| Switching current (min.): | 3 mA |
| Total number of channels (module): | 8 |
| Vibration resistance: | Per IEC 60068-2-6 |
| Weight: | 220.300 g |
| Width: | 48 mm / 1.89 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143535588 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1214.75 / Each
Typical price:$1276.00 / Each
Quantity:
WAGO 750-669/000-003 Fail-safe 4/4 channel digital input/relay output
Brand: Wago
Part Number: 750-669/000-003
Additional Description: WAGO-750-669/000-003 FAIL-SAFE 4/4 CHANNEL DIGITAL INPUT/RELAY OUTPUT; 48 VAC/ 60 VDC; 6 A; PROFISAFE V2.0 IPAR; YELLOW 60318795 6 A; PROFISAFE V2.0 IPAR; YELLOW 60318795
Catalog Description: Fail-safe 4/4 channel digital input/relay output; 48 VAC/ 60 VDC; 6 A; PROFIsafe V2.0 iPar
750-669/000-003 Application
Suitable for applications that require, e.g, used for the 24 V supply voltage750-669/000-003 Standards
RoHS Compliant|IEC 61508-1/-7|EN ISO 13849-1|EN 62061|IP20|IEC 61000-4-5SKU #2356843Part Number #750-669/000-003UNSPSC32151603UPC04055143535588
