750-806

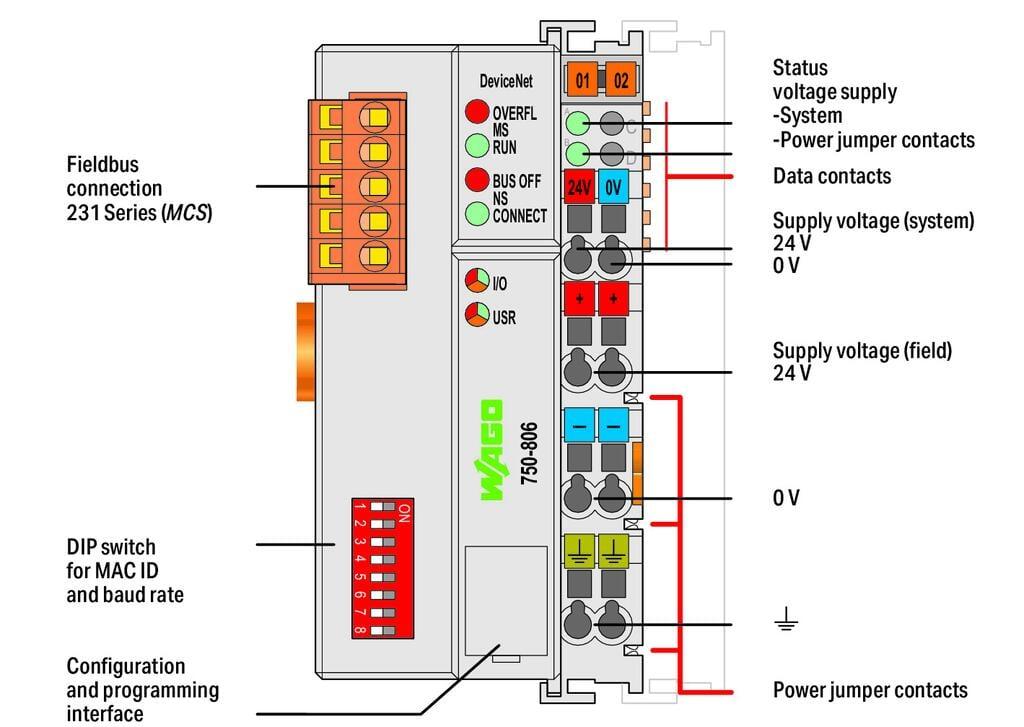

WAGO 750-806 Controller DeviceNet
Part Number # 750-806
SKU # 2324859
$894.67 / Each
Wago 750-806 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-806 |
| SKU #: | 2324859 |
| Amperage Rating: | 500 mA |
| Dimensions: | 3.937 in H x 1.988 in W x 2.799 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | Male |
| Baud rate: | 500 kBd (125 kBd, 250 kBd, 500 kBd) |
| Color: | Light gray |
| Communication: | DeviceNet |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, DeviceNet: 1 x Male connector; 5-pole |
| Country of origin: | DE |
| CPU: | 16 bits |
| Cycle time: | < 3 ms for 1000 bit instructions/ 256 digital I/O |
| Data memory: | 64 kByte |
| Depth: | 71.1 mm / 2.799 inch |
| DeviceNet features: | Polled I/O Message Connection || Strobed I/O Message Connection || Change of State || Cyclic Message Connection || UCMM using function blocks || DeviceNet master can be programmed |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate |
| Memory for fieldbus input variables (max.): | 512 Byte |
| Memory for fieldbus output variables (max.): | 512 Byte |
| Mounting position: | Any |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Non-volatile software memory: | 8 kB |
| Number of fieldbus nodes on master (max.): | 64 |
| Number of I/O points: | 6000 |
| Program memory: | 128 kByte |
| Programming environment: | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 200.000 g |
| Width: | 50.5 mm / 1.988 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454527020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$894.67 / Each
Quantity:
- WAGO, 750-806, Controller Devicenet, Male, 24 V DC, 500 mA, DeviceNet Communication, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Light Gray, 3.937 in H x 1.988 in W x 2.799 in D Dimensions
750-806 Application
For marine applications750-806 Item Features
- Decentralized control to optimize support for a PLC or PC
- Programmable fault response in the event of fieldbus failure
- Signal pre-processing to reduce fieldbus transmissions
- Directly control peripheral equipment for faster system response times
- Stand-alone, compact controller
750-806 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2324859Part Number #750-806UNSPSC32151702UPC04045454527020
