Part Number # 750-8214
SKU # 2378153
Image Disclaimers Message
Brand: Wago
750-8214

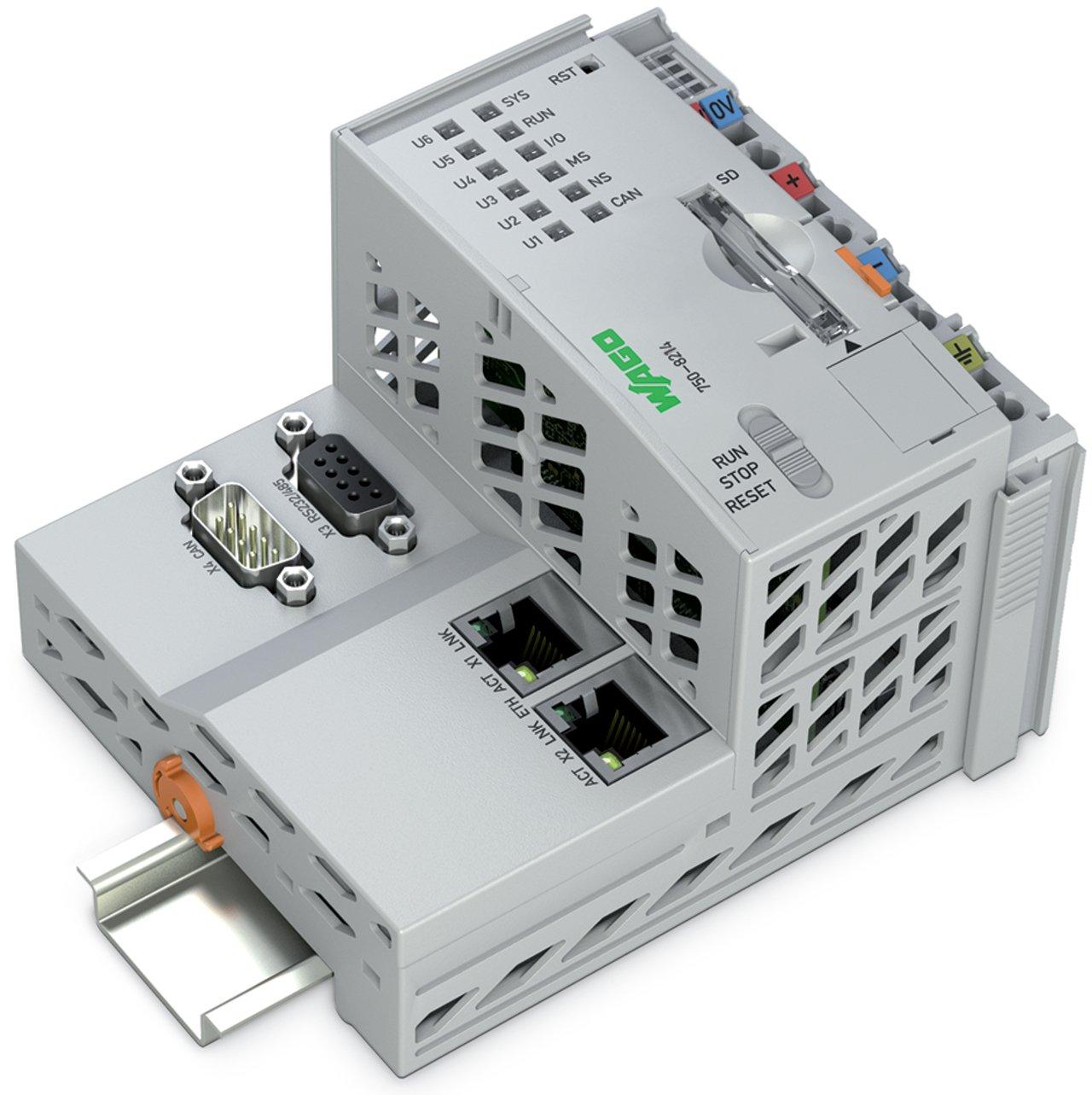

WAGO 750-8214 Controller PFC200
Part Number # 750-8214
SKU # 2378153
$2167.63 / Each
Wago 750-8214 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-8214 |
| SKU #: | 2378153 |
| Amperage Rating: | 550 mA |
| Type: | Male |
| Baud rate: | ETHERNET: 10/100 Mbit/s |
| Baud rate (communication/fieldbus 1): | 10/100 Mbit/s |
| Color: | Light gray |
| Communication: | CANopen || Modbus (TCP, UDP) || ETHERNET || Modbus RTU || RS-232 Serial Interface || RS-485 Serial Interface || EtherNet/IPTM Adapter (slave), library for e!RUNTIME || EtherCAT Master, requires an additional license || MQTT |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, CANopen: 1 x D-sub 9 plug; Modbus TCP/UDP: 2 x RJ-45; Modbus RTU: 1 x D-sub 9 socket; RS-232 serial interface: 1 x D-sub 9 socket; RS-485 serial interface: 1 x D-sub 9 socket |
| Country of origin: | DE |
| CPU: | Cortex A8; 1 GHz |
| Data memory: | CODESYS V2: 64 MB; e!RUNTIME: 128 MB |
| Depth: | 71.9 mm / 2.831 inch |
| ETHERNET protocols: | DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Internal memory (flash): | 4096 MB |
| Isolation: | 500 V system/field |
| Main memory (RAM): | 512 MB |
| Memory card slot: | Push-push mechanism; Cover lid (sealable) |
| Memory card type: | SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card) |
| Mounting position: | Any |
| Mounting type: | DIN-35 rail |
| Non-volatile hardware memory: | 128 kB |
| Non-volatile software memory: | 128 kB || 128 kB |
| Operating system: | Real-time Linux (with RT-Preempt patch) |
| Program memory: | CODESYS V2: 16 MB; e!RUNTIME: 32 MB |
| Programming environment: | e!COCKPIT (based on CODESYS V3) || WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 256.858 g |
| Width: | 112 mm / 4.409 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143759762 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2167.63 / Each
Quantity:
- WAGO, 750-8214, Controller, Male, 24 V DC, 550 mA, Light Gray
750-8214 Application
For marine applications750-8214 Item Features
- Programmable with CODESYS V3.5 from Firmware Release 23, WAGO-I/O-PRO V2.3 or COCKPIT up to Firmware Release 22
- Direct connection of WAGOs I/O modules
- 2 x ETHERNET (configurable), RS-232/-485, CAN, CANopen
- Linux operating system with RT-Preempt patch
- Configuration via CODESYS, COCKPIT or Web-Based Management user interface
- Maintenance-free
750-8214 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2378153Part Number #750-8214UNSPSC32151603UPC04055143759762
