Wago 750-8215 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-8215 |
| SKU #: | 2410469 |
| Amperage Rating: | 550 mA |
| Dimensions: | 3.937 in H x 4.409 in W x 2.831 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| UNSPSC: | 32151702 |
| UPC: | 04055143852883 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

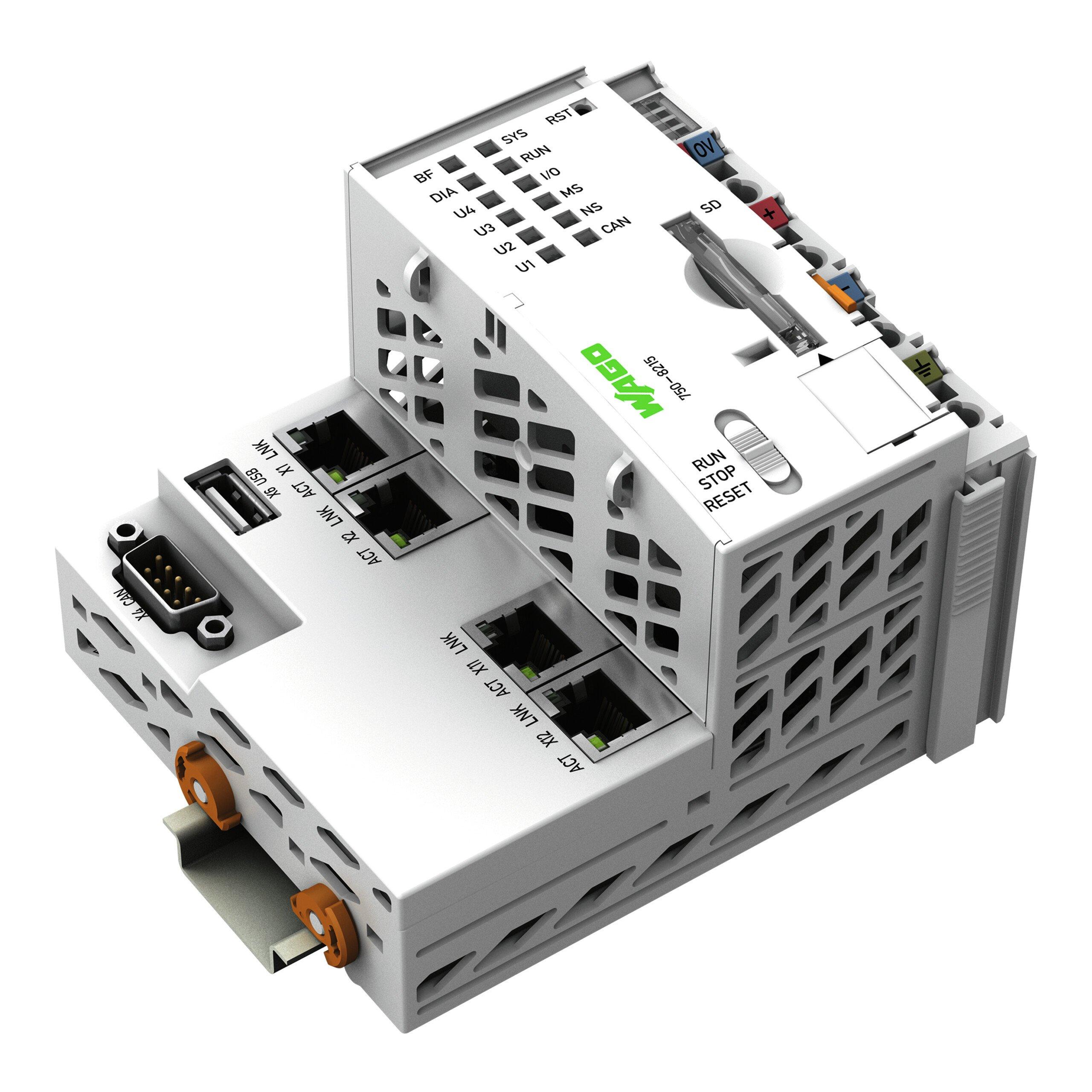

WAGO 750-8215 Controller
Brand: Wago
Part Number: 750-8215
WAGO, 750-8215, Controller, Male, 24 V DC, 550 mA, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Light Gray, 3.937 in H x 4.409 in W x 2.831 in D Dimensions
Additional Description: WAGO-750-8215 CONTROLLER PFC200; 2ND GENERATION; 4 X ETHERNET, CAN, CANOPEN, USB-A; LIGHT GRAY 60397028
Catalog Description: Controller PFC200; 2nd Generation; 4 x ETHERNET, CAN, CANopen, USB-A
750-8215 Application
For marine applications750-8215 Item Features
- Programmable with CODESYS V3.5 from Firmware Release 23 or COCKPIT up to Firmware Release 22
- Direct connection of WAGOs I/O modules
- 4 x ETHERNET (configurable), CAN, CANopen, PROFINET I-Device
- Linux operating system with RT-Preempt patch
- Configuration via COCKPIT or Web-Based-Management user interface
- Maintenance-free
750-8215 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2410469Part Number #750-8215UNSPSC32151702UPC04055143852883
Image provided may only be a representation of final product and may include optional equipment
