Part Number # 750-833
SKU # 2205689
Image Disclaimers Message
750-833

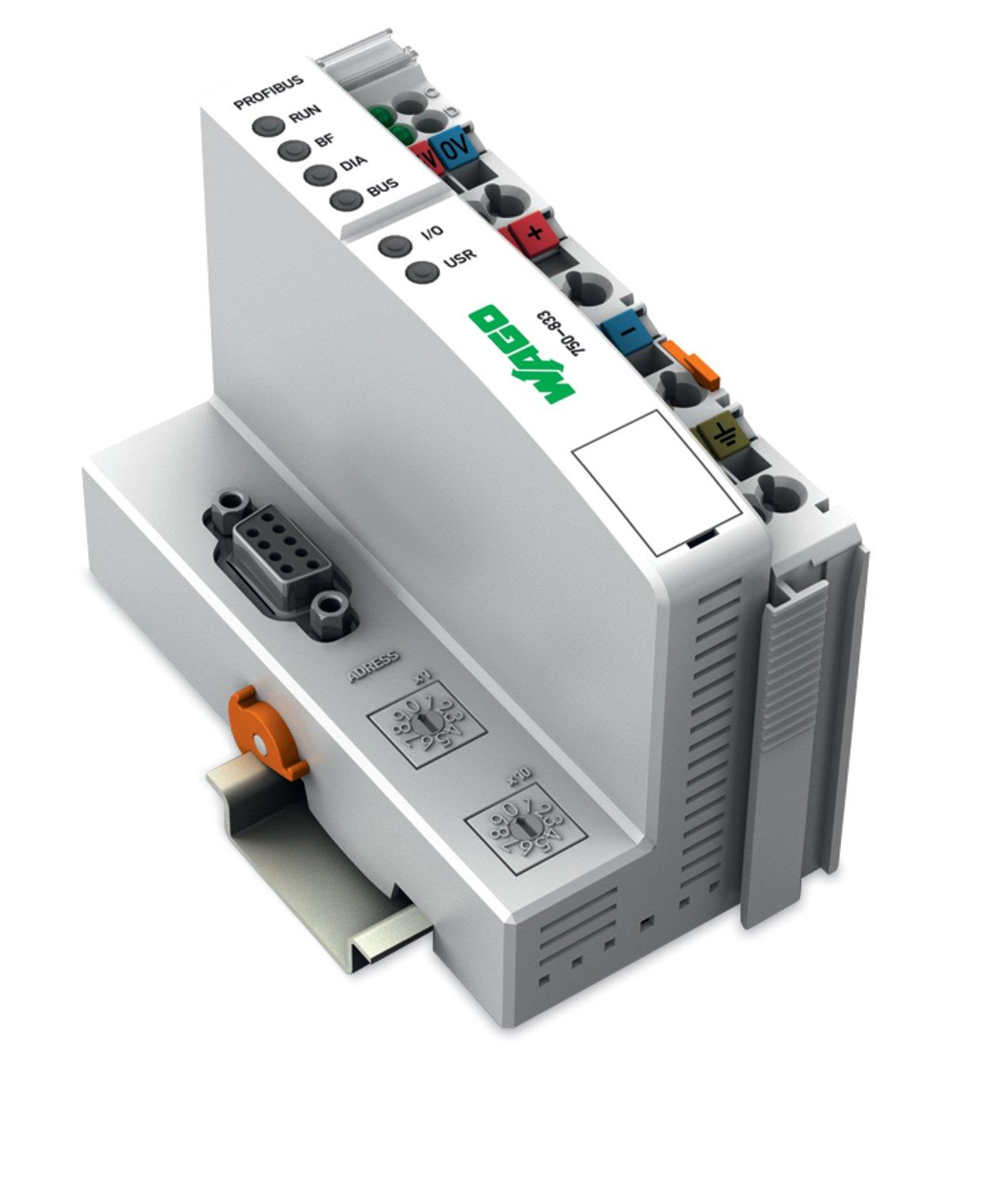

WAGO 750-833 Controller PROFIBUS Slave
Part Number # 750-833
SKU # 2205689
$894.67 / Each
Wago 750-833 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-833 |
| SKU #: | 2205689 |
| Amperage Rating: | 500 mA |
| Dimensions: | 3.937 in H x 1.988 in W x 2.799 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | Male |
| Baud rate: | 9.6 kBd … 12 MBd |
| Color: | Dark gray, Light gray |
| Communication: | PROFIBUS |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, PROFIBUS: 1 x D-sub 9 socket |
| Country of origin: | DE |
| CPU: | 16 bits |
| Cycle time: | < 3 ms for 1000 bit instructions/ 256 digital I/O |
| Data memory: | 64 kByte |
| Depth: | 71.1 mm / 2.799 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate |
| Memory for fieldbus input variables (max.): | 244 Byte |
| Memory for fieldbus output variables (max.): | 244 Byte |
| Mounting position: | Any |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Non-volatile software memory: | 8 kB |
| Number of fieldbus nodes on master (max.): | 96 |
| Number of I/O points: | 6000 |
| Program memory: | 128 kByte |
| Programming environment: | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Standard: | EN 50170 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 186.944 g |
| Width: | 50.5 mm / 1.988 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454527075 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$894.67 / Each
Quantity:
- WAGO, 750-833, Controller Profibus Slave, Male, 24 V DC, 500 mA, PROFIBUS Communication, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Dark Gray, 3.937 in H x 1.988 in W x 2.799 in D Dimensions
750-833 Application
For marine applications750-833 Item Features
- Decentralized control to optimize support for a PLC or PC
- Programmable fault response in the event of fieldbus failure
- Signal pre-processing to reduce fieldbus transmissions
- Directly control peripheral equipment for faster system response times
- Stand-alone, compact controller
750-833 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2205689Part Number #750-833UNSPSC32151702UPC04045454527075
