Brand: Wago
750-842

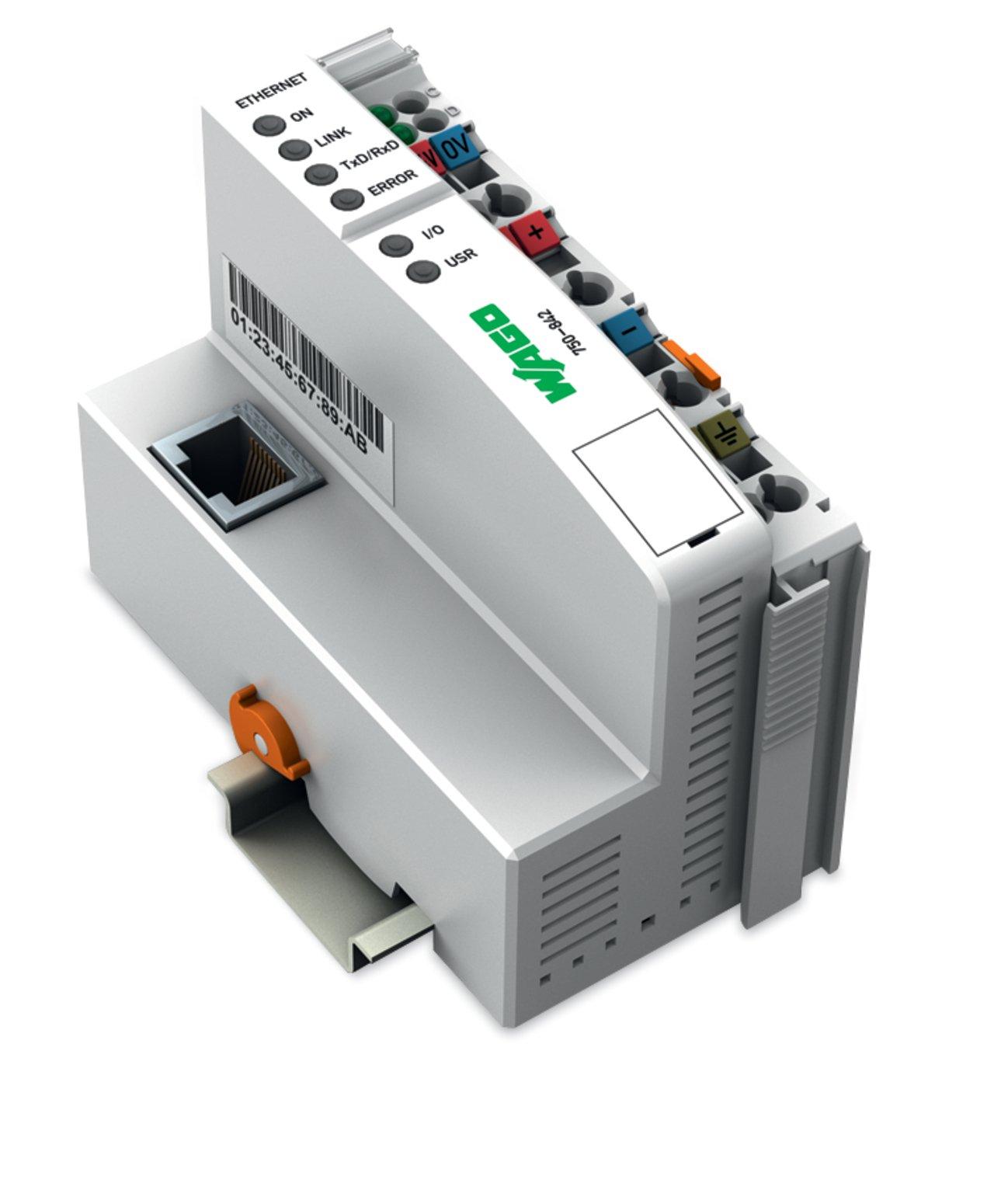

WAGO 750-842 Controller ETHERNET
Part Number # 750-842
SKU # 360433
$867.83 / Each
Wago 750-842 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-842 |
| SKU #: | 360433 |
| Amperage Rating: | 500 mA |
| Dimensions: | 3.937 in H x 1.988 in W x 2.799 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 1st Generation |
| Color: | Light gray |
| Communication: | Modbus (TCP, UDP) || ETHERNET, Modbus/Ethernet |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, Modbus TCP/UDP: 1 x RJ-45 |
| Country of origin: | DE |
| CPU: | 16 bits |
| Cycle time: | < 3 ms for 1000 bit instructions/ 256 digital I/O |
| Data memory: | 64 kByte |
| Depth: | 71.1 mm / 2.799 inch |
| ETHERNET protocols: | HTTP || BootP |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate |
| Memory for fieldbus input variables (max.): | 512 Byte |
| Memory for fieldbus output variables (max.): | 512 Byte |
| Mounting position: | Any |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Non-volatile software memory: | 8 kB |
| Program memory: | 128 kByte |
| Programming environment: | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 179.000 g |
| Width: | 50.5 mm / 1.988 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454527198 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$867.83 / Each
Quantity:
- WAGO, 750-842, Controller Ethernet, 1st Generation, 24 V DC, 500 mA, Modbus/Ethernet Communication, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Light Gray, 3.937 in H x 1.988 in W x 2.799 in D Dimensions
750-842 Application
For marine applications750-842 Item Features
- Decentralized control to optimize support for a PLC or PC
- Programmable fault response in the event of fieldbus failure
- Signal pre-processing to reduce fieldbus transmissions
- Directly control peripheral equipment for faster system response times
- Stand-alone, compact controller
750-842 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #360433Part Number #750-842UNSPSC32151702UPC04045454527198
