750-862

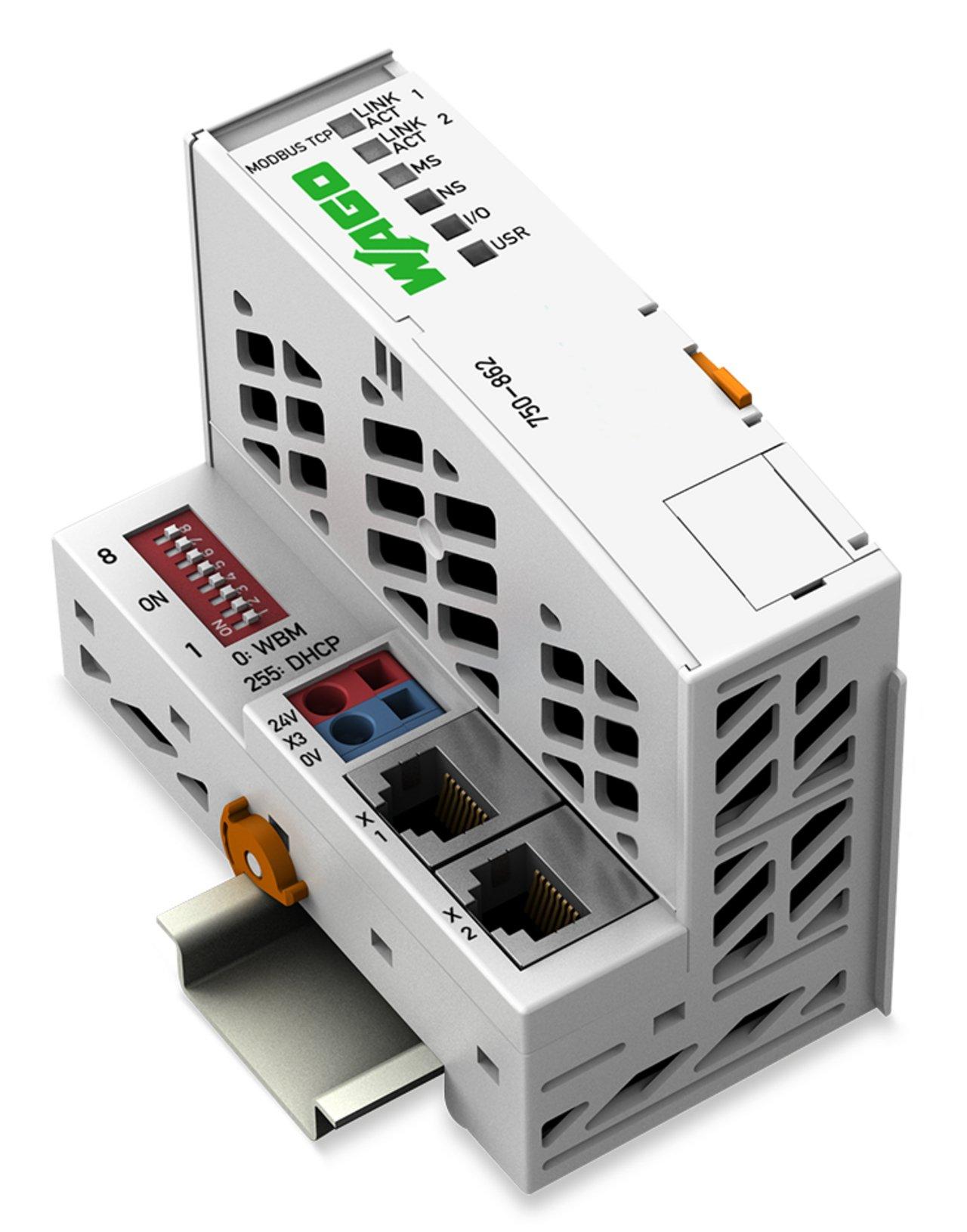

WAGO 750-862 Controller Modbus TCP
Part Number # 750-862
SKU # 2362731
$794.24 / Each
Wago 750-862 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-862 |
| SKU #: | 2362731 |
| Amperage Rating: | 300 mA |
| Dimensions: | 3.811 in H x 1.949 in W x 2.831 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 4th Generation |
| Baud rate: | 10/100 Mbit/s |
| Baud rate (communication/fieldbus 1): | 10/100 Mbit/s |
| Color: | Dark gray, Light gray |
| Communication: | Modbus, Modbus (TCP, UDP) |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, Modbus TCP/UDP: 2 x RJ-45 |
| Country of origin: | DE |
| CPU: | 32 bits |
| Data memory: | 2 MB |
| Depth: | 71.9 mm / 2.831 inch |
| ETHERNET protocols: | HTTP(S) || BootP || DHCP || DNS || SNTP || (S)FTP || SNMP |
| Height: | 96.8 mm / 3.811 inch |
| Housing material: | Polycarbonate; Polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate |
| Mounting position: | Any |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Non-volatile software memory: | 16 kB |
| Program memory: | 2 MB |
| Programming environment: | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 105.300 g |
| Width: | 49.5 mm / 1.949 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04055143821308 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$794.24 / Each
Quantity:
- WAGO, 750-862, Controller Modbus, 4th Generation, 24 V DC, 300 mA, Modbus Communication, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Dark Gray, 3.811 in H x 1.949 in W x 2.831 in D Dimensions
750-862 Application
For marine applications750-862 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2362731Part Number #750-862UNSPSC32151702UPC04055143821308
