750-890

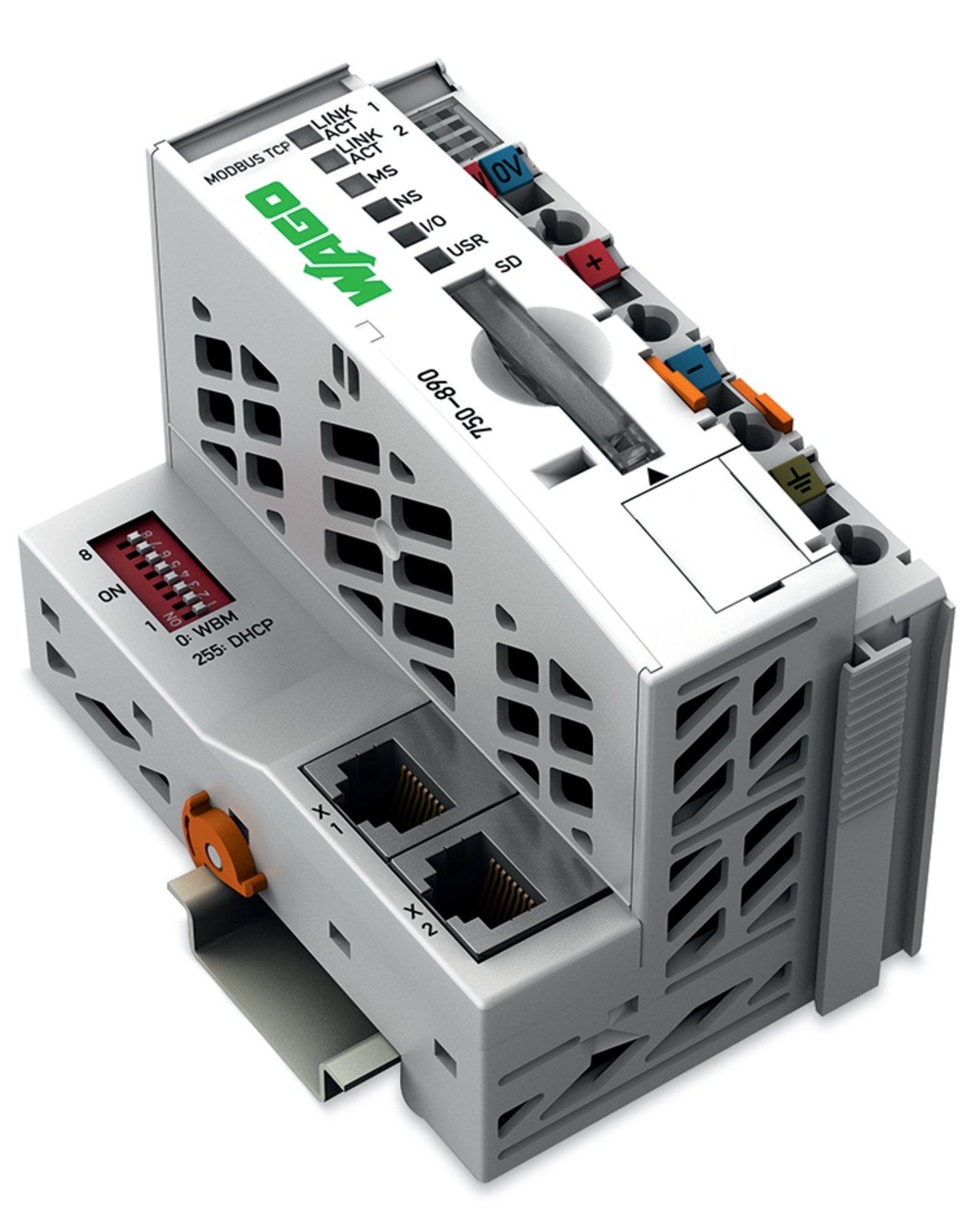

WAGO 750-890 Controller Modbus TCP
Part Number # 750-890
SKU # 2367985
$1397.66 / Each
Wago 750-890 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-890 |
| SKU #: | 2367985 |
| Amperage Rating: | 500 mA |
| Dimensions: | 3.937 in H x 2.421 in W x 2.831 in D |
| Programming: | Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 4th Generation |
| Baud rate: | 10/100 Mbit/s |
| Baud rate (communication/fieldbus 1): | 10/100 Mbit/s |
| Color: | Light gray |
| Communication: | Modbus, Modbus (TCP, UDP) |
| Connection technology: | 1 x Male connector; 4-pole, 2 x CAGE CLAMP®, 6 x CAGE CLAMP®, Modbus TCP/UDP: 2 x RJ-45 |
| Country of origin: | DE |
| CPU: | 32 bits |
| Data memory: | 8 MB |
| Depth: | 71.9 mm / 2.831 inch |
| ETHERNET protocols: | HTTP(S) || BootP || DHCP || DNS || SNTP || (S)FTP || SNMP |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate; Polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate |
| Memory card slot: | Push-push mechanism; Cover lid (sealable) |
| Memory card type: | SD and SDHC up to 32 GB (All guaranteed properties are only valid in connection with the WAGO memory card.) |
| Mounting position: | Any |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Non-volatile software memory: | 32 kB |
| Program memory: | 8 MB |
| Programming environment: | WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
| Programming languages per IEC 61131-3: | Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 151.600 g |
| Width: | 61.5 mm / 2.421 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151603 |
| UPC: | 04055143821407 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1397.66 / Each
Quantity:
- WAGO, 750-890, Controller, 4th Generation, 24 V DC, 500 mA, Modbus Communication, Instruction List (IL), Ladder Diagram (LD), Function Block Diagram (FBD), Continuous Function Chart (CFC), Structured Text (ST), Sequential Function Chart (SFC) Programming, 35 mm DIN Rail Mounting, 0 to 55 deg C, Polycarbonate, Light Gray, 3.937 in H x 2.421 in W x 2.831 in D Dimensions
750-890 Application
For marine applications750-890 Standards
RoHS Compliant|CE|IP20|IEC 61131-3SKU #2367985Part Number #750-890UNSPSC32151603UPC04055143821407
