Part Number # 750-960
SKU # 1777380
Image Disclaimers Message
750-960

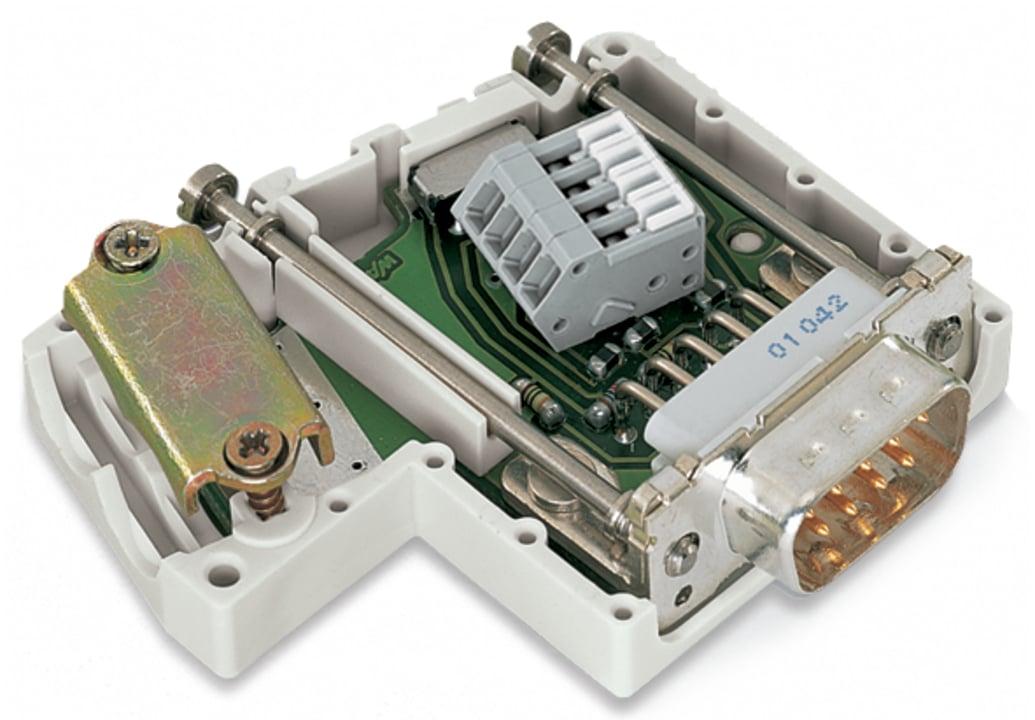

WAGO 750-960 Fieldbus Connector PROFIBUS
Part Number # 750-960
SKU # 1777380
$67.46 / Each
Wago 750-960 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-960 |
| SKU #: | 1777380 |
| Size: | 0.63 in H x 2.126 in W x 1.772 in D |
| Type: | Male |
| Baud rate: | 12 Mbit/s (per PROFIBUS specification) |
| Color: | Light gray |
| Communication/fieldbus: | PROFIBUS |
| Connection type: | D-sub 9 plug |
| Country of origin: | DE |
| Depth: | 45 mm / 1.772 inch |
| Height: | 16 mm / 0.63 inch |
| Housing material: | PA66-105-V2 |
| Input current: | 5 mA |
| Material: | Polyamide 6.6 |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Supply voltage: | DC 4.75 … 5.25 V |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 33.400 g |
| Width: | 54 mm / 2.126 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454320157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$67.46 / Each
Quantity:
WAGO 750-960 Fieldbus Connector PROFIBUS
Brand: Wago
Part Number: 750-960
Additional Description: WAGO-750-960 FIELDBUS CONNECTOR PROFIBUS; WITH D-SUB MALE CONNECTOR; 9-POLE; LIGHT GRAY 51176561
Catalog Description: Fieldbus Connector PROFIBUS; with D-sub male connector; 9-pole
750-960 Item Features
- Two horizontal cable entries for both input and output
- Fast and maintenance-free CAGE CLAMP connection - a locking slide keeps the clampling unit in its open position
- Externally operable switch to activate or deactivate the network terminating resistor
750-960 Standards
RoHS Compliant|IP20SKU #1777380Part Number #750-960UNSPSC32151702UPC04045454320157
