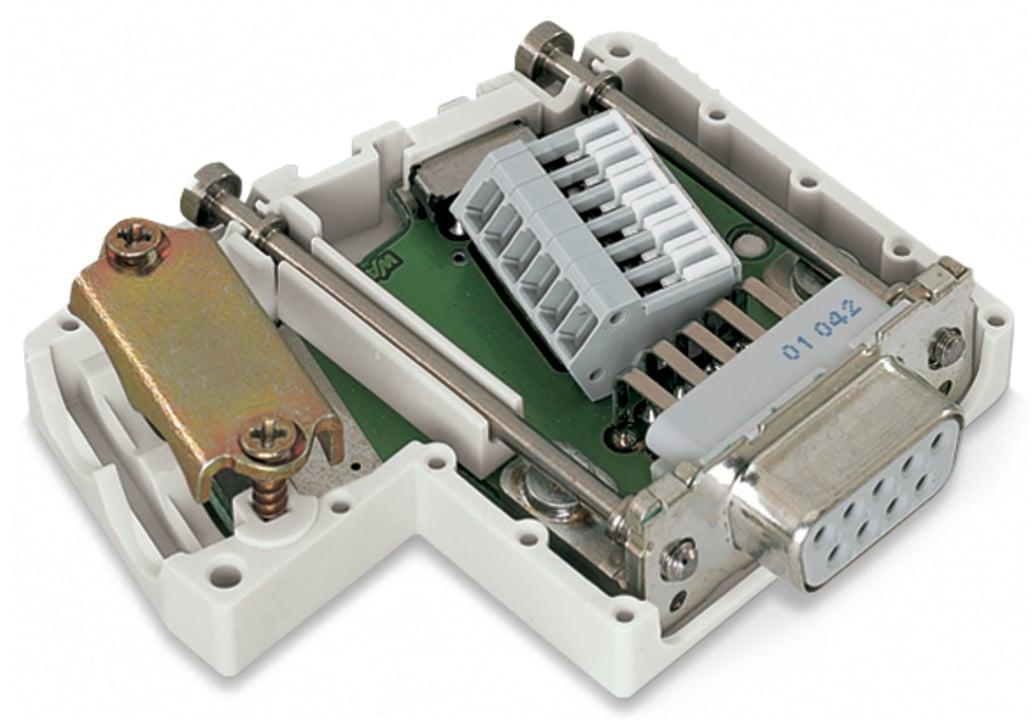

WAGO 750-963 Fieldbus Connector CANopen
Part Number # 750-963
SKU # 2212219
$55.76 / Each
Wago 750-963 Key Features
Brand: Wago
Part Number # 750-963
SKU #2212219
Size: 0.63 in H x 1.722 in W x 2.126 in D
Type: Female
Baud rate: 10 kBd … 1 MBd (per CANopen specification)
Color: Light gray
Communication/fieldbus: CANopen
Connection type: D-sub 9 socket
Country of origin: DE
Depth: 54 mm / 2.126 inch
Height: 16 mm / 0.63 inch
Housing material: PA66-105-V2
Material: Polyamide 6.6
Protection type: IP20
Solid conductor: 0.08 … 0.5 mm² / 28 … 20 AWG
Vibration resistance: 4g per IEC 60068-2-6
Weight: 27.600 g
Width: 45 mm / 1.772 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454344405
$55.76 / Each
- WAGO, 750-963, Fieldbus Connector, Female, 0.63 in H x 1.722 in W x 2.126 in D Size, Polyamide 6.6, Light Gray
750-963 Item Features
- Two horizontal cable entries for both input and output
- Fast and maintenance-free CAGE CLAMP connection - a locking slide keeps the clampling unit in its open position
- Externally operable switch to activate or deactivate the network terminating resistor
750-963 Standards
RoHS Compliant|IP20SKU #2212219Part Number #750-963UNSPSC32151702UPC04045454344405
