WAGO 750-965 Fieldbus Connector CC-Link
Part Number # 750-965
SKU # 1145977
$62.69 / Each
Wago 750-965 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-965 |
| SKU #: | 1145977 |

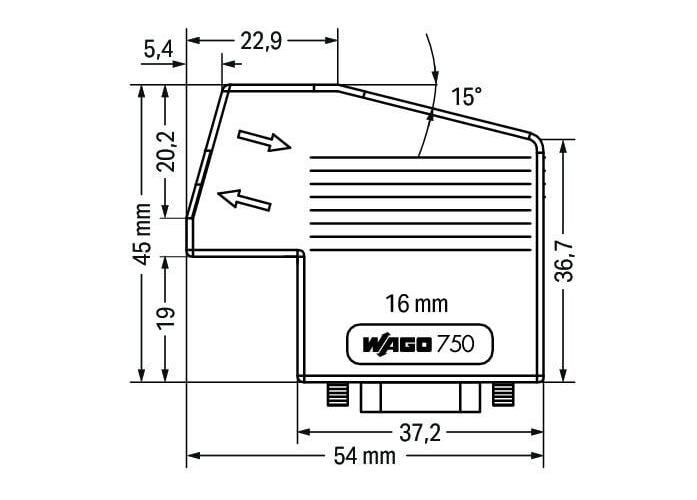

| Size: | 0.63 in H x 1.722 in W x 2.126 in D |
| Type: | Male |
| Color: | Light gray |
| Communication/fieldbus: | CC-Link |
| Connection type: | D-sub 9 plug |
| Country of origin: | DE |
| Depth: | 54 mm / 2.126 inch |
| Height: | 16 mm / 0.63 inch |
| Housing material: | PA66-105-V2 |
| Material: | Polyamide 6.6 |
| Protection type: | IP20 |
| Solid conductor: | 0.08 … 0.5 mm² / 28 … 20 AWG |
| Weight: | 34.100 g |
| Width: | 45 mm / 1.772 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821096030 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$62.69 / Each
Quantity:
WAGO 750-965 Fieldbus Connector CC-Link
Brand: Wago
Part Number: 750-965
Additional Description: WAGO-750-965 FIELDBUS CONNECTOR CC-LINK; WITH D-SUB MALE CONNECTOR; 9-POLE; LIGHT GRAY 51229864 GRAY 51229864
Catalog Description: Fieldbus Connector CC-Link; with D-sub male connector; 9-pole

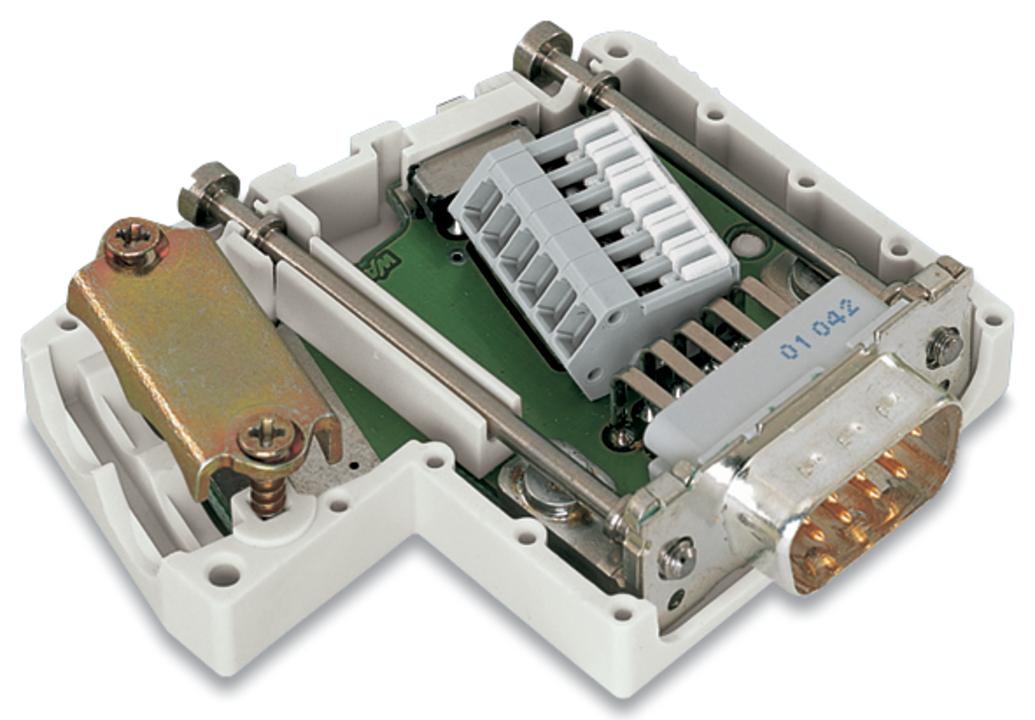

750-965 Item Features
- Two horizontal cable entries for both input and output
- Fast and maintenance-free CAGE CLAMP connection - a locking slide keeps the clampling unit in its open position
- Externally operable switch to activate or deactivate the network terminating resistor
750-965 Standards
RoHS Compliant|IP20SKU #1145977Part Number #750-965UNSPSC32151702UPC04050821096030
