Brand: Wago

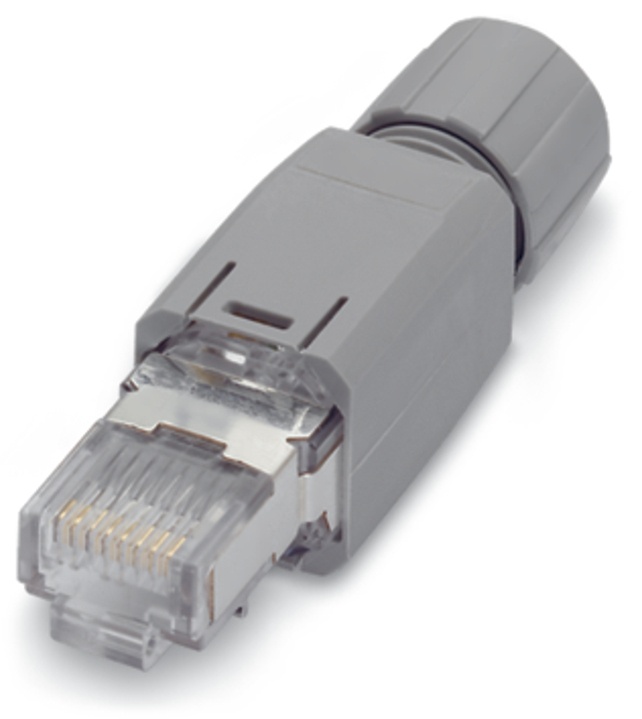

WAGO 750-975 RJ-45 connector
Image Disclaimers Message
Brand: Wago
WAGO 750-975 RJ-45 connector
Brand: Wago
WAGO 750-975 RJ-45 connector
Part #:750-975
SKU #: 2141283
$32.25/EA
Key Features
Part #:750-975
SKU #: 2141283
Brand: Wago
Dimensions: 14 mm H x 14 mm W x 59 mm D
Termination Type: IDC
Cable type: Round/Solid/Stranded
Color: Gray, Light gray
Communication/fieldbus: Ethernet
$32.25/EA
Specifications
Brand: Wago
Dimensions: 14 mm H x 14 mm W x 59 mm D
Termination Type: IDC
Cable type: Round/Solid/Stranded
Color: Gray, Light gray
Communication/fieldbus: Ethernet
Connection type: RJ-45 plug
Contact material: Bronze (CuSn6)
Country of origin: CH
Depth: 59 mm
Height: 14 mm
Housing material: Plastic
Insulation resistance: (100 V) > 1 GΩ
Material: Brass/Plastic/Phosphor Bronze
Protection type: IP20
Shield: Brass (CuZn); hot-dip tinned 3 μm; Shield contact: large surface >180°
Solid conductor: 0.13 … 0.24 mm² / 26/1 … 23/1 AWG
Standards/Specifications: Basic standard: IEC 60603-7 RJ-45 Category 5; - CD ISO/IEC 11801: 2002; - EN 50173: 2002; - EIA/TIA 568A: 2002
Vibration resistance: 4g per IEC 60068-2-6
Weight: 12.000 g
Width: 14 mm
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04045454482480
WAGO 750-975 RJ-45 connector
Additional Description: WAGO-750-975 ETHERNET RJ-45 CONNECTOR, IP20; ETHERNET 10/100 MBIT/S; FOR FIELD ASSEMBLY; LIGHT GRAY 7500975 ASSEMBLY; LIGHT GRAY 4.5-8MM DIAMETER 07500975
Catalog Description: ETHERNET RJ-45 connector, IP20; ETHERNET 10/100 Mbit/s; for field assembly
