Brand: Wago

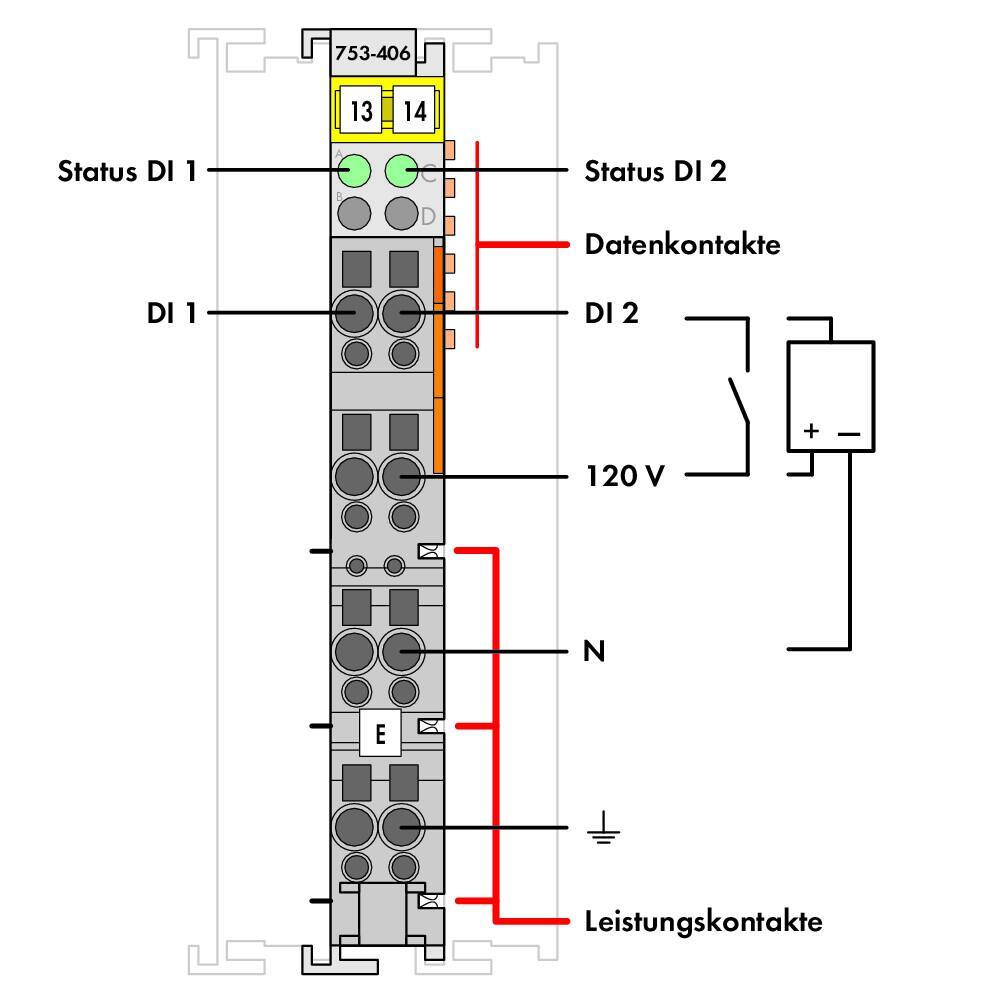

WAGO 753-406 2-channel digital input
Image Disclaimers Message
Brand: Wago
WAGO 753-406 2-channel digital input
Brand: Wago
WAGO 753-406 2-channel digital input
Part #:753-406
SKU #: 2133445
$75.65/EA
Key Features
Part #:753-406
SKU #: 2133445
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$75.65/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 2 bit
Isolation: 1500 V (system/field)
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital inputs: 2
Pluggable connector: Yes
Protection type: IP20
Sensor connection: 2 x (2-wire, 3-wire, 4-wire)
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage (sensor): AC 120 V
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 44.041 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454394394
WAGO 753-406 2-channel digital input
Additional Description: WAGO-753-406 2-CHANNEL DIGITAL INPUT; 120 VAC; LIGHT GRAY 51180945
Catalog Description: 2-channel digital input; 120 VAC
