Brand: Wago
WAGO 753-410 2-channel digital input
Image Disclaimers Message
Brand: Wago
WAGO 753-410 2-channel digital input
Brand: Wago
WAGO 753-410 2-channel digital input
Part #:753-410
SKU #: 2349825
$55.97/EA
Key Features
Part #:753-410
SKU #: 2349825
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$55.97/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Input data width (internal) (max.): 2 bit
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital inputs: 2
Pluggable connector: Yes
Protection type: IP20

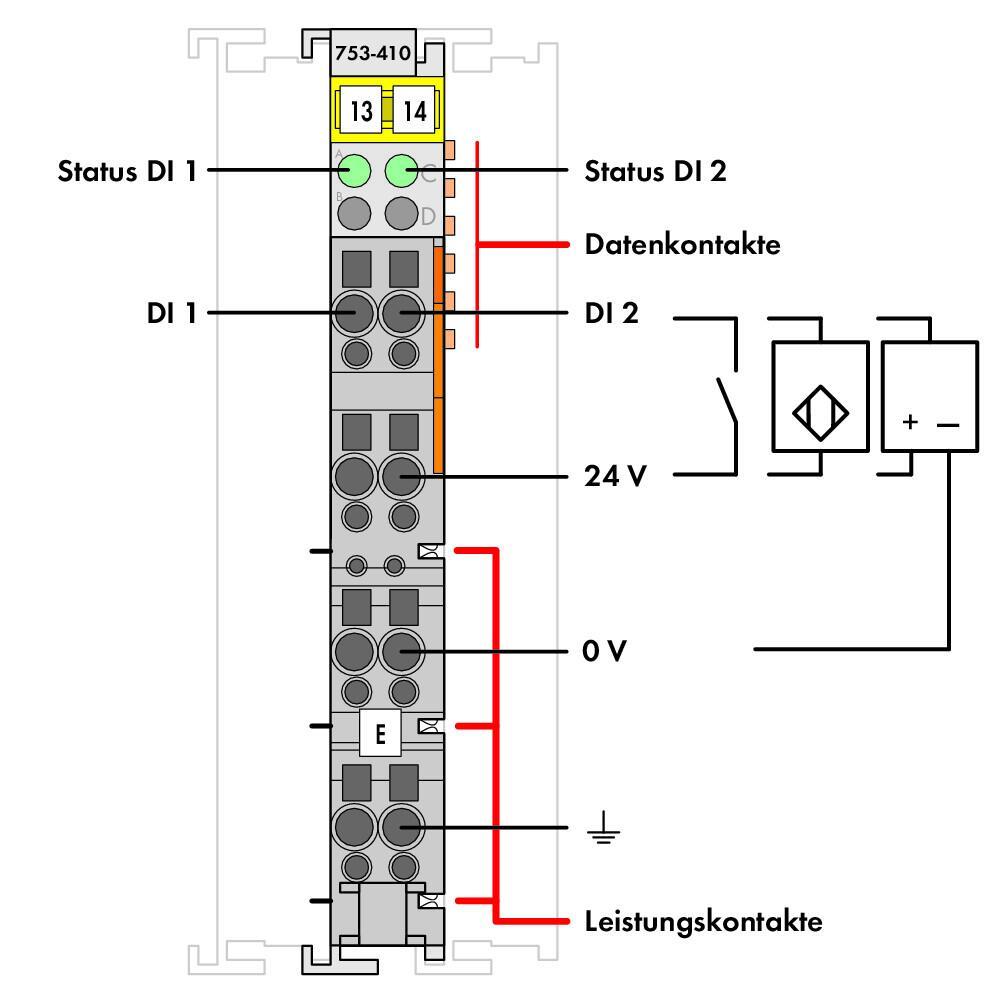

Sensor connection: 2 x (2-wire, 3-wire, 4-wire); 2-wire proximity switch
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Supply voltage (sensor): DC 24 V
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 38.500 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454497118
WAGO 753-410 2-channel digital input
Additional Description: WAGO-753-410 2-CHANNEL DIGITAL INPUT; 24 VDC; 3 MS; PROXIMITY SWITCH; LIGHT GRAY 51187669
Catalog Description: 2-channel digital input; 24 VDC; 3 ms; Proximity switch
