Part Number # 753-434
SKU # 2315944
Image Disclaimers Message
Brand: Wago
753-434

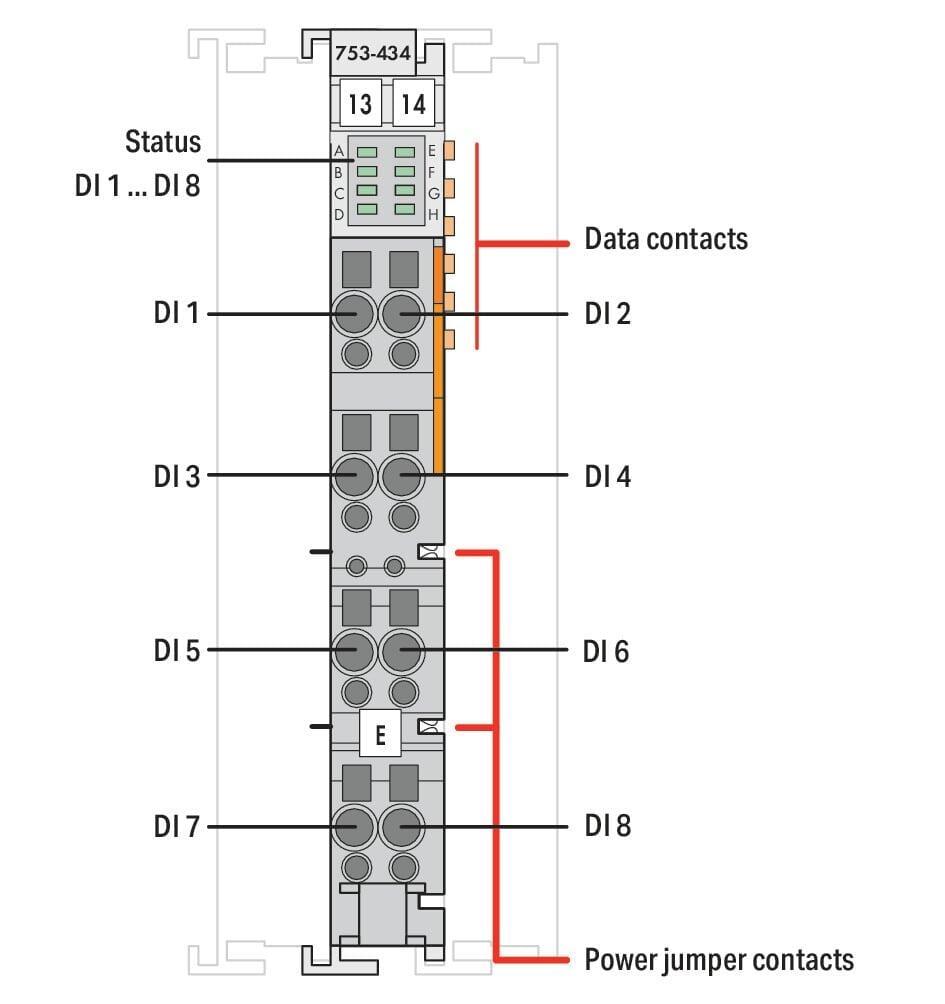

WAGO 753-434 8-channel digital input
Part Number # 753-434
SKU # 2315944
$159.64 / Each
Wago 753-434 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-434 |
| SKU #: | 2315944 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.71 in D |
| Enclosure Type: | IP20 |
| Input Type: | Digital |
| Type: | 8-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 8 bit |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital inputs: | 8 |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Sensor connection: | 8 x (1-wire) |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of channels (module): | 8 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 40.341 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821041955 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$159.64 / Each
Quantity:
- WAGO, 753-434, Digital Input, 8-Channel, Digital Input, IP20 Enclosure, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Light Gray, 3.93 in H x 0.47 in W x 2.71 in D Dimensions
753-434 Application
For marine applications753-434 Standards
RoHS Compliant|CE|IP20SKU #2315944Part Number #753-434UNSPSC32151702UPC04050821041955
