Part Number # 753-452
SKU # 2256087
Image Disclaimers Message
753-452

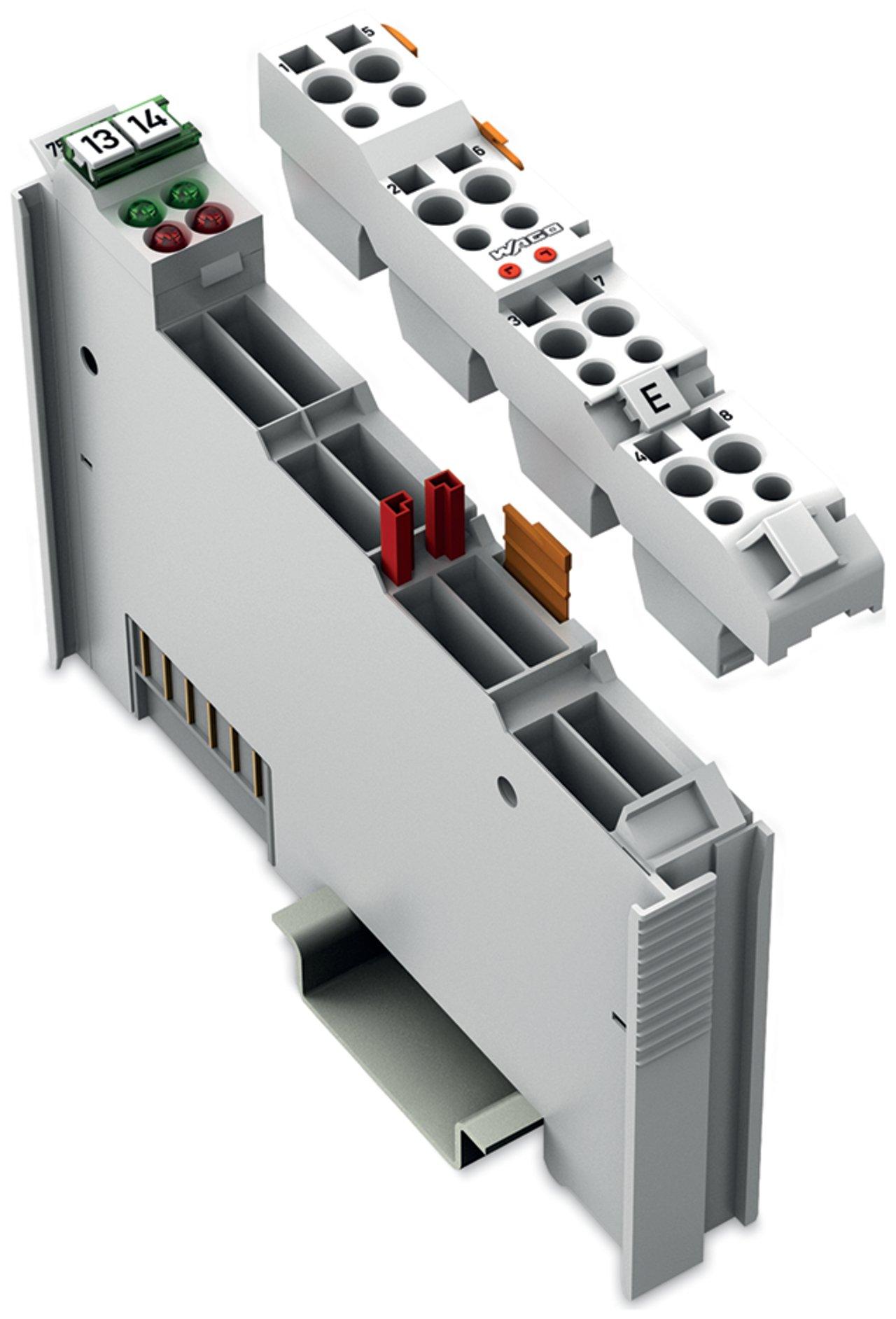

WAGO 753-452 2-channel analog input
Part Number # 753-452
SKU # 2256087
$528.94 / Each
Wago 753-452 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-452 |
| SKU #: | 2256087 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Enclosure Type: | IP20 |
| Input Type: | Analog |
| Type: | 2-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog inputs: | 2 |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Sensor connection: | 2 x (2-wire) |
| Signal characteristic: | Differential |
| Signal type: | Electricity |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 42.000 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454484118 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$528.94 / Each
Quantity:
WAGO 753-452 2-channel analog input
Brand: Wago
Part Number: 753-452
Additional Description: WAGO-753-452 2-CHANNEL ANALOG INPUT; 0 20 MA; DIFFERENTIAL INPUT; LIGHT GRAY 51187052
Catalog Description: 2-channel analog input; 0 … 20 mA; Differential input
753-452 Application
For marine applications753-452 Standards
RoHS Compliant|CE|IP20SKU #2256087Part Number #753-452UNSPSC32151702UPC04045454484118
