Part Number # 753-453
SKU # 2237971
Image Disclaimers Message
Brand: Wago
753-453

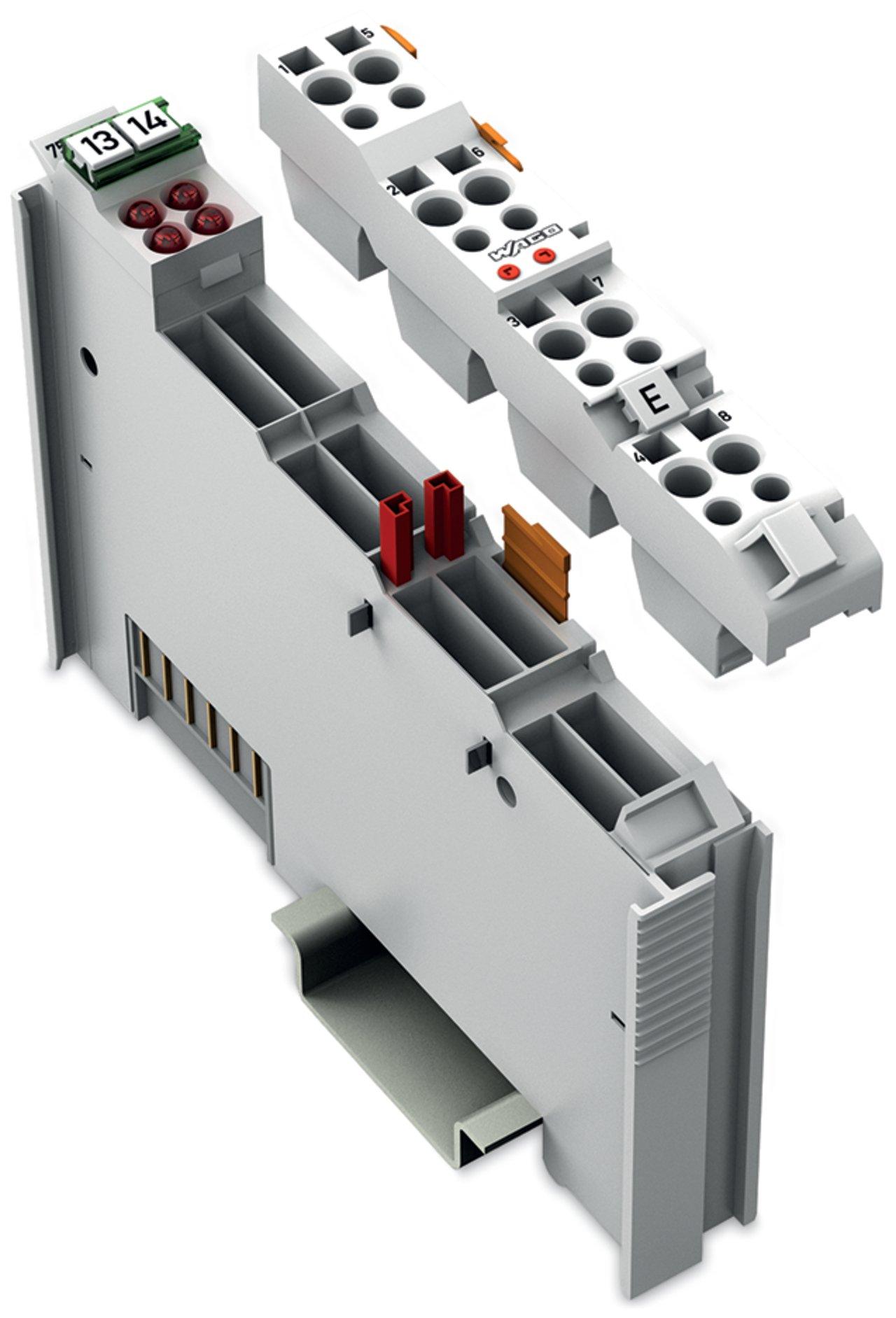

WAGO 753-453 4-channel analog input
Part Number # 753-453
SKU # 2237971
$490.96 / Each
Wago 753-453 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-453 |
| SKU #: | 2237971 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Function: | Input |
| Input Rating: | 24 V DC, 24 VDC |
| Input Type: | Analog |
| Series: | 753 |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 4-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog inputs: | 4 |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Sensor connection: | 4 x (2-wire) |
| Signal characteristic: | Single-ended |
| Signal type: | Electricity |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of channels (module): | 4 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 43.200 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454481940 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$490.96 / Each
Quantity:
- WAGO, 753-453, Analog Input, 4-Channel, Series: 753, Function: Input, Analog Input, 24 V DC Input, 0 to 55 deg C, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Light Gray, 3.93 in H x 0.47 in W x 2.74 in D Dimensions
753-453 Application
For Marine applications753-453 Standards
RoHS CompliantSKU #2237971Part Number #753-453UNSPSC32151702UPC04045454481940
