Brand: Wago

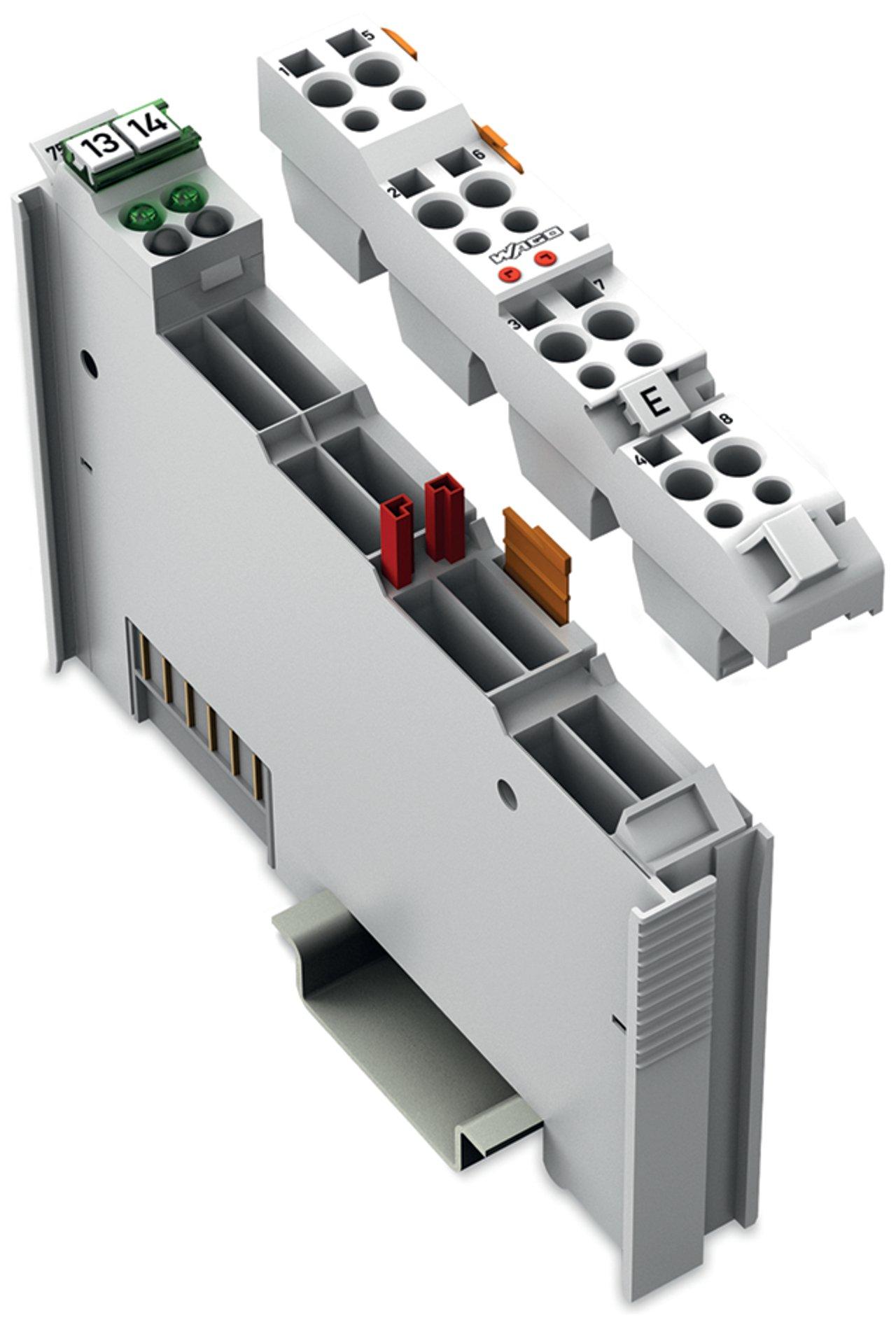

WAGO 753-456 2-channel analog input
Image Disclaimers Message
Brand: Wago
WAGO 753-456 2-channel analog input
Brand: Wago
WAGO 753-456 2-channel analog input
Part #:753-456
SKU #: 2333887
$457.17/EA
Key Features
Part #:753-456
SKU #: 2333887
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$457.17/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 2
Pluggable connector: Yes
Protection type: IP20

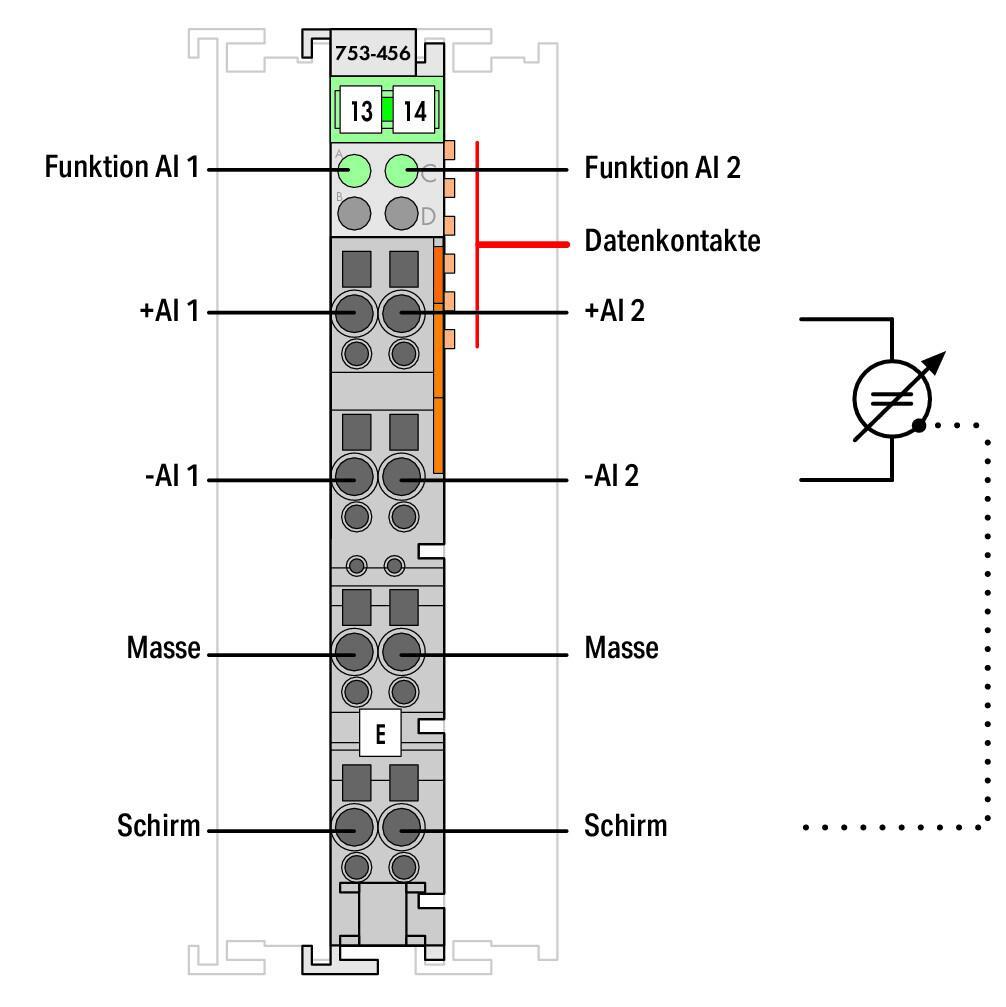

Sensor connection: 2 x (2-wire)
Signal characteristic: Differential
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Total number of channels (module): 2
Vibration resistance: 4g per IEC 60068-2-6
Weight: 41.000 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454481735
WAGO 753-456 2-channel analog input
Additional Description: WAGO-753-456 2-CHANNEL ANALOG INPUT; ±10 VDC; DIFFERENTIAL INPUT; LIGHT GRAY 51186895
Catalog Description: 2-channel analog input; ±10 VDC; Differential input
