Brand: Wago

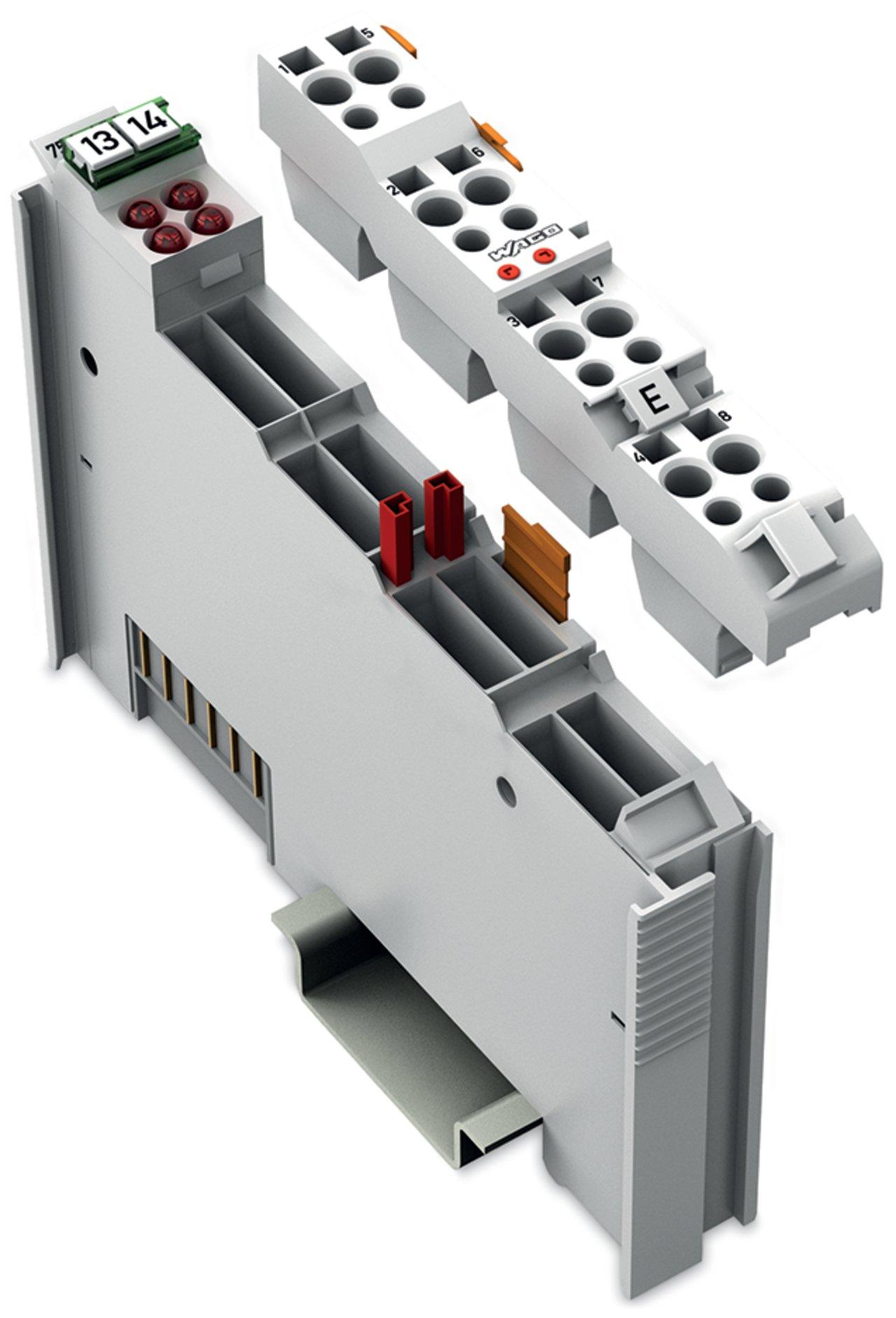

WAGO 753-460 4-channel analog input
Image Disclaimers Message
Brand: Wago
WAGO 753-460 4-channel analog input
Brand: Wago
WAGO 753-460 4-channel analog input
Part #:753-460
SKU #: 2380929
$569.94/EA
Key Features
Part #:753-460
SKU #: 2380929
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$569.94/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Measured current (typ.): 0.5 mA
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of analog inputs: 4
Pluggable connector: Yes
Protection type: IP20
Sensor connection: 4 x (2-wire)
Sensor types: Pt100
Signal type: Resistance measurement
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Temperature range: −200 … +850 °C
Total number of channels (module): 4
Vibration resistance: Per IEC 60068-2-6
Weight: 42.500 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04050821867470
WAGO 753-460 4-channel analog input
Additional Description: WAGO-753-460 4-CHANNEL ANALOG INPUT; FOR 51291845 GRAY
Catalog Description: 4-channel analog input; For Pt100/RTD resistance sensors
