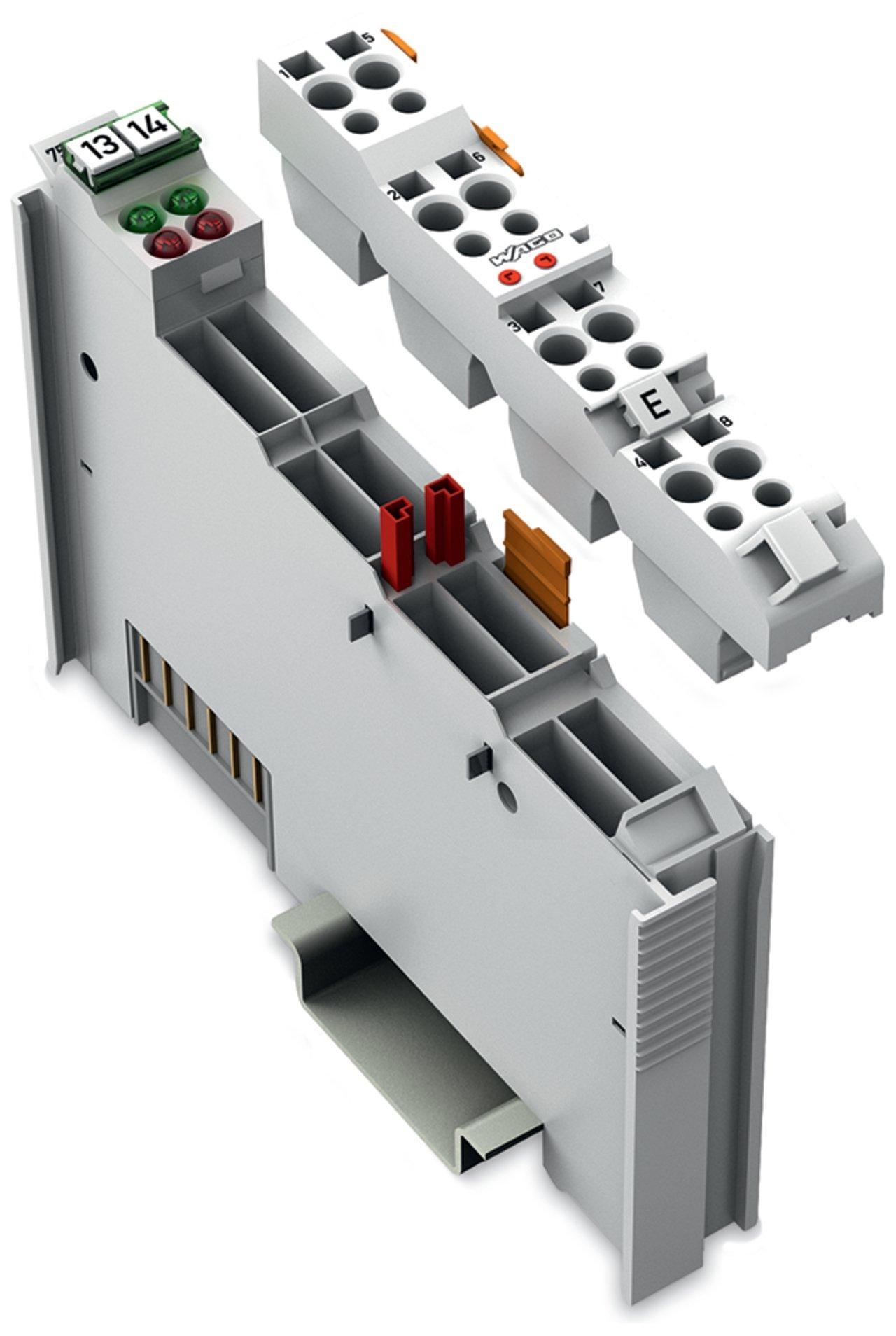

WAGO 753-476 2-channel analog input
Part Number # 753-476
SKU # 2250275
$472.02 / Each
Wago 753-476 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-476 |
| SKU #: | 2250275 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Enclosure Type: | IP20 |
| Input Type: | Analog |
| Type: | 2-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of analog inputs: | 2 |
| Pluggable connector: | Yes |
| Protection type: | IP20 |

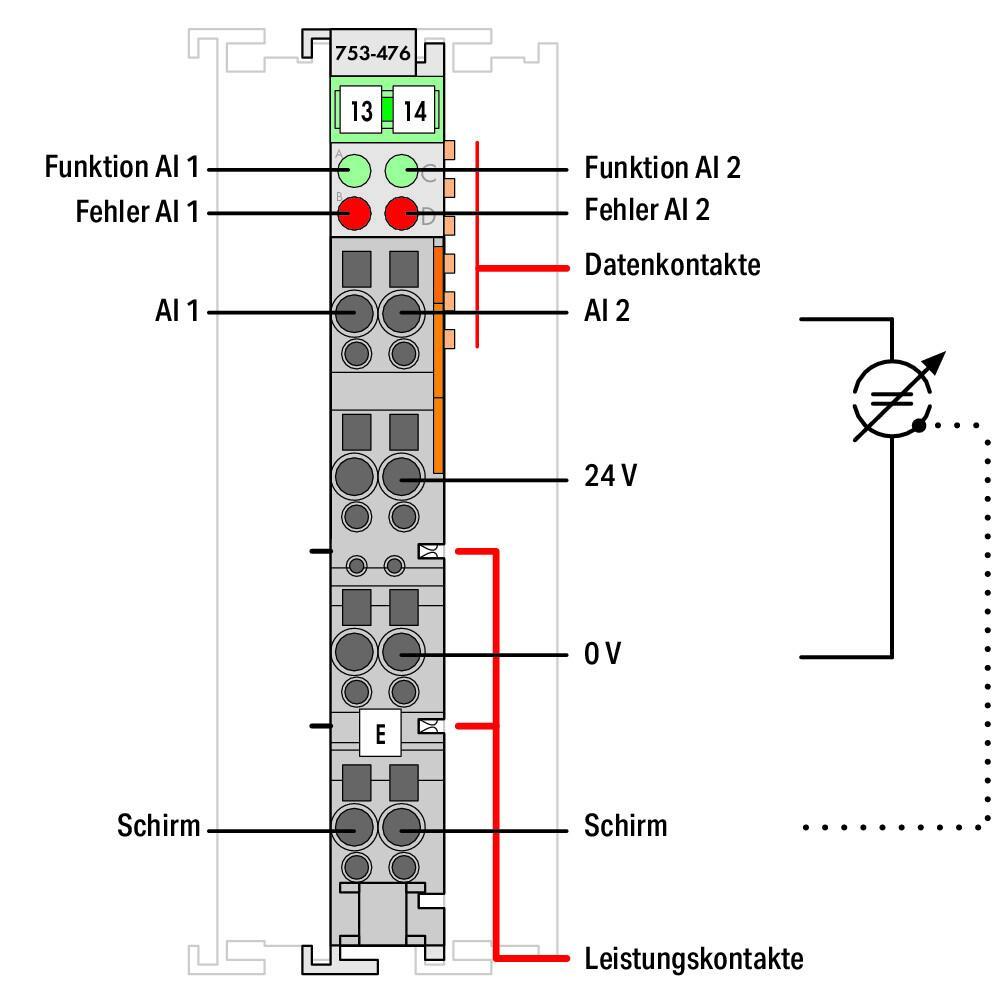

| Sensor connection: | 2 x (2-wire) |
| Signal characteristic: | Single-ended |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 45.982 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454394530 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$472.02 / Each
Quantity:
WAGO 753-476 2-channel analog input
Brand: Wago
Part Number: 753-476
Additional Description: WAGO-753-476 2-CHANNEL ANALOG INPUT; ±10 VDC; SINGLE-ENDED; 16 BITS; LIGHT GRAY 51180959 51180959
Catalog Description: 2-channel analog input; ±10 VDC; Single-ended; 16 bits
753-476 Application
For marine applications753-476 Standards
RoHS Compliant|CE|IP20SKU #2250275Part Number #753-476UNSPSC32151702UPC04045454394530
