Brand: Wago

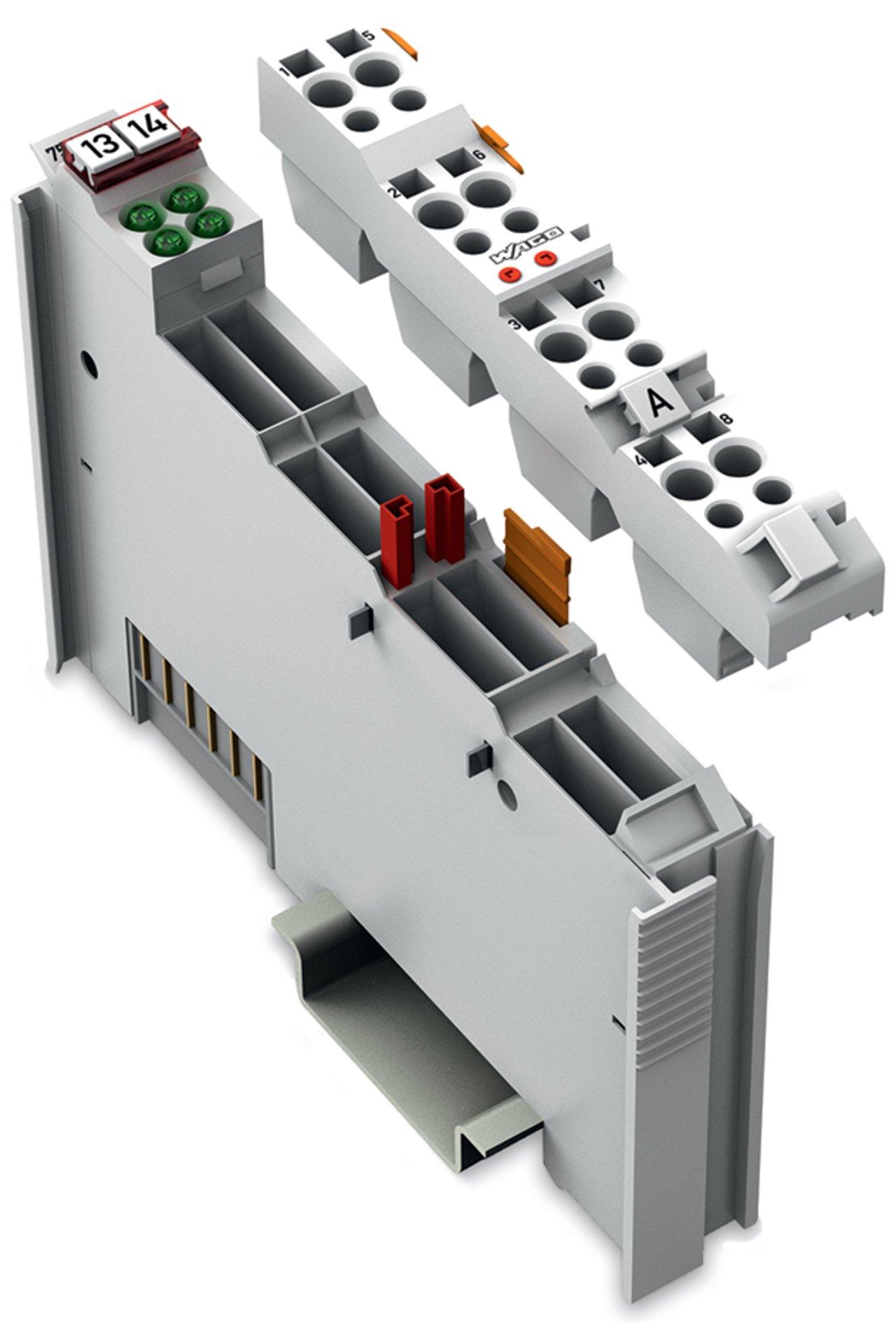

WAGO 753-504 4-channel digital output
Image Disclaimers Message
Brand: Wago
WAGO 753-504 4-channel digital output
Brand: Wago
WAGO 753-504 4-channel digital output
Part #:753-504
SKU #: 2246474
$108.38/EA
Key Features
Part #:753-504
SKU #: 2246474
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
$108.38/EA
Specifications
Brand: Wago
Color: Light gray
Connection technology: 8 x CAGE CLAMP®
Country of origin: DE
Depth: 69.8 mm / 2.748 inch
Height: 100 mm / 3.937 inch
Housing material: Polycarbonate, polyamide 6.6
Isolation: 500 V system/field
Load type: Resistive, inductive, lamp load
Mounting position: Horizontal (standing/lying); vertical
Mounting type: DIN-35 rail
Number of digital outputs: 4
Output characteristic: High-side switching
Output current: Short-circuit-protected
Output current per channel: 0.5 A
Pluggable connector: Yes
Protection type: IP20
Signal type: Voltage
Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
Switching frequency (max.): 1 kHz
Total number of channels (module): 4
Vibration resistance: 4g per IEC 60068-2-6
Weight: 43.036 g
Width: 12 mm / 0.472 inch
UNSPSC: 32151702
UPC: 04045454582364
WAGO 753-504 4-channel digital output
Additional Description: WAGO-753-504 4-CHANNEL DIGITAL OUTPUT; 24 VDC; 0.5 A; LIGHT GRAY 51193053 51193053
Catalog Description: 4-channel digital output; 24 VDC; 0.5 A
