753-506

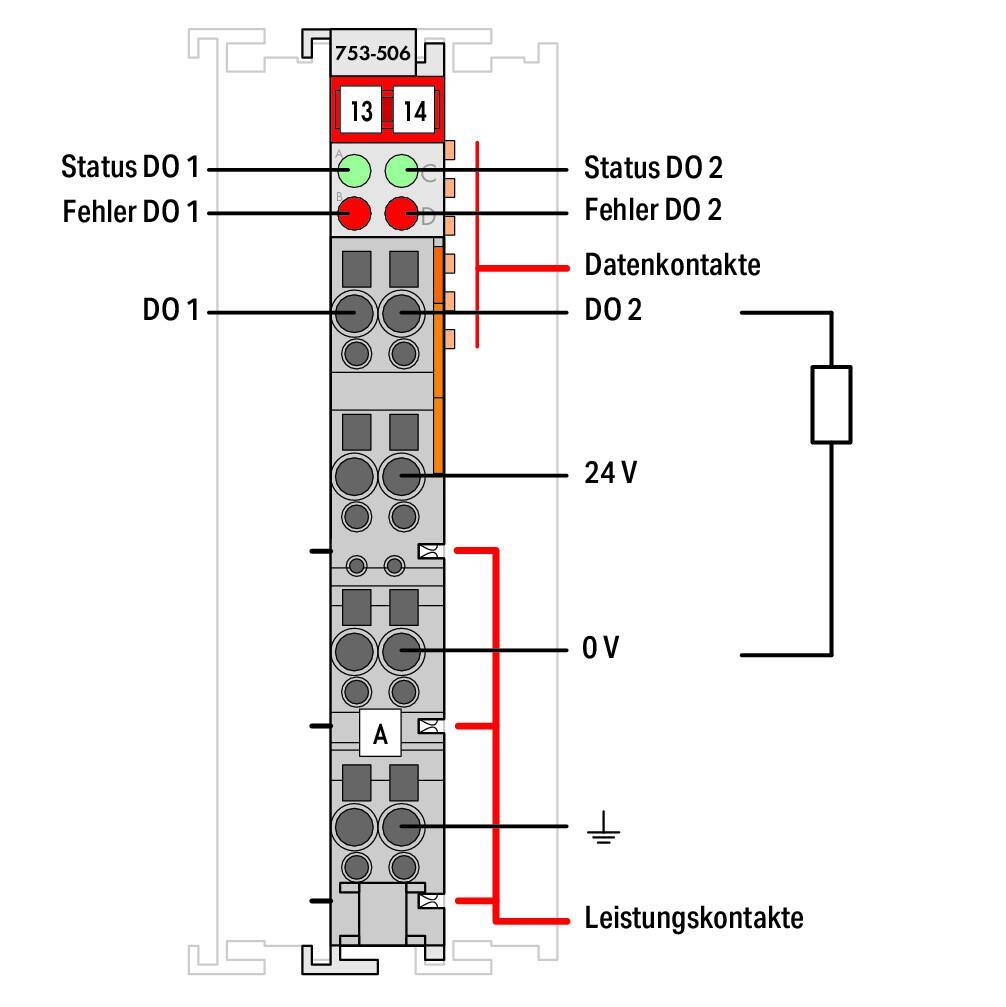

WAGO 753-506 2-channel digital output
Part Number # 753-506
SKU # 2329393
$105.35 / Each
Wago 753-506 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-506 |
| SKU #: | 2329393 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.74 in D |
| Enclosure Type: | IP20 |
| Type: | 2-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 2 bit |
| Isolation: | 500 V system/field |
| Load type: | Resistive, inductive, lamp load |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital outputs: | 2 |
| Open-circuit detection: | 9.5 mA |
| Output characteristic: | High-side switching |
| Output current: | Short-circuit-protected |
| Output current per channel: | 0.5 A |
| Output type: | Digital |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Reverse voltage protection: | No |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency (max.): | 5 kHz |
| Total number of channels (module): | 2 |
| Vibration resistance: | Per IEC 60068-2-6 |
| Weight: | 54.000 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454593254 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$105.35 / Each
Quantity:
WAGO 753-506 2-channel digital output
Brand: Wago
Part Number: 753-506
Additional Description: WAGO-753-506 2-CHANNEL DIGITAL OUTPUT; 24 VDC; 0.5 A; DIAGNOSTICS; LIGHT GRAY 51193830
Catalog Description: 2-channel digital output; 24 VDC; 0.5 A; Diagnostics
753-506 Standards
RoHS Compliant|CE|IP20SKU #2329393Part Number #753-506UNSPSC32151702UPC04045454593254
