Part Number # 753-509
SKU # 2187846
Image Disclaimers Message
753-509

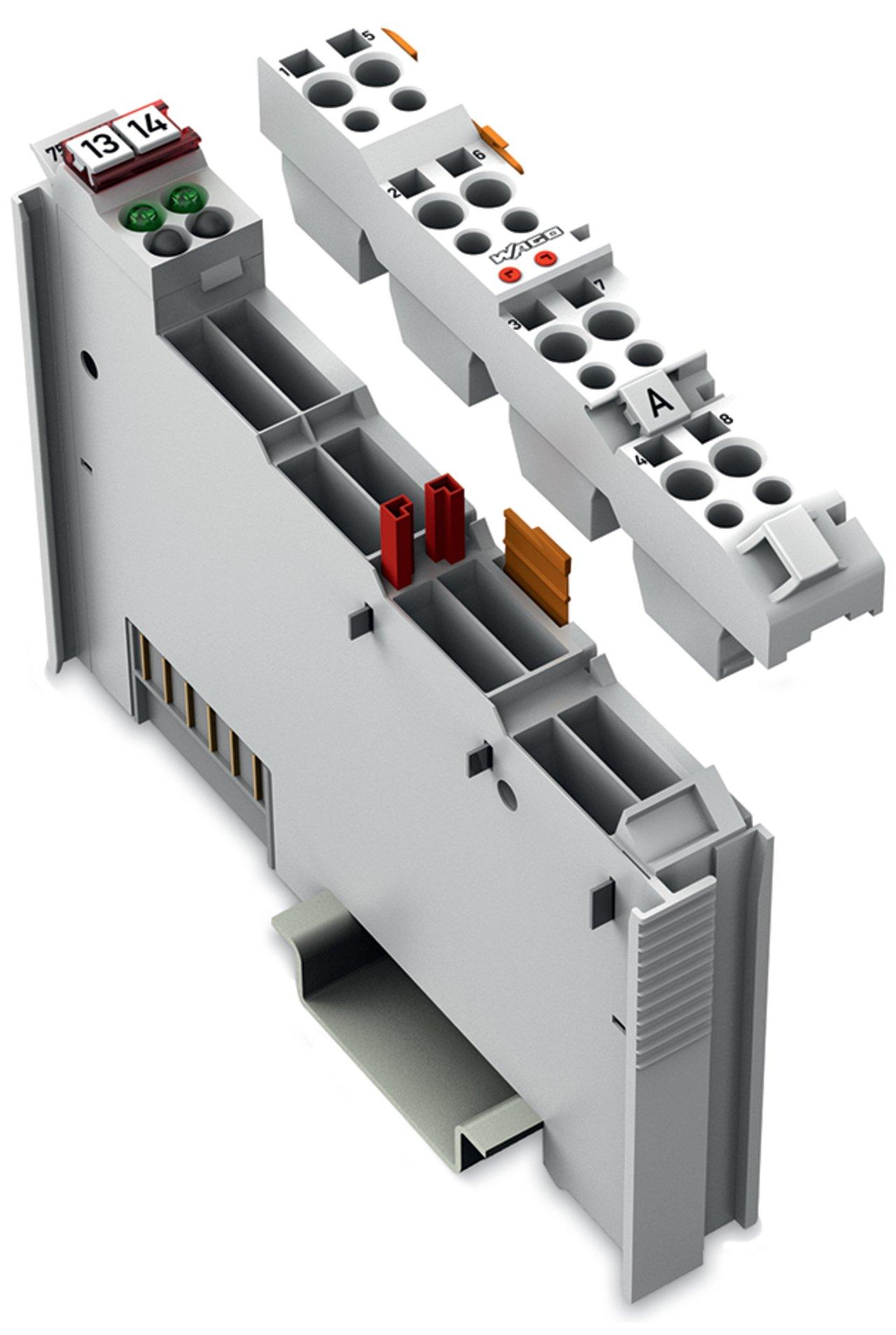

WAGO 753-509 2-channel digital output
Part Number # 753-509
SKU # 2187846
$166.97 / Each
Wago 753-509 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-509 |
| SKU #: | 2187846 |
| Dimensions: | 100 mm H x 12 mm W x 69.8 mm D |
| Electrical Connections: | Plug-In |
| Enclosure Type: | IP20 |
| Series: | 753 |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 2 Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69.8 mm / 2.748 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 1500 V (system/field) |
| Load type: | Resistive, inductive |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN Rail, DIN-35 rail |
| Number of digital outputs: | 2 |
| Output characteristic: | Non-floating |
| Output current per channel: | 0.3 A |
| Output type: | Digital |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency (max.): | 5 Hz; 24 V; 0.3 A; DF = 50 % |
| Switching frequency (max.) (2): | 0.5 Hz; 230 V; 0.3 A; DF = 50 % |
| Total number of channels (module): | 2 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 46.923 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454394554 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$166.97 / Each
Quantity:
WAGO 753-509 2-channel digital output
Brand: Wago
Part Number: 753-509
Additional Description: WAGO-753-509 2-CHANNEL DIGITAL OUTPUT; 230 VAC; 0.3 A; SOLID-STATE; LIGHT GRAY 51180961
Catalog Description: 2-channel digital output; 230 VAC; 0.3 A; Solid-state
SKU #2187846Part Number #753-509UNSPSC32151702UPC04045454394554
