Part Number # 753-534
SKU # 2315945
Image Disclaimers Message
753-534

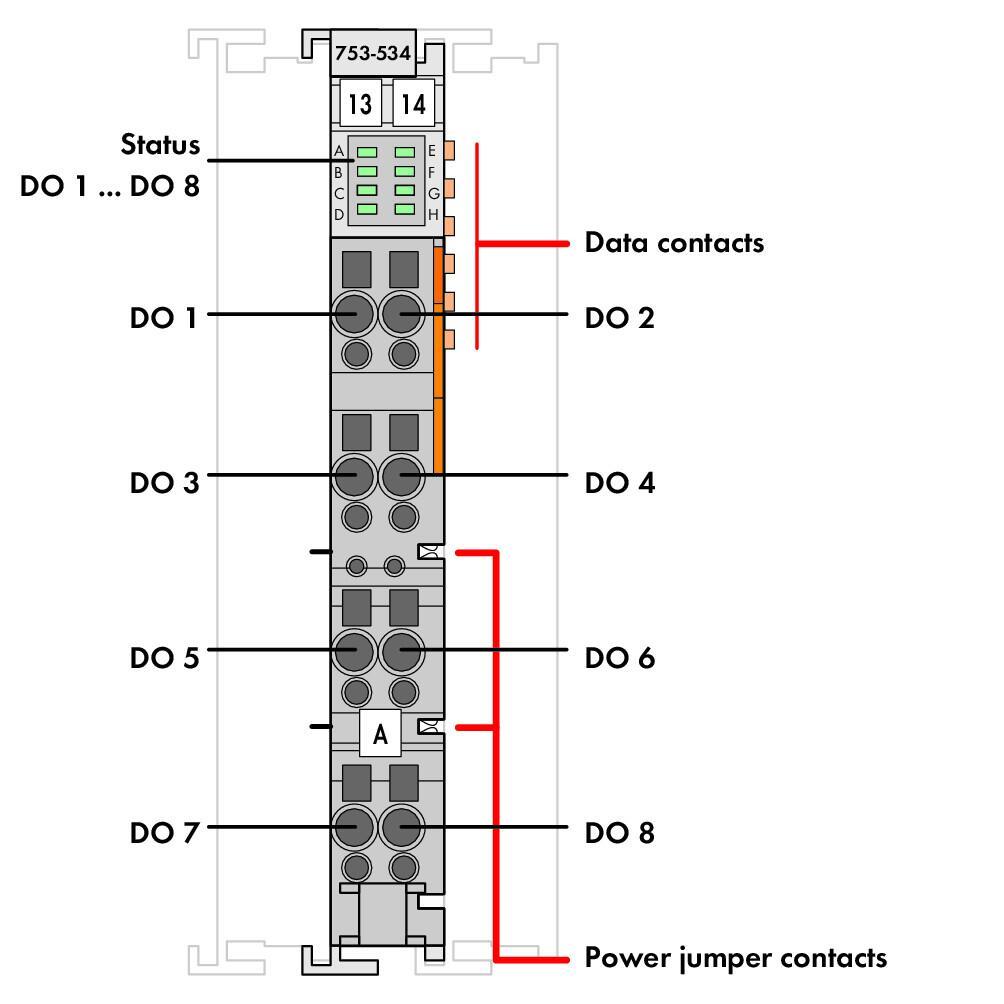

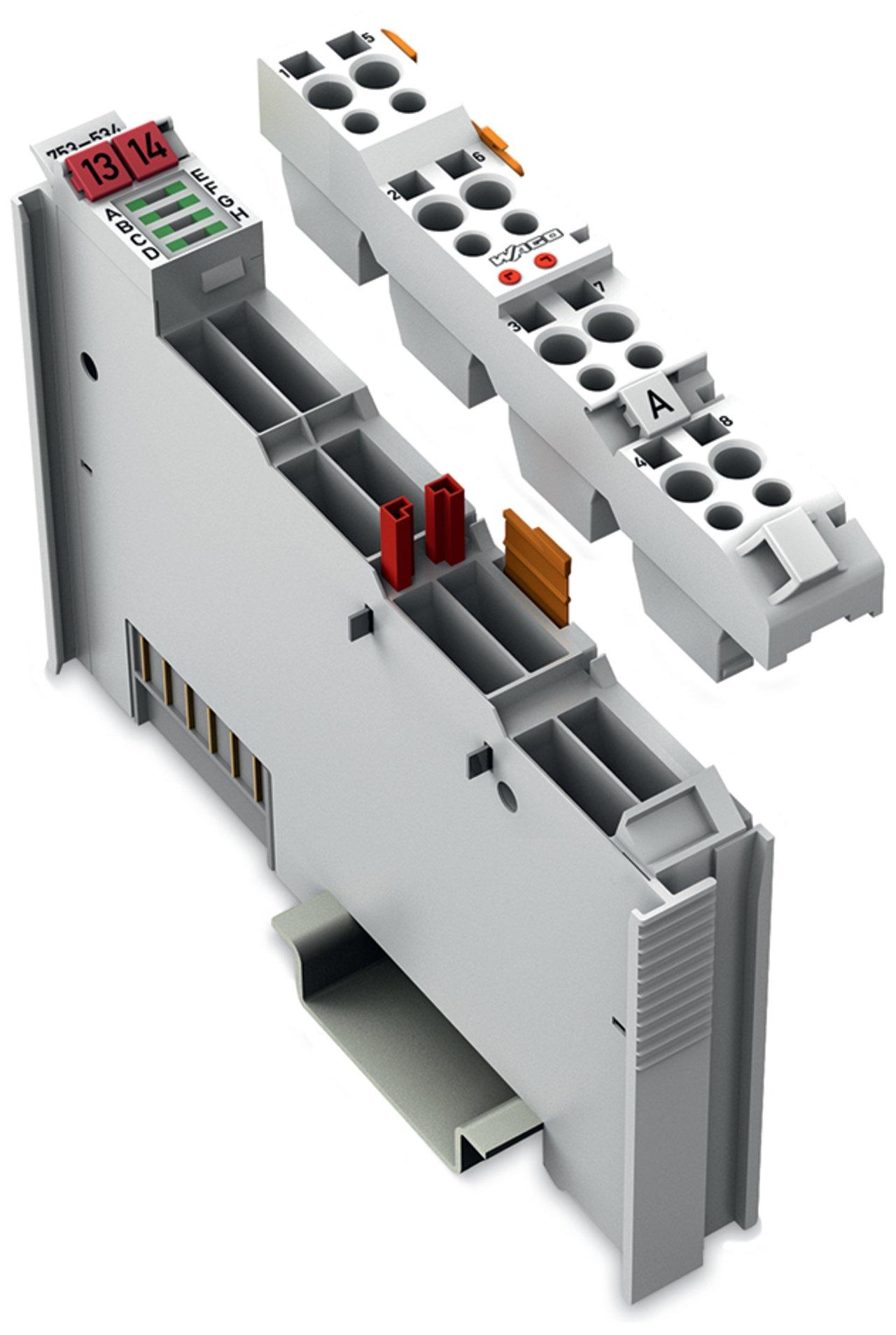

WAGO 753-534 8-channel digital output
Part Number # 753-534
SKU # 2315945
$195.21 / Each
Wago 753-534 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 753-534 |
| SKU #: | 2315945 |
| Dimensions: | 3.93 in H x 0.47 in W x 2.71 in D |
| Enclosure Type: | IP20 |
| Type: | 8-Channel |
| Color: | Light gray |
| Connection technology: | 8 x CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Isolation: | 500 V system/field |
| Load type: | Resistive, inductive |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | 35 mm DIN Rail, DIN-35 rail |
| Number of digital outputs: | 8 |
| Output characteristic: | High-side switching |
| Output current: | Short-circuit-protected |
| Output current per channel: | 0.0416666666666667 |
| Output type: | Digital |
| Pluggable connector: | Yes |
| Protection type: | IP20 |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Switching frequency (max.): | 2 kHz |
| Total number of channels (module): | 8 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 42.041 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454261016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$195.21 / Each
Quantity:
- WAGO, 753-534, Digital Input, 8-Channel, Digital Output, IP20 Enclosure, 35 mm DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Light Gray, 3.93 in H x 0.47 in W x 2.71 in D Dimensions
753-534 Application
For marine applications753-534 Standards
RoHS Compliant|CE|IP20SKU #2315945Part Number #753-534UNSPSC32151702UPC04045454261016
