Part Number # 756-1300/000-250
SKU # 2271450
Image Disclaimers Message
756-1300/000-250

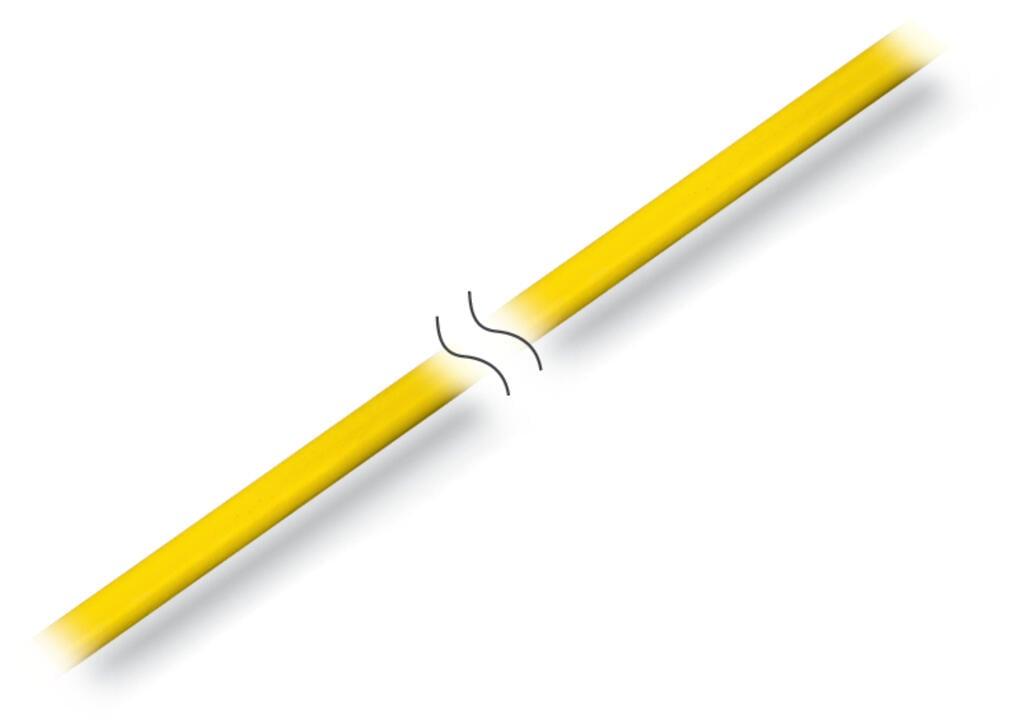

WAGO 756-1300/000-250 System bus cable
Part Number # 756-1300/000-250
SKU # 2271450
$0.00 / Each
Typical price:$196.10 / Each
Wago 756-1300/000-250 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 756-1300/000-250 |
| SKU #: | 2271450 |
| Number of Poles: | 5 |
| Wire Pin Colors: | Yellow |
| Bending radius: | 5 x cable diameter (min.) |
| Cable length: | 25 m |
| Color: | Yellow |
| Conductor insulation: | Zell-PE; Core Ø: 1.0 mm (max.) |
| Connection type: | Free end - Free end |
| Country of origin: | DE |
| Insulation resistance: | 5000 MΩ |
| Operating current: | 0.166666666666667 |
| Operating voltage: | 125 V |
| Protection type: | IP67 |
| Shield: | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % |
| Type code: | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
| Weight: | 9.999 g |
| Wire colors: | White-blue, blue, white-orange, orange, white-green, green, white-brown, brown |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454779467 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / Each
Typical price:$196.10 / Each
Quantity:
- WAGO, 756-1300/000-250, Connection Cable, 25 m Cable Length, 5 Pole, 125 V, Yellow Wire Pin
756-1300/000-250 Item Features
- PUR, halogen-free
- Silicon- and CFC-free
- High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
- High chemical resistance
756-1300/000-250 Standards
RoHS Compliant|IP67|UL ListedSKU #2271450Part Number #756-1300/000-250UNSPSC32151702UPC04045454779467
