756-1505/060-002
WAGO 756-1505/060-002 System bus cable for drag chain
Part Number # 756-1505/060-002
SKU # 2298133
$0.00 / Each
Typical price:$59.86 / Each
Wago 756-1505/060-002 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 756-1505/060-002 |
| SKU #: | 2298133 |
| Connector Size: | M12 |
| Number of Poles: | 5 |
| Wire Pin Colors: | Yellow |
| Bending radius: | 5 x cable diameter (min.) |
| Cable length: | 0.2 m |
| Conductor insulation: | FEP; Core Ø: 1.0 mm (max.) |

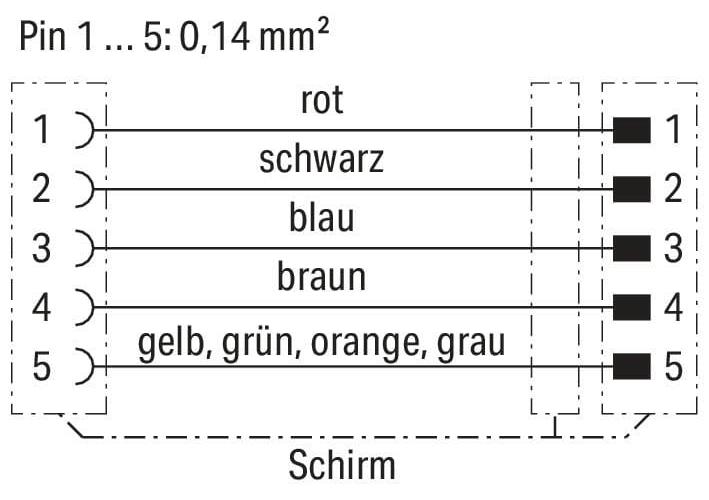

| Connection type: | M12 socket - M12 plug |
| Contact material: | CuZn |
| Country of origin: | DE |
| Housing material: | TPU/TPU, black (~ RAL 9005) |
| Insulation resistance: | 5000 MΩ |
| Operating current: | 0.166666666666667 |
| Operating voltage: | 60 V |
| Protection type: | IP67 |
| Shield: | Tinned copper braid, optical coverage approx. 90 % |
| Type code: | KS-6Y3GC11Y 4x2xAWG26/19 shielded |
| Weight: | 45.000 g |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821130956 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.00 / Each
Typical price:$59.86 / Each
Quantity:
- WAGO, 756-1505/060-002, Connection Cable, M12 Connector, 5 Pole, 60 V, Yellow Wire Pin
756-1505/060-002 Application
Suitable for drag chains756-1505/060-002 Item Features
- PUR, halogen-free
- Silicon- and CFC-free
- High resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistance
756-1505/060-002 Standards
RoHS Compliant|IP67SKU #2298133Part Number #756-1505/060-002UNSPSC32151702UPC04050821130956
