Part Number # 757-145
SKU # 2234325
Image Disclaimers Message
757-145
WAGO 757-145 M12 sensor/actuator box
Part Number # 757-145
SKU # 2234325
$105.45 / Each
Wago 757-145 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 757-145 |
| SKU #: | 2234325 |

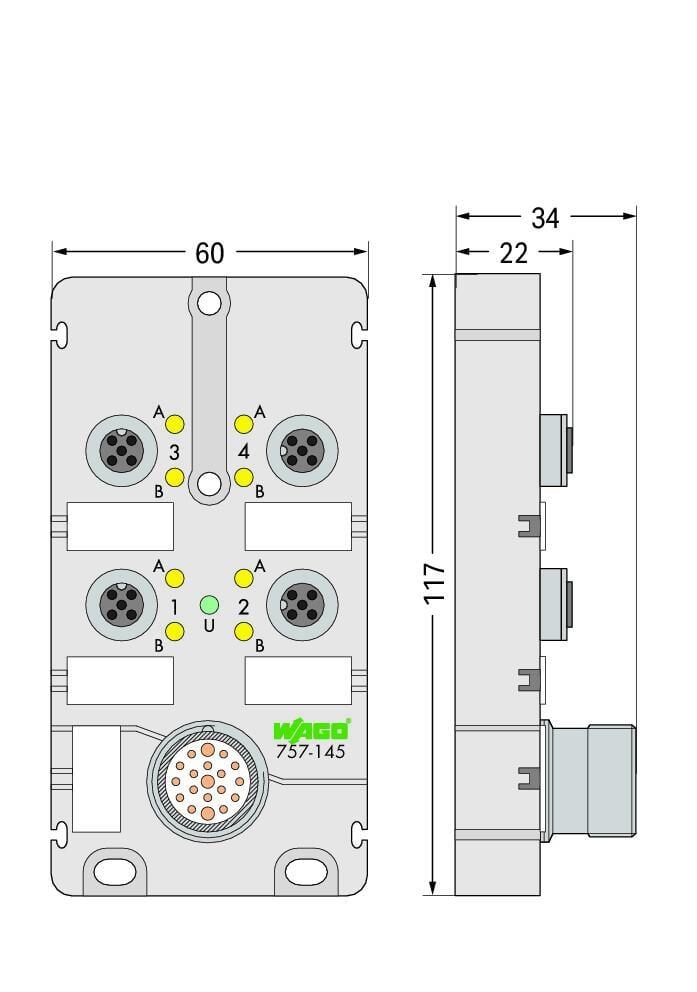

| Dimensions: | 1.339 in H x 2.362 in W x 4.606 in D |
| Number of Poles: | 5 |
| Connection technology: | 1 x M23 plug; 19-pole, 4 x M12 socket; 5-pole; incl. ground |
| Country of origin: | DE |
| Depth: | 117 mm / 4.606 inch |
| Halogen-free: | Yes |
| Height: | 34 mm / 1.339 inch |
| Housing material: | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
| Insulation resistance: | 1000 MΩ |
| Material: | Polyamide |
| Mounting type: | Fastened, Screw, Screw mount |
| Protection type: | IP67 |
| Signal characteristic: | PNP |
| Supply voltage: | DC 10 … 30 V; Rated voltage: 32 V ~ rms |
| Vibration resistance: | Per IEC 60068-2-6 |
| Width: | 60 mm / 2.362 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821054320 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$105.45 / Each
Quantity:
WAGO 757-145 M12 sensor/actuator box
Brand: Wago
Part Number: 757-145
Additional Description: WAGO-757-145 M12 SENSOR/ACTUATOR BOX; 4-WAY; 5-POLE; M23 CONNECTOR 51227927
Catalog Description: M12 sensor/actuator box; 4-way; 5-pole; M23 connector
757-145 Item Features
- M12 sensor/actuator box, 4-way
- 5-pole (2 signals per contact)
- M23 connector (19 in pole)
- Green LED operating indicator
- Yellow LED status indicator
757-145 Standards
RoHS Compliant|IP67SKU #2234325Part Number #757-145UNSPSC32151702UPC04050821054320
