757-164

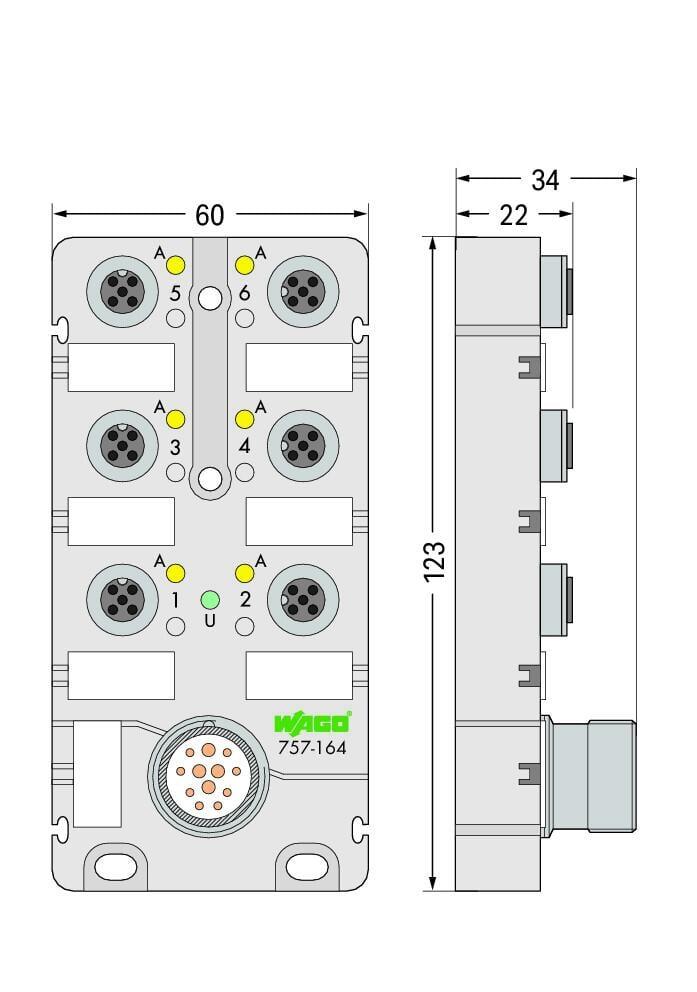

WAGO 757-164 M12 sensor/actuator box
Part Number # 757-164
SKU # 2264397
$100.43 / Each
Wago 757-164 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 757-164 |
| SKU #: | 2264397 |
| Dimensions: | 1.339 in H x 2.362 in W x 4.843 in D |
| Number of Poles: | 4 |
| Connection technology: | 1 x M23 plug; 12-pole, 6 x M12 socket; 4-pole; incl. ground |
| Country of origin: | DE |
| Depth: | 123 mm / 4.843 inch |
| Halogen-free: | Yes |
| Height: | 34 mm / 1.339 inch |
| Housing material: | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
| Insulation resistance: | 1000 MΩ |
| Material: | Polyamide |
| Mounting type: | Fastened, Screw, Screw mount |
| Protection type: | IP67 |
| Signal characteristic: | PNP |
| Supply voltage: | DC 10 … 30 V; Rated voltage: 32 V ~ rms |
| Vibration resistance: | Per IEC 60068-2-6 |
| Width: | 60 mm / 2.362 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04050821054290 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$100.43 / Each
Quantity:
- WAGO, 757-164, Sensor/Actuator Box, 4 Pole, Fastened Mounting, Polyamide, 1.339 in H x 2.362 in W x 4.843 in D Dimensions
757-164 Item Features
- M12 sensor/actuator box, 6-way
- 4-pole (1 signal per contact)
- M23 connector (12 in pole)
- Green LED operating indicator
- Yellow LED status indicator
757-164 Standards
RoHS Compliant|IP67SKU #2264397Part Number #757-164UNSPSC32151702UPC04050821054290
