Part #:757-265/000-005
SKU #: 2314573
$139.56/EA
Key Features
Part #:757-265/000-005
SKU #: 2314573
Brand: Wago
Bending radius: 10 x cable diameter (min.) for flexible application
Cable design: Wire cross-section: 0.34 mm²; Wire cross-section 2: 1 mm²
Connection technology: 1 x Fixed connecting cable, 6 x M12 socket; 5-pole; incl. ground
Country of origin: DE
Depth: 123 mm / 4.843 inch
$139.56/EA
Specifications
Brand: Wago
Bending radius: 10 x cable diameter (min.) for flexible application
Cable design: Wire cross-section: 0.34 mm²; Wire cross-section 2: 1 mm²
Connection technology: 1 x Fixed connecting cable, 6 x M12 socket; 5-pole; incl. ground
Country of origin: DE
Depth: 123 mm / 4.843 inch
Halogen-free: Yes
Height: 26 mm / 1.024 inch
Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
Insulation resistance: 1000 MΩ
Length of connecting cable: 5 m
Mounting type: Screw mount
Protection type: IP68
Sheath material: PUR
Signal characteristic: PNP
Supply voltage: DC 10 … 30 V; Rated voltage: 32 V ~ rms
Vibration resistance: Per IEC 60068-2-6
Width: 60 mm / 2.362 inch
Wire colors: White, gray/pink, green, red/blue, yellow, white/green, gray, brown/green, pink, white/yellow, red, yellow/brown, green/yellow, brown, blue
UNSPSC: 32151702
UPC: 04045454028435

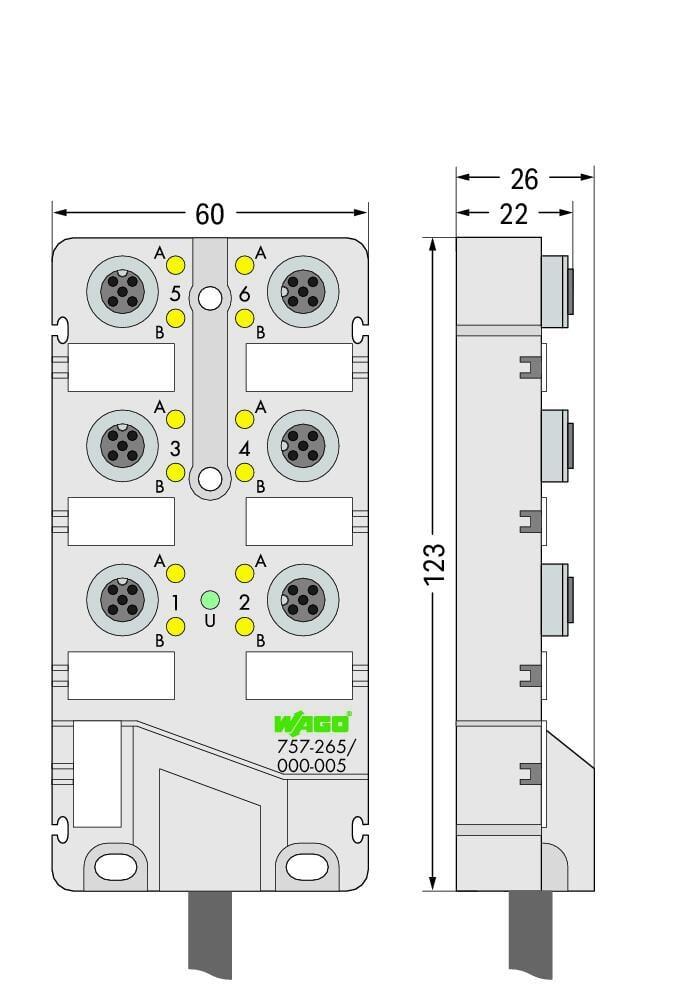

WAGO 757-265/000-005 M12 sensor/actuator box
Additional Description: WAGO-757-265/000-005 M12 SENSOR/ACTUATOR BOX; 6-WAY; 5-POLE; 5M CONNECTING CABLE 51157477 51157477
Catalog Description: M12 sensor/actuator box; 6-way; 5-pole; 5 m
