Part Number # 757-284/000-005
SKU # 1602168
Image Disclaimers Message
757-284/000-005

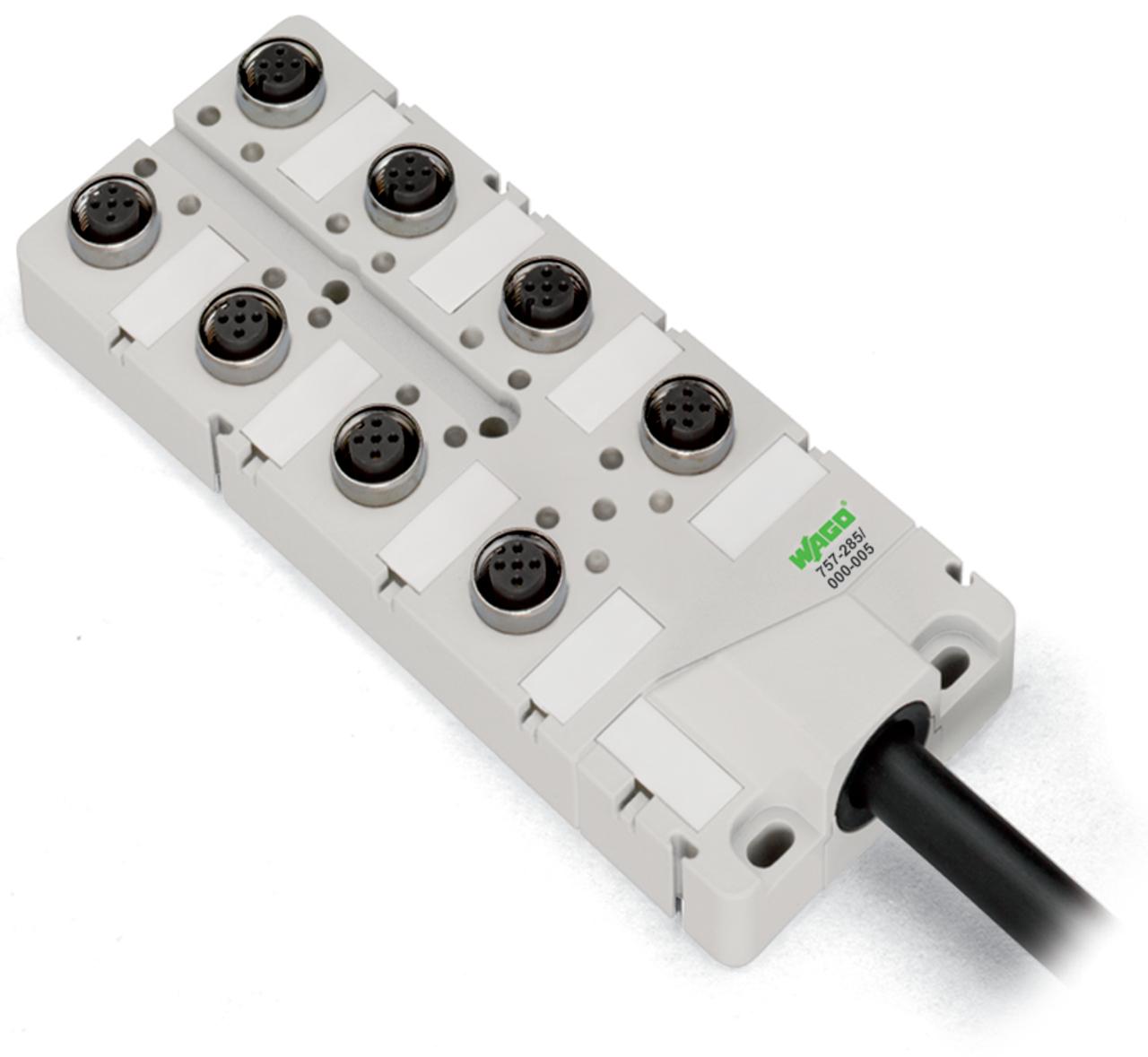

WAGO 757-284/000-005 M12 sensor/actuator box
Part Number # 757-284/000-005
SKU # 1602168
$139.24 / Each
Wago 757-284/000-005 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 757-284/000-005 |
| SKU #: | 1602168 |

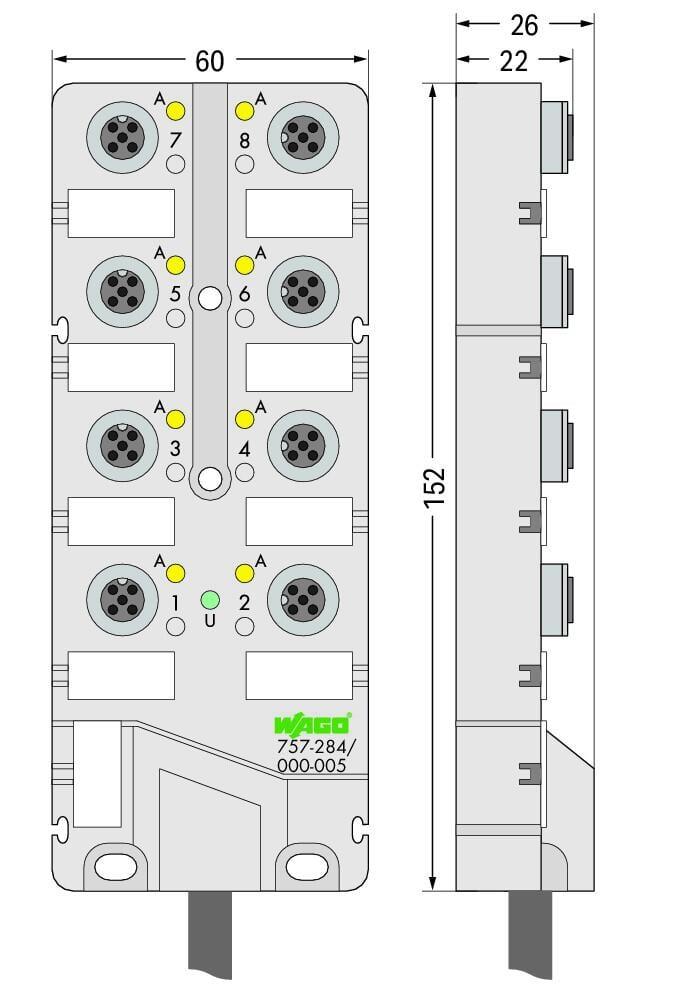

| Dimensions: | 1.024 in H x 2.362 in W x 5.984 in D |
| Number of Poles: | 4 |
| Bending radius: | 10 x cable diameter (min.) for flexible application |
| Cable design: | Wire cross-section: 0.34 mm²; Wire cross-section 2: 1 mm² |
| Color: | Black |
| Connection technology: | 1 x Fixed connecting cable, 8 x M12 socket; 4-pole; incl. ground |
| Country of origin: | DE |
| Depth: | 152 mm / 5.984 inch |
| Halogen-free: | Yes |
| Height: | 26 mm / 1.024 inch |
| Housing material: | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
| Insulation resistance: | 1000 MΩ |
| Length of connecting cable: | 5 m |
| Material: | Polyamide |
| Mounting type: | Fastened, Screw, Screw mount |
| Protection type: | IP68 |
| Sheath material: | PUR |
| Signal characteristic: | PNP |
| Supply voltage: | DC 10 … 30 V; Rated voltage: 32 V ~ rms |
| Vibration resistance: | Per IEC 60068-2-6 |
| Width: | 60 mm / 2.362 inch |
| Wire colors: | White, green, yellow, gray, pink, red, black, purple, green/yellow, brown, blue |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454028466 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$139.24 / Each
Quantity:
- WAGO, 757-284/000-005, Sensor/Actuator Box, 4 Pole, 3.94 in Wire Strip Length, Fastened Mounting, Polyamide, Black, 1.024 in H x 2.362 in W x 5.984 in D Dimensions
757-284/000-005 Item Features
- M12 sensor/actuator box, 8-way
- 4-pole (1 signal per contact)
- Green LED operating indicator
- Yellow LED status indicator
757-284/000-005 Standards
RoHS Compliant|IP68SKU #1602168Part Number #757-284/000-005UNSPSC32151702UPC04045454028466
