Brand: Wago

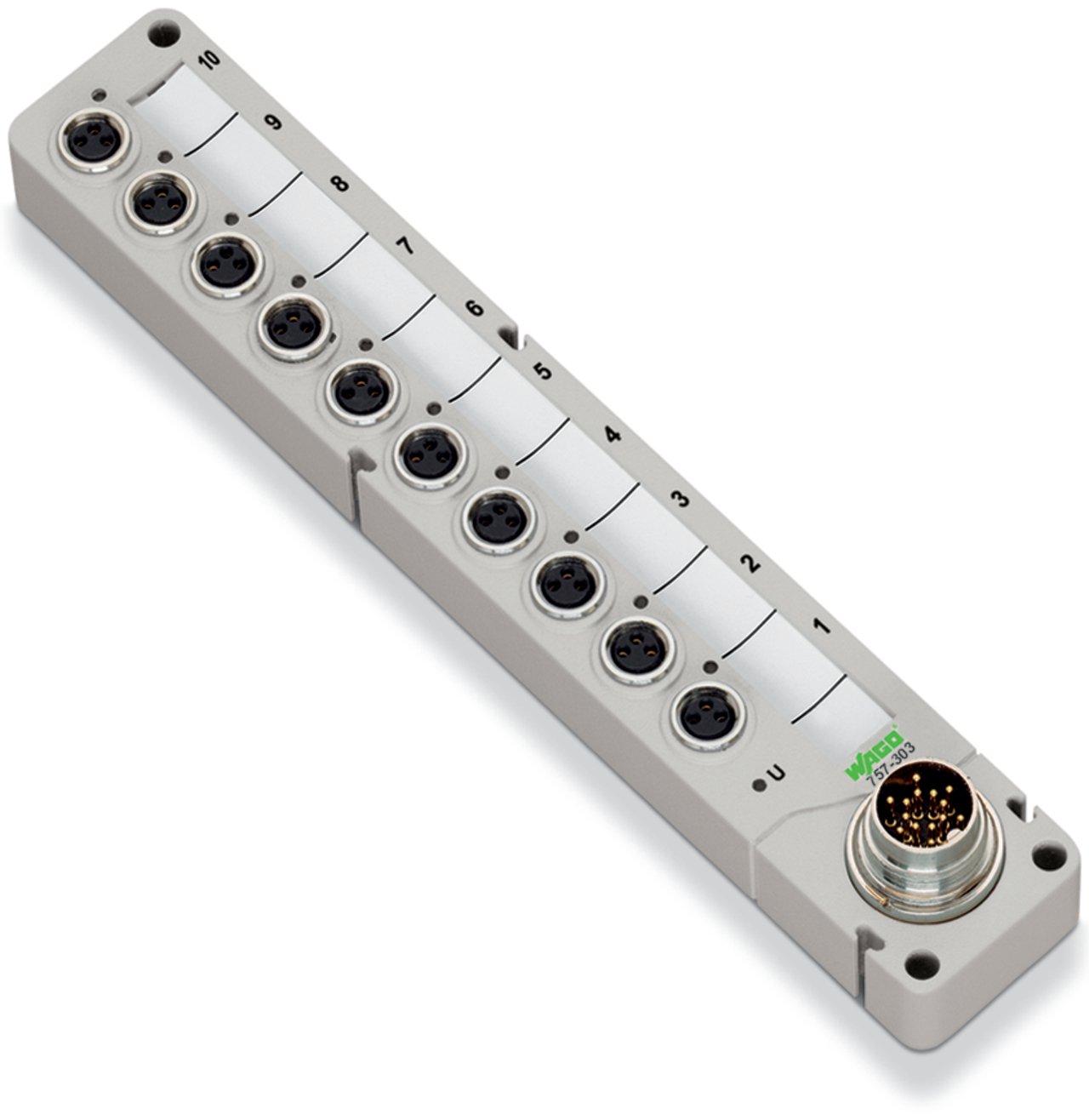

WAGO 757-303 M8 sensor/actuator box
Image Disclaimers Message
Brand: Wago
WAGO 757-303 M8 sensor/actuator box
Brand: Wago
WAGO 757-303 M8 sensor/actuator box
Part #:757-303
SKU #: 2268477
$115.70/EA
Key Features
Part #:757-303
SKU #: 2268477
Brand: Wago
Dimensions: 1.024 in H x 1.181 in W x 6.89 in D
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 80 deg C
Voltage Rating: 10 to 30 VDC
Connection technology: 1 x M16 plug; 14-pole, 10 x M8 socket; 3-pole
$115.70/EA
Specifications
Brand: Wago
Dimensions: 1.024 in H x 1.181 in W x 6.89 in D
Number of Poles: 3
Temperature Rating (Degrees F): -25 to 80 deg C
Voltage Rating: 10 to 30 VDC
Connection technology: 1 x M16 plug; 14-pole, 10 x M8 socket; 3-pole
Country of origin: DE
Depth: 175 mm / 6.89 inch
Halogen-free: Yes
Height: 26 mm / 1.024 inch
Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
Insulation resistance: 1000 MΩ
Material: Polyamide 6.6
Mounting type: Screw, Screw mount
Protection type: IP67
Signal characteristic: PNP
Supply voltage: DC 10 … 30 V; Rated voltage: 32 V ~ rms
Vibration resistance: Per IEC 60068-2-6
Width: 30 mm / 1.181 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04044918978705
WAGO 757-303 M8 sensor/actuator box
Additional Description: WAGO-757-303 M8 SENSOR/ACTUATOR BOX; 10-WAY; 3-POLE; M16 CONNECTOR 7570303 WAY/3P NO LEAD 07570303
Catalog Description: M8 sensor/actuator box; 10-way; 3-pole; M16 connector
Item FeaturesRoHS Compliant|IEC 60068-2-6/27|IP67
