WAGO 757-463/000-005 M8 sensor/actuator box
Part Number # 757-463/000-005
SKU # 2291446
$115.08 / Each
Wago 757-463/000-005 Key Features
Brand: Wago
Part Number # 757-463/000-005
SKU #2291446

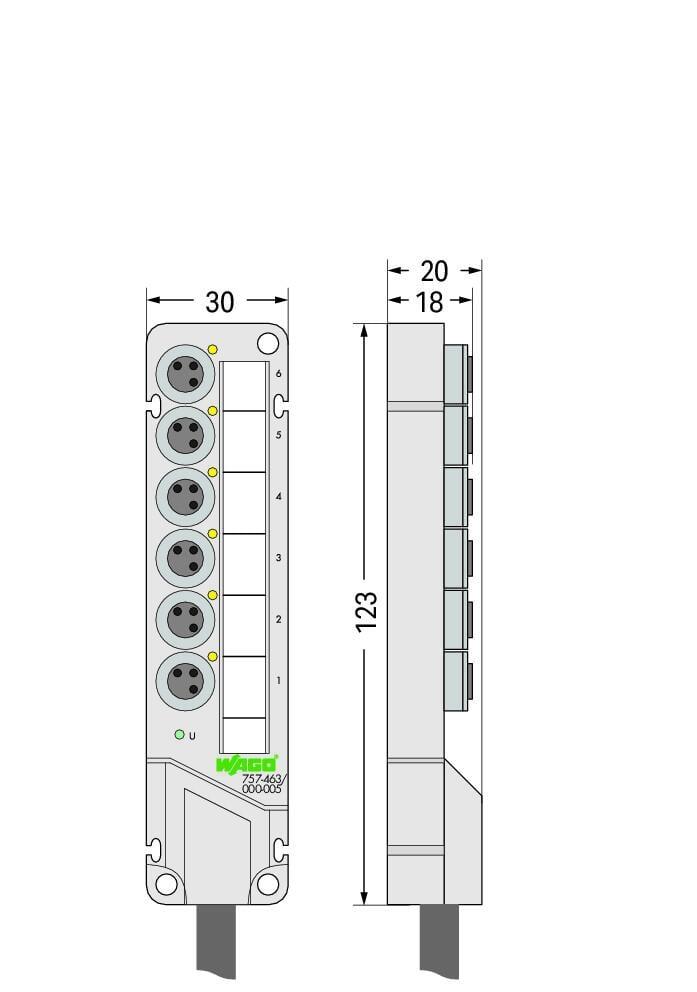

Dimensions: 0.787 in H x 1.181 in W x 4.843 in D
Number of Poles: 3
Bending radius: 10 x cable diameter (min.) for flexible application
Cable design: Wire cross-section: 0.34 mm²; Wire cross-section 2: 0.75 mm²
Color: Black
Connection technology: 1 x Fixed connecting cable, 6 x M8 socket; 3-pole
Country of origin: DE
Depth: 123 mm / 4.843 inch
Halogen-free: Yes
Height: 20 mm / 0.787 inch
Housing material: PA 66 (UL 94 V0); RAL 7035; silicon and halogen free
Insulation resistance: 1000 MΩ
Length of connecting cable: 5 m
Material: Polyamide
Mounting type: Screw, Screw mount
Protection type: IP68
Sheath material: PUR
Signal characteristic: PNP
Supply voltage: DC 10 … 30 V; Rated voltage: 32 V ~ rms
Vibration resistance: Per IEC 60068-2-6
Width: 30 mm / 1.181 inch
Wire colors: White, green, yellow, gray, pink, red, brown, blue
Manufacturer Name: WAGO Corporation
UNSPSC: 32151702
UPC: 04044918978613
$115.08 / Each
- WAGO, 757-463/000-005, Sensor/Actuator Box, 3 Pole, 3.94 in Wire Strip Length, Screw Mounting, Polyamide, Black, 0.787 in H x 1.181 in W x 4.843 in D Dimensions
757-463/000-005 Item Features
- M8 sensor/actuator box, 6-way
- 3-pole (1 signal per contact)
- Green LED operating indicator
- Yellow LED status indicator
757-463/000-005 Standards
RoHS Compliant|IP68SKU #2291446Part Number #757-463/000-005UNSPSC32151702UPC04044918978613
