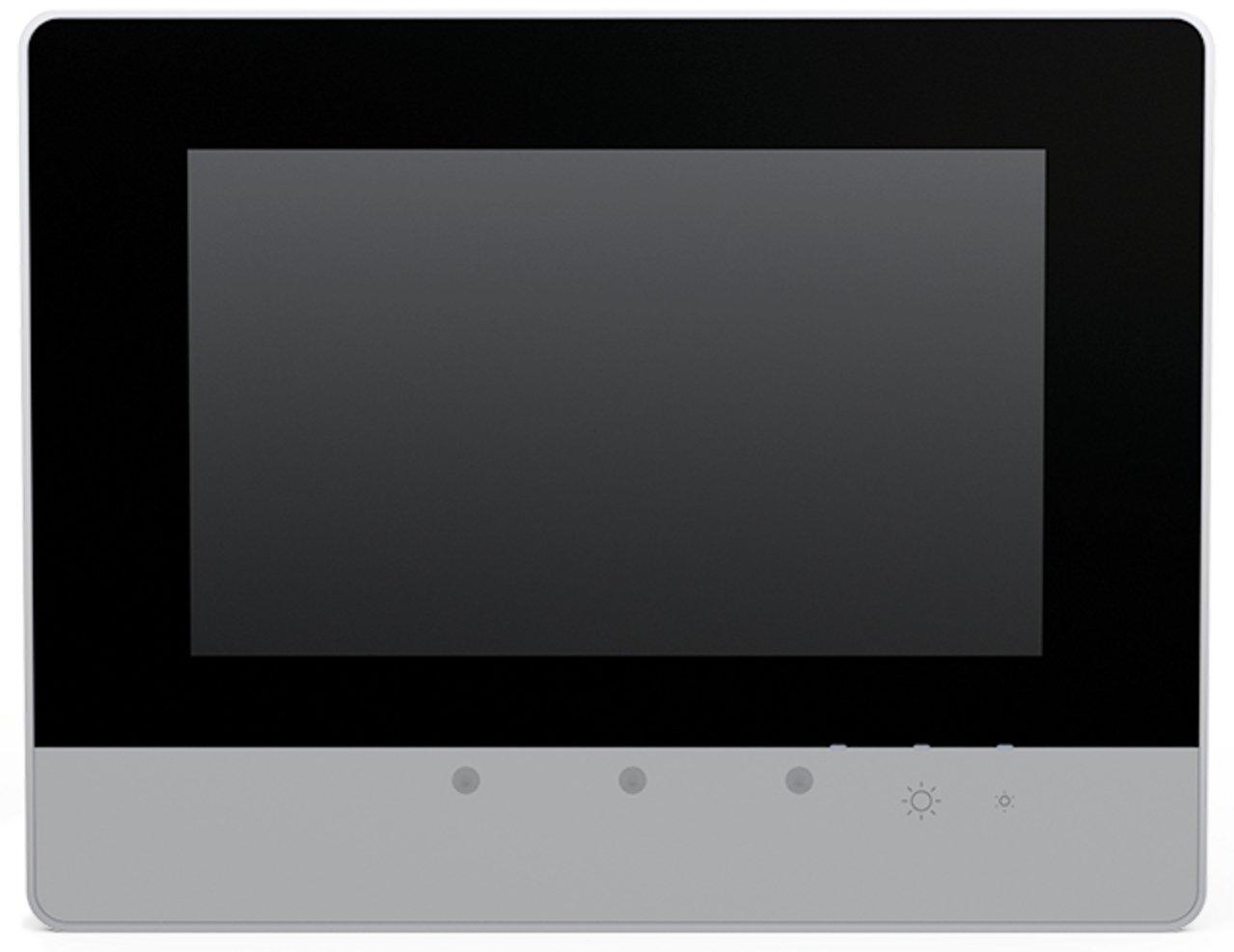

WAGO 762-4103 Standard Line
Part Number # 762-4103
SKU # 2375521
$1617.35 / Each
Wago 762-4103 Key Features
Brand: Wago
Part Number # 762-4103
SKU #2375521
Dimensions: 6.575 in H x 8.386 in W x 2.283 in D
Display Resolution: Resistive Touchscreen
Power Source: 8.6 W
Type: Horizontal
Viewing Area: 89 deg
Communication: Web browser (HTML5)
Connection technology: Web browser: 2 x RJ-45; 2 x USB 2.0 host (type A)
Controls: Resistive touch panel, two capacitive keys, proximity sensor
Country of origin: DE
Depth: 58 mm / 2.283 inch
Display: Resistive touchscreen
Display colors: 16 million colors
Display diagonal: 17.8 cm (7 Inches)
ETHERNET protocols: DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH
Height: 167 mm / 6.575 inch
Internal memory (flash): 4096 MB
Main memory (RAM): 2048 MB
Memory card type: MicroSD (max. 2 GB); microSDHC (max. 32 GB)
Mounting type: Clamping elements (included) or VESA mount (4 x M4x8)
Operating system: Real-time Linux (with RT-Preempt patch)
Panel cutout (W x H): (198 x 152) mm
Processor: ARM® Cortex™ A9
Protection type: IP65
Supply voltage: SELV DC 24 V (18 … 31.2 V); with reverse voltage protection
Weight: 982.000 g
Width: 213 mm / 8.386 inch
Manufacturer Name: WAGO Corporation
UNSPSC: 43211903
UPC: 04055143839389
$1617.35 / Each
- WAGO, 762-4103, Touch Panel, Horizontal, 8.6 W Power Source, Resistive Touchscreen Display Resolution, 89 deg Viewing Area, 6.575 in H x 8.386 in W x 2.283 in D Dimensions
762-4103 Item Features
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
762-4103 Standards
RoHS Compliant|IP65SKU #2375521Part Number #762-4103UNSPSC43211903UPC04055143839389
