Brand: Wago
762-5303/8000-002

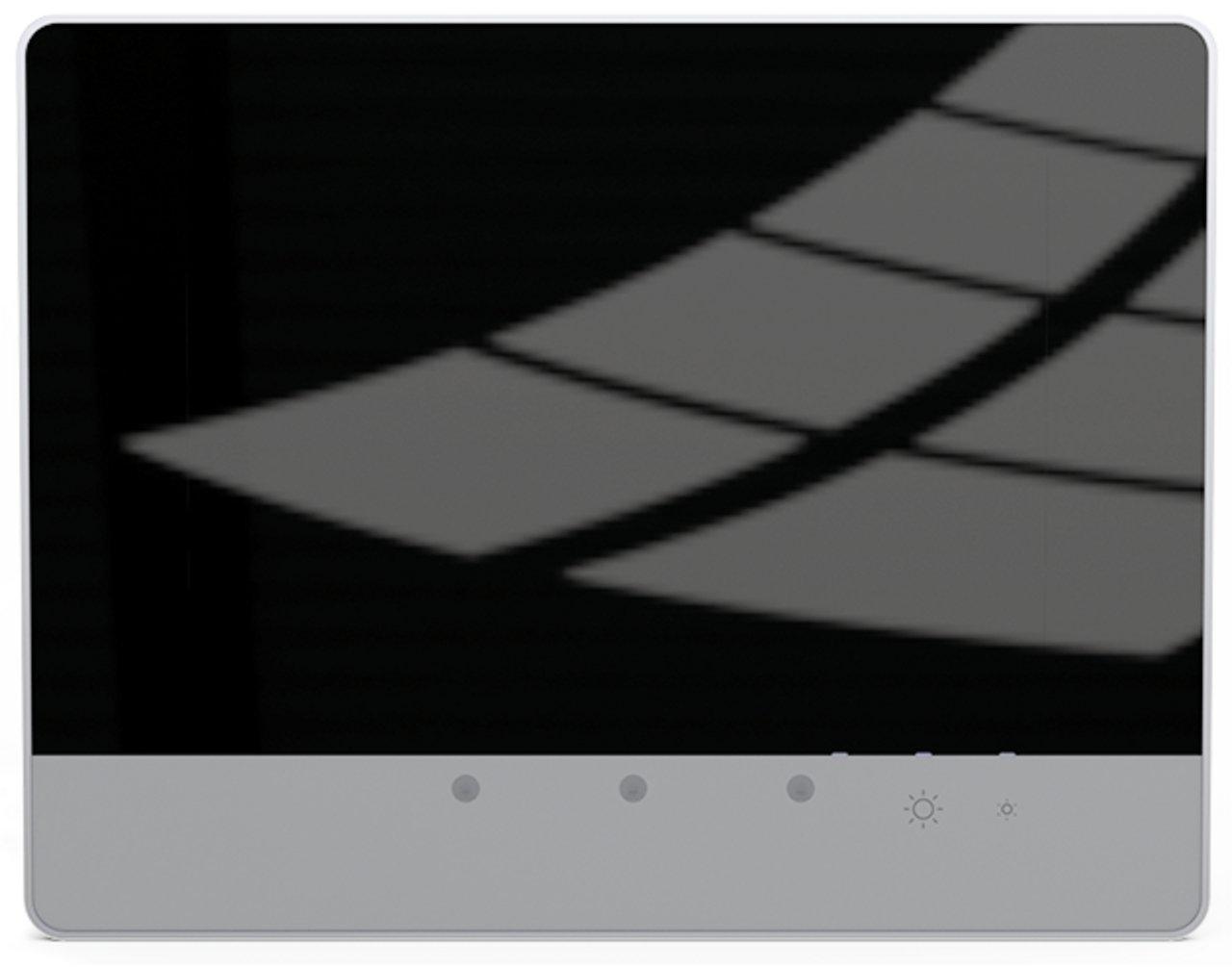

WAGO 762-5303/8000-002 Advanced Line
Part Number # 762-5303/8000-002
SKU # 2379629
$2879.02 / Each
Wago 762-5303/8000-002 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 762-5303/8000-002 |
| SKU #: | 2379629 |
| Dimensions: | 6.575 in H x 8.386 in W x 3.070 in D |
| Display Resolution: | Capacitive Touchscreen |
| Power Source: | 8.8 W |
| Type: | Horizontal |
| Viewing Area: | 89 deg |
| Communication: | EtherNet/IPTM Adapter (slave), library for e!RUNTIME || Modbus TCP Master/Slave || EtherCAT Master, requires an additional license || CANopen || RS-232 Serial Interface || RS-485 Serial Interface || MQTT |
| Connection technology: | Modbus TCP/UDP: 2 x RJ-45; EtherNet/IPTM: 2 x RJ-45; CANopen: 1 x D-sub 9 plug; Modbus UDP: 2 x RJ-45; RS-232 + RS-485 serial interface: 1 x D-sub 9 socket; USB: 2 x USB 2.0 host (type A) |
| Country of origin: | DE |
| Data memory: | 128 MB |
| Depth: | 78 mm / 3.070 inch |
| Display: | Multitouch glass front; Capacitive touchscreen with a glass surface |
| Display colors: | 16 million colors |
| Display diagonal: | 17.8 cm (7 Inches) |
| ETHERNET protocols: | DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH |
| Height: | 167 mm / 6.575 inch |
| Internal memory (flash): | 4096 MB |
| Main memory (RAM): | 2048 MB |
| Memory card type: | MicroSD (max. 2 GB); microSDHC (max. 32 GB) |
| Mounting type: | Clamping elements (included) or VESA mount (4 x M4x8) |
| Non-volatile software memory: | 128 kB |
| Operating system: | Real-time Linux (with RT-Preempt patch) |
| Panel cutout (W x H): | (198 x 152) mm |
| Processor: | ARM® Cortex™ A9 |
| Program memory: | 32 MB |
| Programming environment: | e!COCKPIT (based on CODESYS V3) |
| Protection type: | IP65 |
| Supply voltage: | SELV DC 24 V (18 … 31.2 V); with reverse voltage protection |
| Weight: | 1120.000 g |
| Width: | 213 mm / 8.386 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04055143839303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2879.02 / Each
Quantity:
- WAGO, 762-5303/8000-002, Touch Panel, Horizontal, 8.8 W Power Source, Capacitive Touchscreen Display Resolution, 89 deg Viewing Area, 6.575 in H x 8.386 in W x 3.070 in D Dimensions
762-5303/8000-002 Item Features
- 2 x ETHERNET port for connecting to field devices and the engineering tool
- 2 x USB port for optional connection of a USB stick, mouse or keyboard
- Audio interface for connecting a headphone or loudspeaker
- RS-232/485 interface for controlling field devices equipped with a serial interface
- 4 x digital input/output for reading/triggering digital signals
- Power-failure-proof storage component
762-5303/8000-002 Standards
RoHS Compliant|IP65SKU #2379629Part Number #762-5303/8000-002UNSPSC32151702UPC04055143839303
