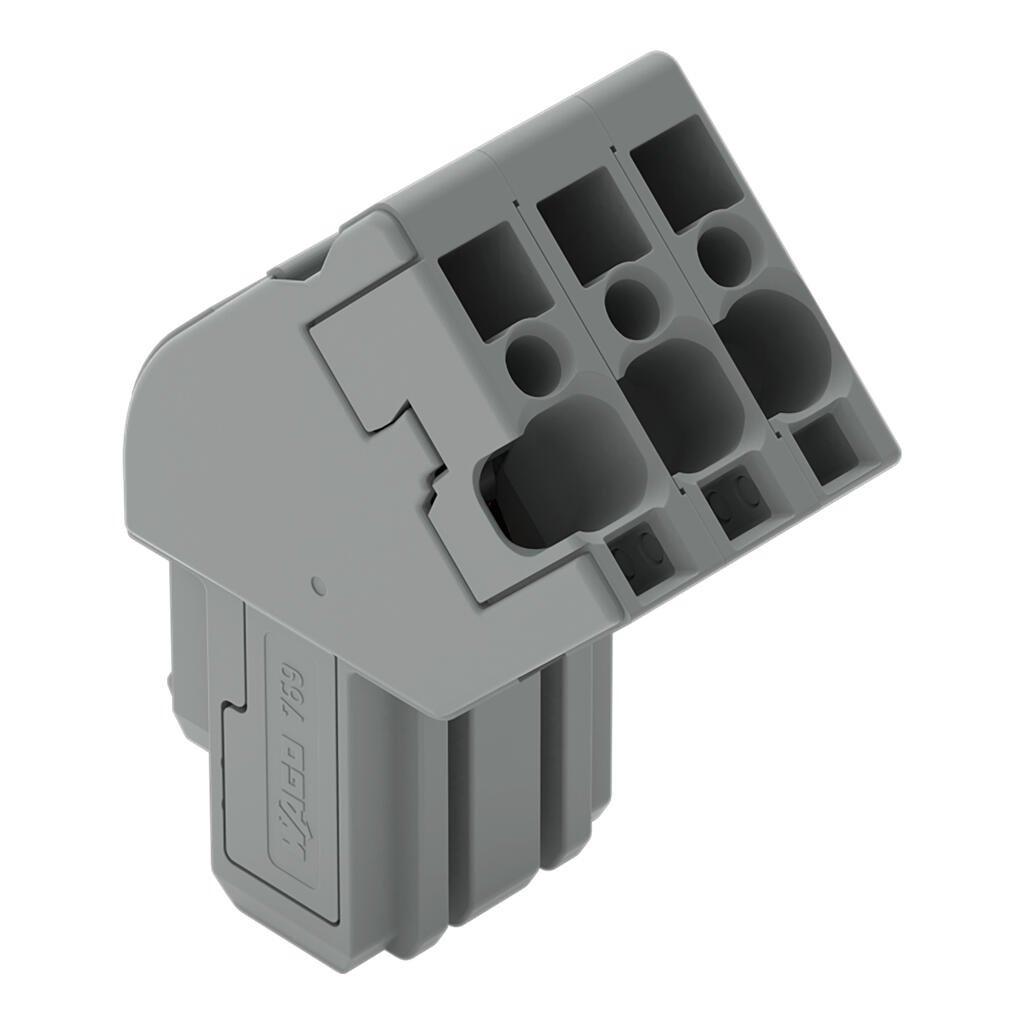

WAGO 769-103/022-000 1-conductor female plug
Part Number # 769-103/022-000
SKU # 2163279
$5.22 / Each
Wago 769-103/022-000 Key Features
Brand: Wago
Part Number # 769-103/022-000
SKU #2163279
Amperage Rating: 32 A
Dimensions: 1.461 in H x 0.591 in W x 1.043 in D
Number of Poles: 3
Temperature Rating (Degrees F): -35 to 85 deg C
Type: Operating Tool
Voltage Rating: 500 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 26.5 mm / 1.043 inch
Height: 37.1 mm / 1.461 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Module width: 5 mm / 0.197 inch
Nominal cross-section: 4 mm²
Rated current: 32 A
Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
Total number of connection points: 3
Weight: 7.500 g
Width: 15 mm / 0.591 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121469
UPC: 04044918547529
$5.22 / Each
- WAGO, 769-103/022-000, 1-Conductor Female Connector, Operating Tool, 500 V, 32 A, 3 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Clamp Connection, -35 to 85 deg C, Polyamide, Gray, 1.461 in H x 0.591 in W x 1.043 in D Dimensions
769-103/022-000 Standards
IEC/EN 61984|RoHS CompliantSKU #2163279Part Number #769-103/022-000UNSPSC39121469UPC04044918547529
