769-103

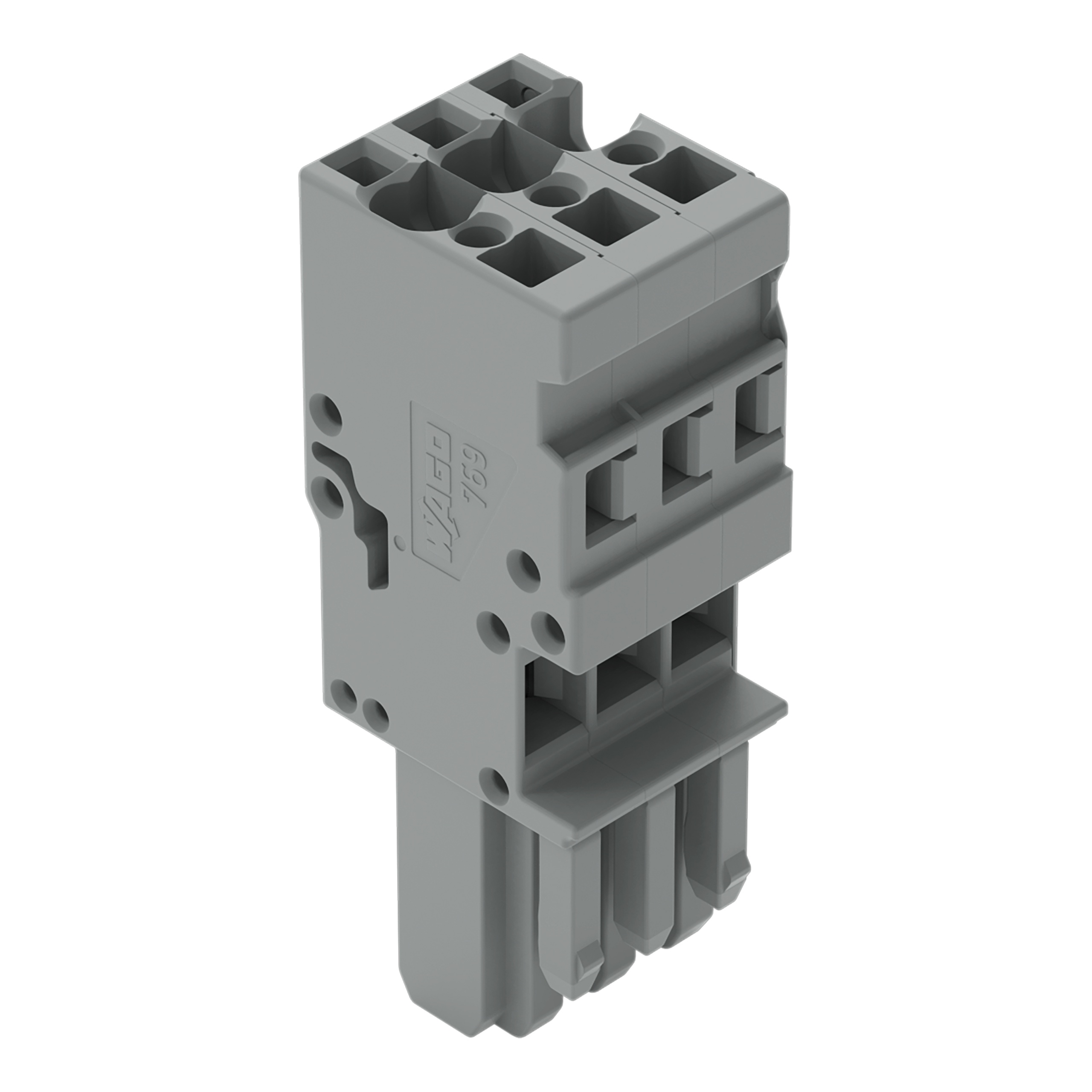

WAGO 769-103 1-conductor female plug
Part Number # 769-103
SKU # 2156935
$5.87 / Each
Typical price:$6.36 / Each
Wago 769-103 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-103 |
| SKU #: | 2156935 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 0.591 in W x 0.72 in D |
| Number of Poles: | 3 |
| Series: | 769 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to 100 deg C |
| Type: | 1-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 18.3 mm / 0.72 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Mounting type: | Free Hanging, Free Hanging/In-Line |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 3 |
| Weight: | 9.700 g |
| Width: | 15 mm / 0.591 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918471343 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5.87 / Each
Typical price:$6.36 / Each
Quantity:
WAGO 769-103 1-conductor female plug
Brand: Wago
Part Number: 769-103
Additional Description: WAGO-769-103 1-CONDUCTOR FEMALE PLUG; 4 MM ; 3-POLE; 4,00 MM ; GRAY 51128243
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 3-pole; coding finger; 4,00 mm²; gray
769-103 Standards
RoHS CompliantSKU #2156935Part Number #769-103UNSPSC39121469UPC04044918471343
