Brand: Wago

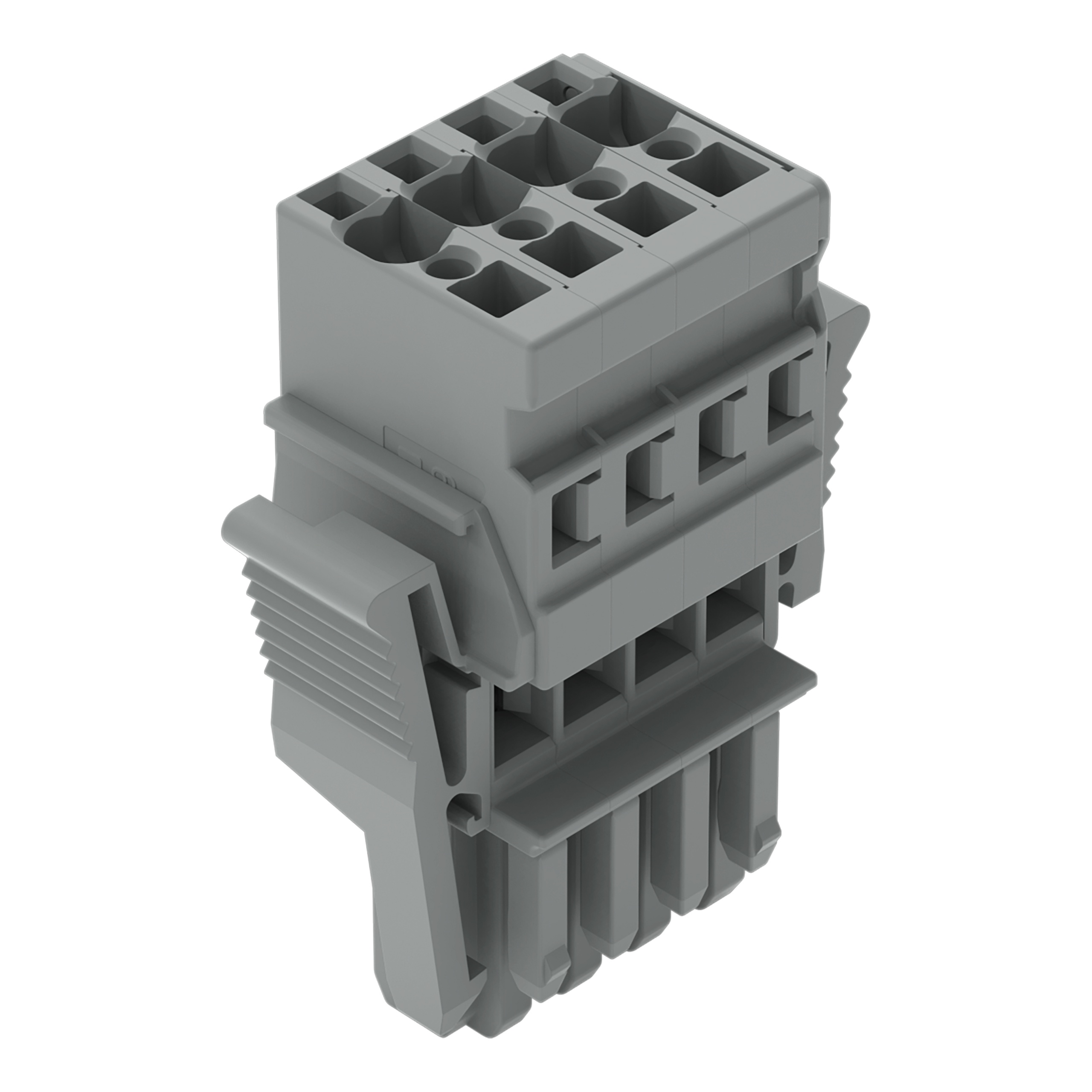

WAGO 769-104/021-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 769-104/021-000 1-conductor female plug
Brand: Wago
WAGO 769-104/021-000 1-conductor female plug
Part #:769-104/021-000
SKU #: 2294954
$7.21/EA
Key Features
Part #:769-104/021-000
SKU #: 2294954
Brand: Wago
Amperage Rating: 32 A
Dimensions: 1.78 in H x 1.402 in W x 0.72 in D
Number of Poles: 4
Series: 769
Spacing: 5 mm
$7.21/EA
Specifications
Brand: Wago
Amperage Rating: 32 A
Dimensions: 1.78 in H x 1.402 in W x 0.72 in D
Number of Poles: 4
Series: 769
Spacing: 5 mm
Temperature Rating (Degrees F): -60 to 100 deg C
Type: 1-Conductor
Voltage Rating: 500 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Connector (connection type): For conductor
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 18.3 mm / 0.72 inch
Height: 45.2 mm / 1.78 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Module width: 5 mm / 0.197 inch
Mounting type: Free Hanging/In-Line
Nominal cross-section: 4 mm²
Rated current: 32 A
Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
Total number of connection points: 4
Weight: 14.358 g
Width: 35.6 mm / 1.402 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121469
UPC: 04044918481274
WAGO 769-104/021-000 1-conductor female plug
Additional Description: WAGO-769-104/021-000 1-CONDUCTOR FEMALE PLUG; LOCKING LEVER; 4 MM; 4-POLE; 4,00 MM; GRAY 51129152 LEVER; 4 MM ; 4-POLE; 4,00 MM ; GRAY 51129152
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 4-pole; coding finger; Lateral locking levers; 4,00 mm²; gray
Item FeaturesRoHS Compliant
