Part Number # 769-108/021-000
SKU # 2265584
Image Disclaimers Message
769-108/021-000

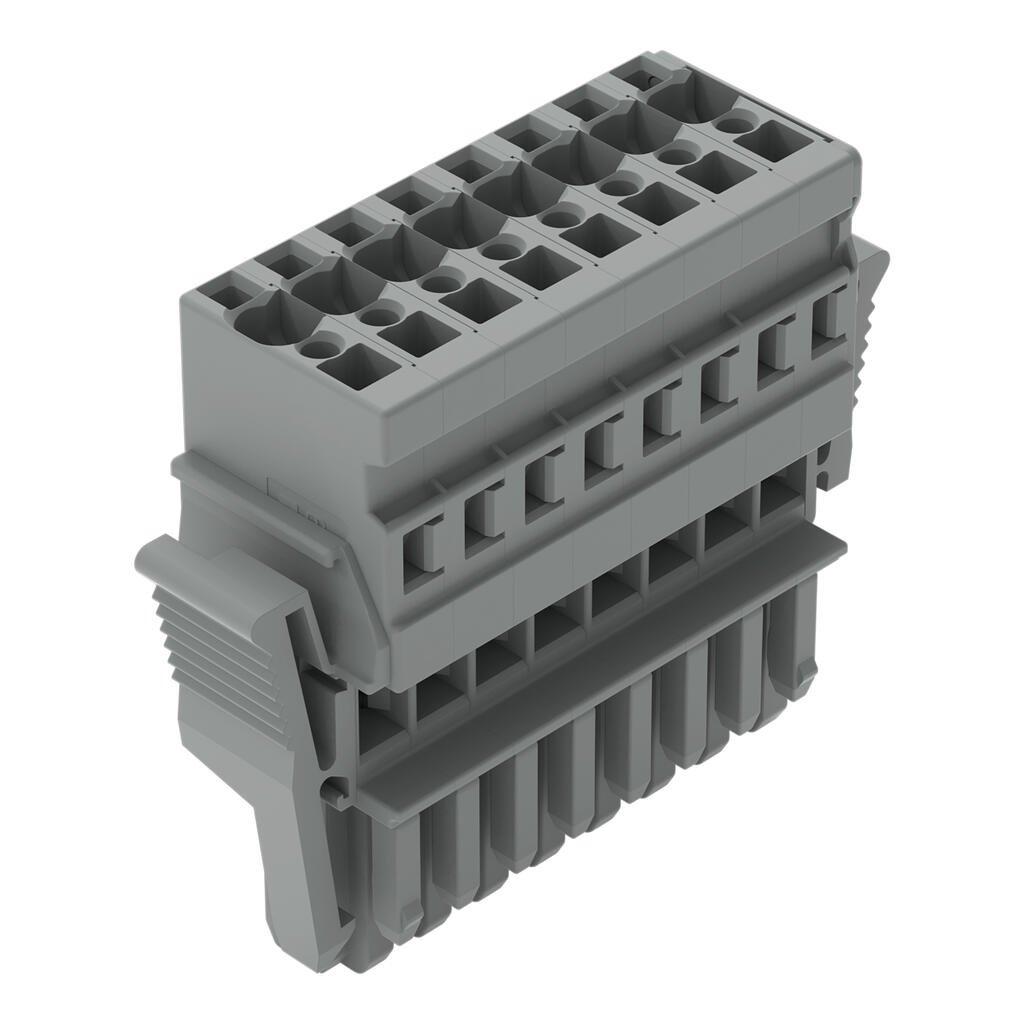

WAGO 769-108/021-000 1-conductor female plug
Part Number # 769-108/021-000
SKU # 2265584
$14.99 / Each
Typical price:$16.24 / Each
Wago 769-108/021-000 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-108/021-000 |
| SKU #: | 2265584 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 2.189 in W x 0.72 in D |
| Number of Poles: | 8 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 18.3 mm / 0.72 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 26.942 g |
| Width: | 55.6 mm / 2.189 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 43211903 |
| UPC: | 04044918482059 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.99 / Each
Typical price:$16.24 / Each
Quantity:
WAGO 769-108/021-000 1-conductor female plug
Brand: Wago
Part Number: 769-108/021-000
Additional Description: WAGO-769-0108/0021-0000 1-CONDUCTOR FEMALE PLUG; LOCKING LEVER; 4 MM ; 8-POLE; 4,00 MM ; GRAY 0769-0108/0021-0000 51129229
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 8-pole; coding finger; Lateral locking levers; 4,00 mm²; gray
769-108/021-000 Standards
IEC/EN 61984|RoHS CompliantSKU #2265584Part Number #769-108/021-000UNSPSC43211903UPC04044918482059
