Part Number # 769-108
SKU # 2234330
Image Disclaimers Message
769-108

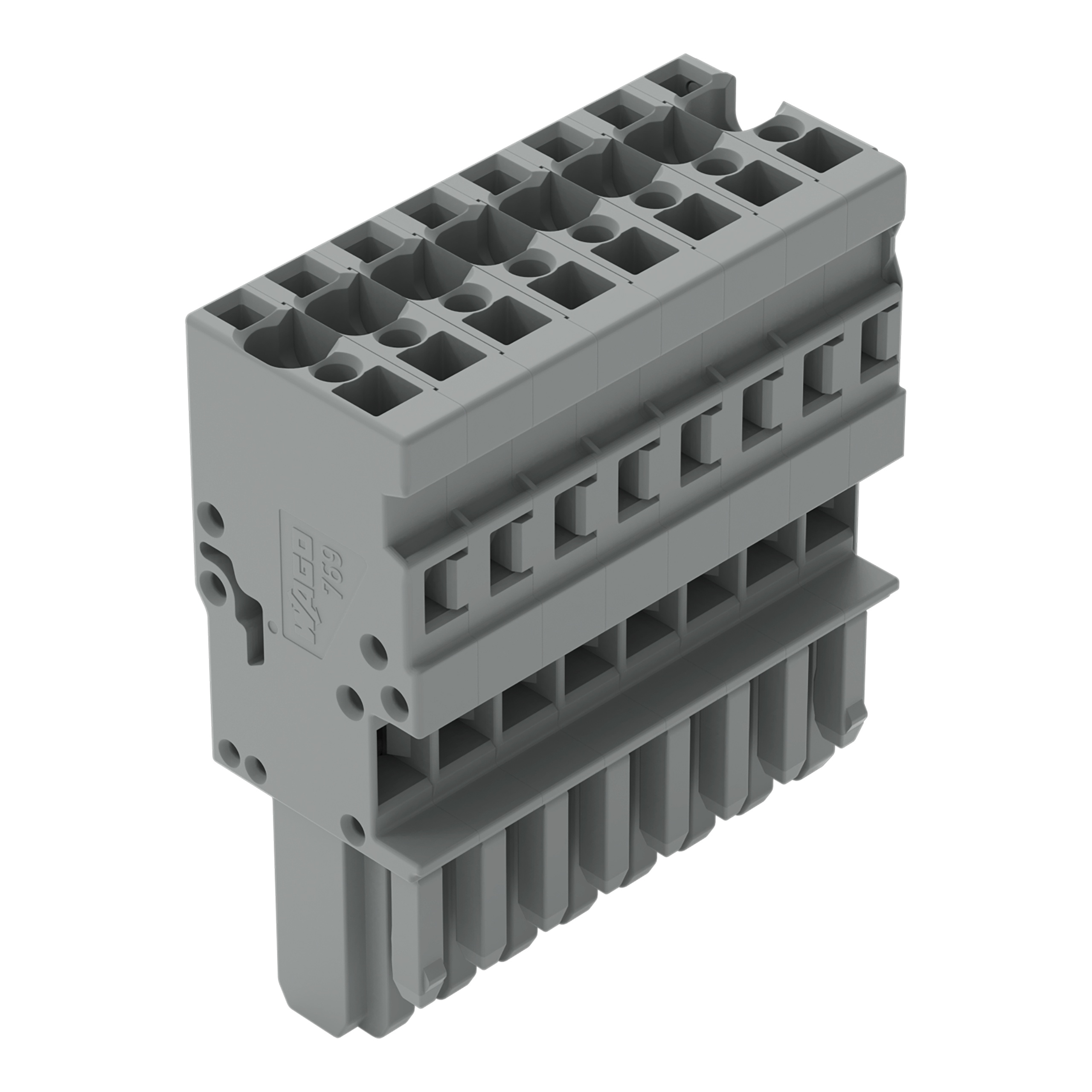

WAGO 769-108 1-conductor female plug
Part Number # 769-108
SKU # 2234330
$14.27 / Each
Typical price:$15.46 / Each
Wago 769-108 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-108 |
| SKU #: | 2234330 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 1.575 in W x 0.72 in D |
| Number of Poles: | 8 |
| Series: | 769 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to 105 deg C |
| Type: | 1-Conductor |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 18.3 mm / 0.72 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Mounting type: | Free Hanging, Free Hanging/In-Line |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 8 |
| Weight: | 27.321 g |
| Width: | 40 mm / 1.575 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918471619 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.27 / Each
Typical price:$15.46 / Each
Quantity:
- WAGO, 769-108, Female Plug, 1-Conductor, Series: 769, 500 V, 32 A, 8 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, 5 mm Spacing, Free Hanging Mounting, Clamp Connection, -60 to 105 deg C, Polyamide, Gray, 1.78 in H x 1.575 in W x 0.72 in D Dimensions
769-108 Standards
RoHS CompliantSKU #2234330Part Number #769-108UNSPSC39121469UPC04044918471619
