Brand: Wago

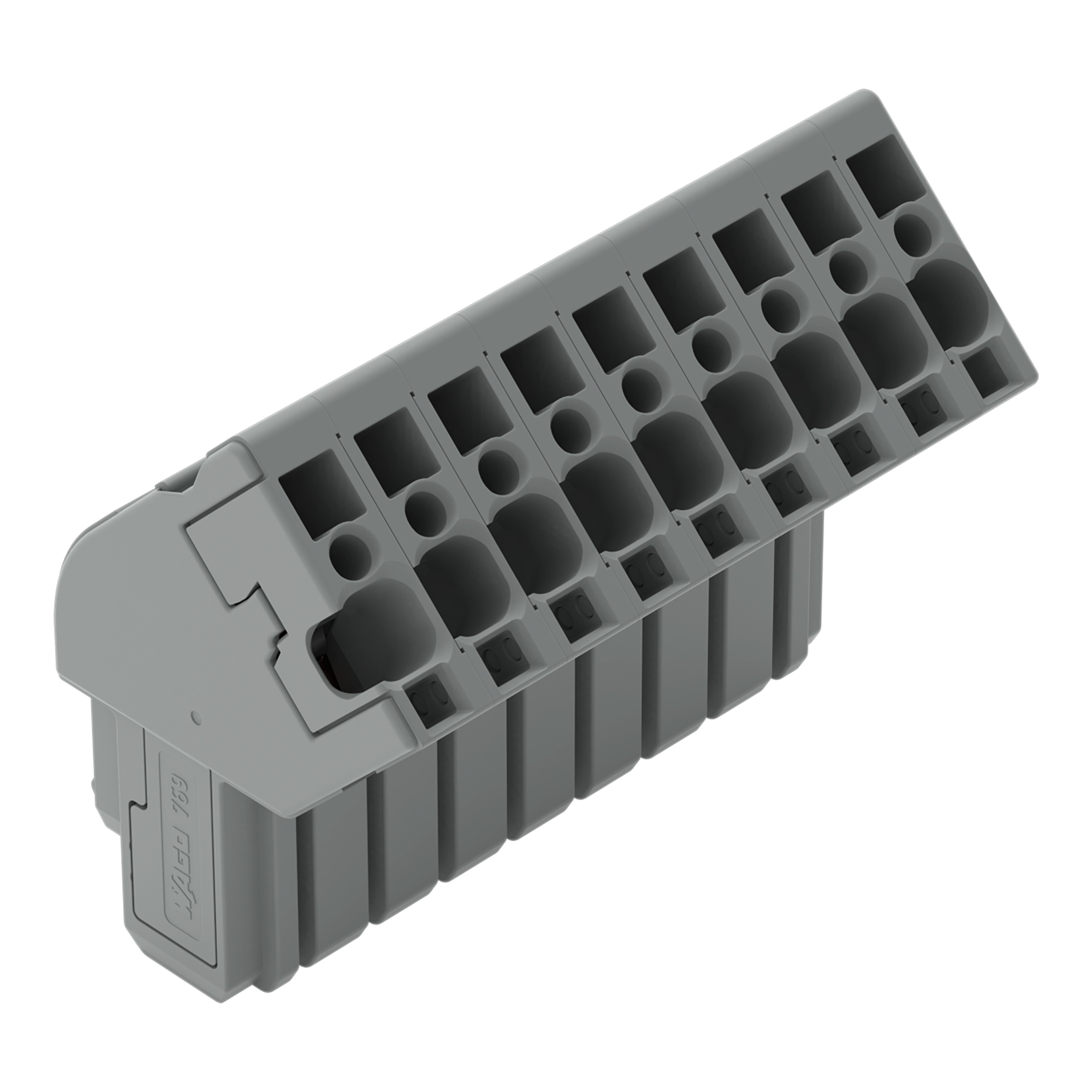

WAGO 769-109/022-000 1-conductor female plug
Image Disclaimers Message
Brand: Wago
WAGO 769-109/022-000 1-conductor female plug
Brand: Wago
WAGO 769-109/022-000 1-conductor female plug
Part #:769-109/022-000
SKU #: 2116231
$13.84/EA
Key Features
Part #:769-109/022-000
SKU #: 2116231
Brand: Wago
Amperage Rating: 32, 32 A
Dimensions: 1.61 in H x 1.772 in W x 1.043 in D
Number of Poles: 9
Type: Angled
Voltage Rating: 500, 500 VAC
$13.84/EA
- 5 kV rated impulse voltage
- Overvoltage category III/pollution 3 deg legend ratings
- Front-entry wire type
- 9 total number of connection points
- 1 total number of potentials
- CAGE CLAMP connection technology
- Copper connectable conductor materials
- 12 to 28 AWG solid/stranded conductor
- Operating tool actuation type
Specifications
Brand: Wago
Amperage Rating: 32, 32 A
Dimensions: 1.61 in H x 1.772 in W x 1.043 in D
Number of Poles: 9
Type: Angled
Voltage Rating: 500, 500 VAC
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connector (connection type): For conductor
Contact type (pluggable connector): Female connector/socket
Country of origin: DE
Depth: 26.5 mm / 1.043 inch
Height: 37.1 mm / 1.461 inch
Insulation material: Polyamide (PA66)
Module width: 5 mm / 0.197 inch
Nominal cross-section: 4 mm²
Rated current: 32 A
Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
Total number of connection points: 9
Weight: 23.820 g
Width: 45 mm / 1.772 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121469
UPC: 04044918547659
WAGO 769-109/022-000 1-conductor female plug
WAGO Plug Connector, Angled, 500 VAC, 32 A, 9 Pole, 0.31 to 0.35 in Wire Strip Length, Gray, 1.61 in H x 1.772 in W x 1.043 in D
Additional Description: WAGO-769-109/022-000 1-CONDUCTOR FEMALE PLUG; ANGLED; 4 MM; 9-POLE; 4,00 MM; GRAY 51133601 MM ; 9-POLE; 4,00 MM ; GRAY
Catalog Description: 1-conductor female connector, angled; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 9-pole; coding finger; 4,00 mm²; gray
Item Features
Item FeaturesRoHS Compliant
