Brand: Wago
769-112

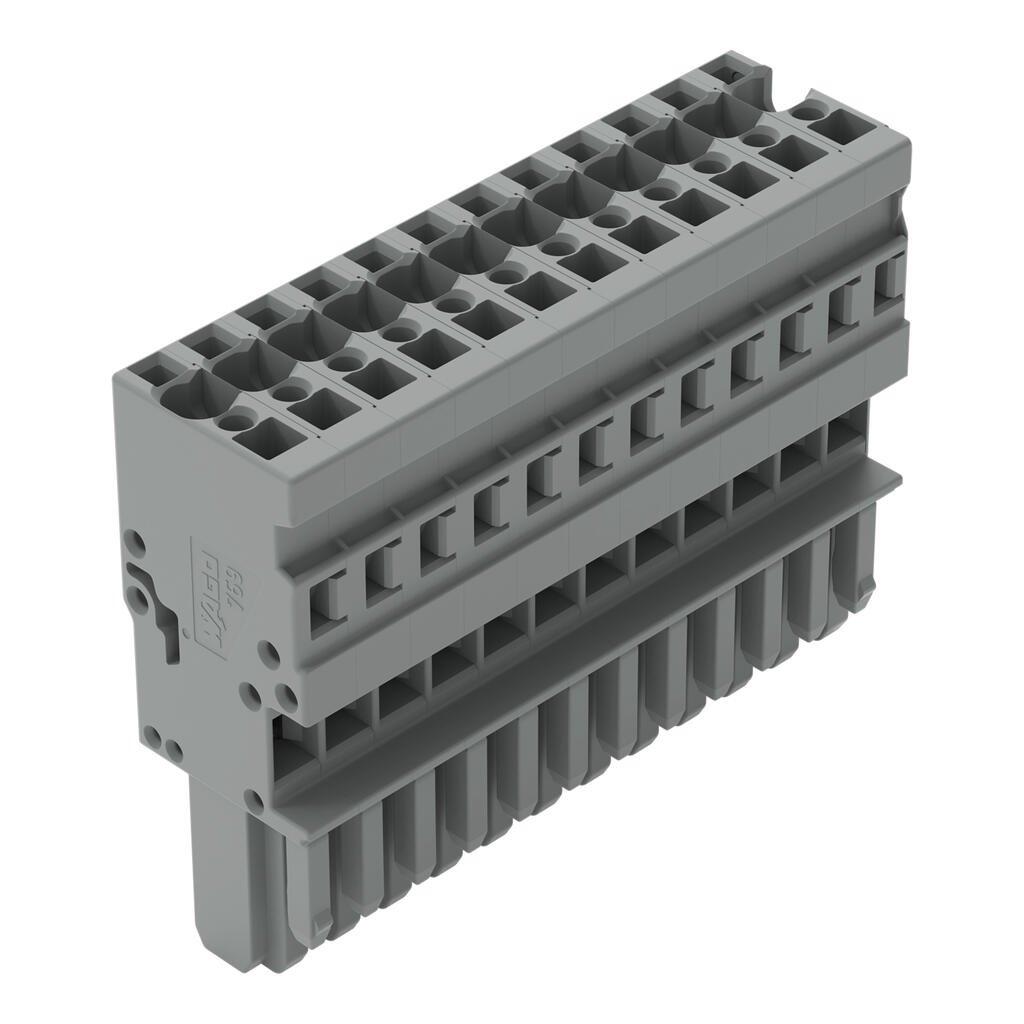

WAGO 769-112 1-conductor female plug
Part Number # 769-112
SKU # 2249926
$21.06 / Each
Typical price:$22.81 / Each
Wago 769-112 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-112 |
| SKU #: | 2249926 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 2.362 in W x 0.72 in D |
| Number of Poles: | 12 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 18.3 mm / 0.72 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 12 |
| Weight: | 38.776 g |
| Width: | 60 mm / 2.362 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918472012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.06 / Each
Typical price:$22.81 / Each
Quantity:
WAGO 769-112 1-conductor female plug
Brand: Wago
Part Number: 769-112
Additional Description: WAGO-769-112 1-CONDUCTOR FEMALE PLUG; 4 MM; 12-POLE; 4,00 MM; GRAY 51128303
Catalog Description: 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 12-pole; coding finger; 4,00 mm²; gray
769-112 Standards
IEC/EN 61984|RoHS CompliantSKU #2249926Part Number #769-112UNSPSC39121469UPC04044918472012
