Part Number # 769-122
SKU # 2225071
Image Disclaimers Message
Brand: Wago
769-122

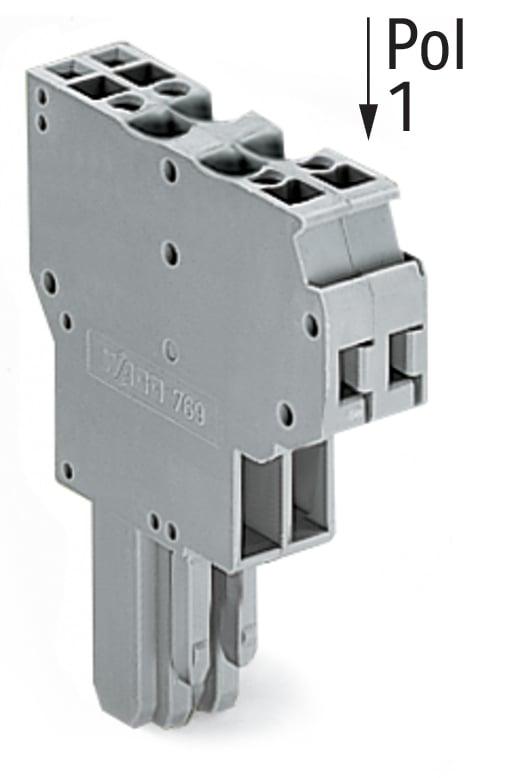

WAGO 769-122 2-conductor female connector
Part Number # 769-122
SKU # 2225071
$8.01 / Each
Typical price:$8.68 / Each
Wago 769-122 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-122 |
| SKU #: | 2225071 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 0.394 in W x 1.413 in D |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 85 deg C |
| Type: | Operating Tool |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Color: | Gray |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Clamp |
| Connector (connection type): | For conductor |
| Country of origin: | PL |
| Depth: | 35.9 mm / 1.413 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide |
| Module width: | 5 mm / 0.197 inch |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 4 |
| Weight: | 10.450 g |
| Width: | 10 mm / 0.394 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04044918473880 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.01 / Each
Typical price:$8.68 / Each
Quantity:
WAGO 769-122 2-conductor female connector
Brand: Wago
Part Number: 769-122
Additional Description: WAGO-769-122 2-CONDUCTOR FEMALE CONNECTOR; 4 MM ; 2-POLE; 4,00 MM ; GRAY 51128474
Catalog Description: 2-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 2-pole; coding finger; 4,00 mm²; gray
769-122 Standards
IEC/EN 61984|RoHS CompliantSKU #2225071Part Number #769-122UNSPSC39121469UPC04044918473880
