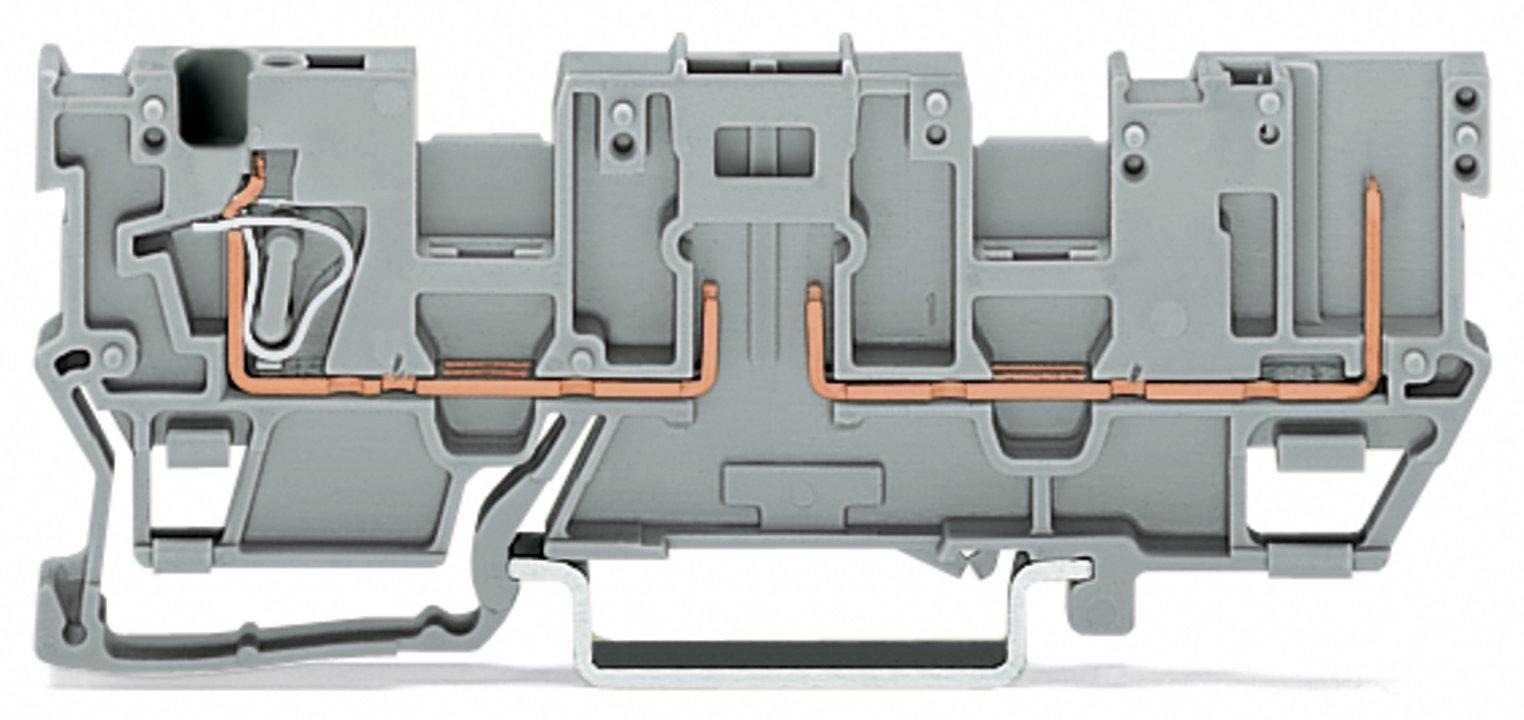

WAGO 769-181 1-conductor/1-pin carrier terminal block
Part Number # 769-181
SKU # 2252931
$3.00 / Each
Wago 769-181 Key Features
Brand: Wago
Part Number # 769-181
SKU #2252931
Amperage Rating: 16 A
Dimensions: 3.445 in H x 0.197 in W x 1.122 in D
Number of Poles: 2
Type: Operating Tool
Voltage Rating: 400 V
Wire Size: 28 to 12 AWG
Actuation type: Operating tool
Color: Gray
Connection technology: CAGE CLAMP®
Connection type: Clamp
Country of origin: DE
Depth: 87.5 mm / 3.445 inch
Insulation material: Polyamide (PA66)
Material: Polyamide
Mounting type: 35 mm DIN Rail, DIN-35 rail
Nominal cross-section: 4 mm²
Rated current: 16 A
Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
Total number of connection points: 1
Weight: 7.970 g
Width: 5 mm / 0.197 inch
Wiring type: Front-entry wiring
Manufacturer Name: WAGO Corporation
UNSPSC: 39121469
UPC: 04044918934725
$3.00 / Each
- WAGO, 769-181, Carrier Terminal Block, Operating Tool, 400 V, 16 A, 2 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, 35 mm DIN Rail Mounting, Clamp Connection, Polyamide, Gray, 3.445 in H x 0.197 in W x 1.122 in D Dimensions
769-181 Standards
RoHS CompliantSKU #2252931Part Number #769-181UNSPSC39121469UPC04044918934725
