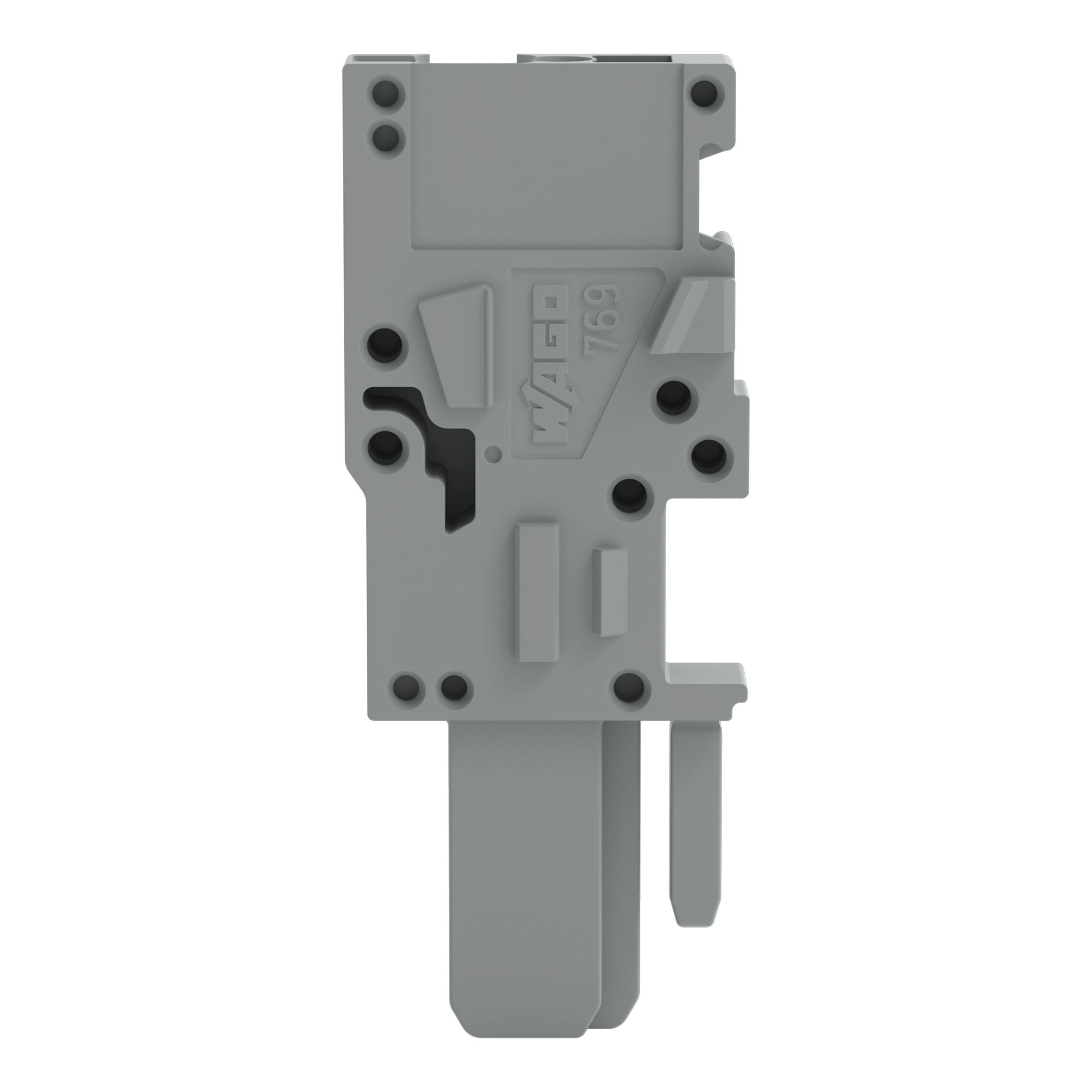

WAGO 769-502 Center module for 1-conductor female connector
Part Number # 769-502
SKU # 2204946
Wago 769-502 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 769-502 |
| SKU #: | 2204946 |
| Amperage Rating: | 32 A |
| Dimensions: | 1.78 in H x 0.19 in W x 0.72 in D |
| Number of Poles: | 1 |
| Series: | 769 |
| Spacing: | 5 mm |
| Temperature Rating (Degrees F): | -60 to +105 deg C |
| Terminal Type: | Cage |
| Type: | Modular |
| Wire Size: | 28 to 12 AWG |
| Actuation type: | Operating tool |
| Connection technology: | CAGE CLAMP® |
| Connection type: | Female Socket |
| Connector (connection type): | For conductor |
| Country of origin: | DE |
| Depth: | 18.3 mm / 0.72 inch |
| Height: | 45.2 mm / 1.78 inch |
| Insulation material: | Polyamide (PA66) |
| Material: | Polyamide (PA66) |
| Module width: | 5 mm / 0.197 inch |
| Mounting type: | DIN Rail |
| Nominal cross-section: | 4 mm² |
| Rated current: | 32 A |
| Solid conductor: | 0.08 … 4 mm² / 28 … 12 AWG |
| Total number of connection points: | 1 |
| Weight: | 3.146 g |
| Width: | 5 mm / 0.197 inch |
| Wiring type: | Front-entry wiring |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 39121469 |
| UPC: | 04017332331425 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
WAGO 769-502 Center module for 1-conductor female connector
Brand: Wago
Part Number: 769-502
WAGO, 769-502, Center Module, Modular, Series: 769, 500 V, 32 A, 6 kV Power, 1 Pole, 28 to 12 AWG Wire, 0.31 to 0.35 in Wire Strip Length, Cage Terminal, 5 mm Spacing, DIN Rail Mounting, Female Socket Connection, -60 to +105 deg C, Polyamide (PA66), Gray, 1.78 in H x 0.19 in W x 0.72 in D Dimensions
Additional Description: WAGO-769-502 CENTER MODULE FOR 1-CONDUCTOR FEMALE CONNECTOR; 4 MM ; 1-POLE; 4,00 MM ; GRAY ENDPLAT 07690502
Catalog Description: Center module for 1-conductor female connector; CAGE CLAMP®; 4 mm²; Pin spacing 5 mm; 1-pole; coding finger; 4,00 mm²; gray
769-502 Item Features
- One base module with an integrated end plate
- Up to 13 center modules (corresponding to a 15-pole female plug equal to maximum pole number)
- One end module
769-502 Standards
